Manual Battery Pack Welding Machine 5000A Inverter Spot Welder for 21700 Cell

Brand Name:	XWELL
Model Number:	MD-MND6000
MOQ:	1 Set
Price:	USD 3200-6800 / Set
Packaging Details:	Seaworthy plywood case with shock proof foam for welder and table
Payment Terms:	T/T,L/C,Western Union,Trade Assurance

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ISO 9001:2015

Model:

MD-MND5000

Welding Battery:

18650, 26650, 21700

Welding Material:

Nickel, Nickel Plated Steel

Welding Thickness:

0.10-0.30mm

Supply:

3 Phase AC380V / 50Hz

Welder Weight:

Welder Size:

280 X 340 X 480 Mm

Surface Material:

Tempered Glass

Welding Trigger:

By Pedal

Head Movement Power:

By Pneumatic

Air Pressure:

0.3-0.6 MPa

Table Size:

800 X 600 Mm

Total Size:

800 X 600 X 1220 Mm

Total Weight:

Supply Ability:

300 Sets per Month

Highlight:

5000A inverter spot welder

manual battery pack welding machine

21700 cell spot welder

Product Description

Manual Battery Pack Welding Machine

The MD-MND5000 is a 6000A inverter spot welding machine built for high quality lithium battery pack assembly. It is suitable for 21700 and 18650 battery packs welding, such as Power tool, e-scooter and energy storage battery packs. The induction load voltage feedback mode keeps the welding voltage constant, so every spot is consistent and reliable.

Key Features

Constant voltage feedback control - induction load voltage feedback keeps welding voltage stable for high quality joints.
Pre Heat and Main Heat modes - preheating before welding ensures stable, repeatable weld quality.
Short welding time - maintains energy density, reducing base metal deformation and discoloration.
Easy current switching - from low current to high current for precision welding tasks.
Weld quality check - set upper and lower current limits to simply judge whether the weld is good.
Adaptive current - welding current increases with welding time to guarantee the welding result.

Technical Parameters

Welder Model	5000A Inverter Spot Welder
Max Output Short Current	5000A
Welding Battery	18650, 26650, 21700
Welding Material	Nickel, nickel plated steel
Welding Thickness	0.10-0.30mm
Supply	3 phase AC380V / 50Hz
Welder Weight	42kg
Welder Size	280 x 340 x 480 mm
Surface Material	Tempered glass
Welding Trigger	By pedal
Head Movement Power	By pneumatic
Air Pressure	0.3-0.6 MPa
Table Size	800 x 600 mm
Total Size	800 x 600 x 1220 mm
Total Weight	63kg

Applications

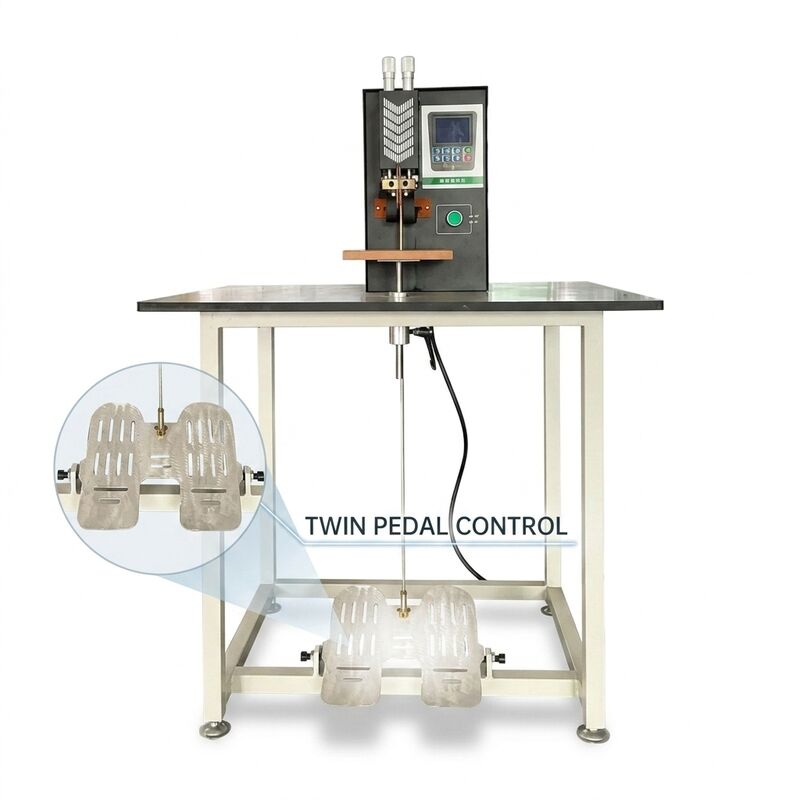

The MD-MND6000 is widely used for Power tool, e-scooter and energy storage battery packs. Its tempered glass table, pedal triggered, pneumatic head design supports fast, repeatable spot welding of nickel and nickel plated steel strips.

Packing and Shipping

Each unit is packed in a seaworthy plywood case with shock proof foam to protect the welder and table during transport. We ship worldwide by sea, air or express.
