100Ah Prismatic Battery Cell End Plate 162x100x20mm 1.2mm SPCC Electrophoretic Coated

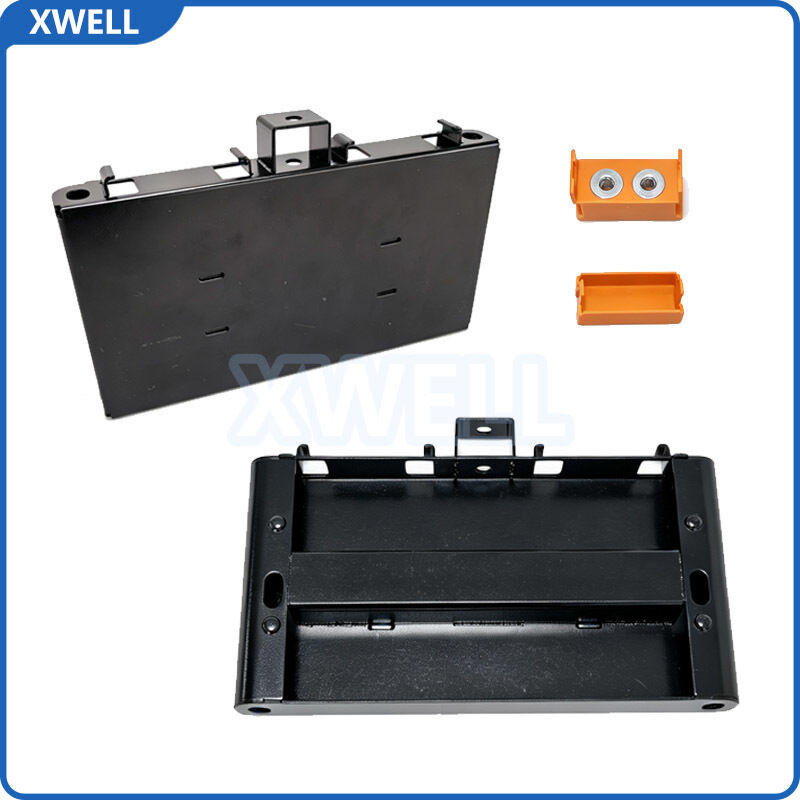

We supply the 100Ah sheet metal end plate measuring 162mm width x 100mm height x 20mm thickness, precision formed from 1.2mm SPCC cold-rolled steel with a tensile strength of no less than 240 MPa. Each plate receives a full-surface electrophoretic coating for uniform anti-corrosion protection. Designed as a structural compression plate for 100Ah and similarly sized prismatic lithium battery cells, it is widely used in battery pack assembly and can be delivered together with matching terminals.

1. One-piece sheet metal forming with crack-free edges at bending and drawing areas, delivering stable structural strength.
2. Material thickness at formed areas is retained at no less than 90% of the original 1.2mm SPCC sheet.
3. SPCC cold-rolled steel with tensile strength of 240 MPa or higher for reliable cell compression support.
4. Full-surface electrophoretic coating ensures even coverage and strong corrosion resistance.
5. Precise dimensions of 162 x 100 x 20mm for a secure fit with 100Ah prismatic cells.
6. Matching terminals available to complete your battery pack assembly in one order.

Specifically engineered for prismatic lithium battery pack assembly, the 100Ah end plate is suitable for:

1. 100Ah prismatic lithium battery cells and similar footprint cells.
2. Battery modules and packs for energy storage systems (ESS).
3. Power battery packs for electric vehicles and light electric vehicles.
4. Home energy storage and telecom backup battery packs.
5. Any pack build requiring reliable cell compression and structural support.

1. Manufactured from certified 1.2mm SPCC steel with a verified tensile strength of at least 240 MPa.
2. Full electrophoretic coating ensures uniform protection and extends service life in humid environments.
3. Strict forming control keeps edges crack-free and preserves at least 90% of the original material thickness.
4. Size and terminal options customizable to match your specific cell and pack design.
5. Low minimum order quantity with sample support and fast delivery for battery pack projects.
