XWELL XW-5V100A32CH Power Failure Protection Battery Formation Capacity Grading Machine

XWELL XW-5V100A32CH Power Failure Protection Battery Formation Capacity Grading Machine

Brand Name:	XWELL
Model Number:	XW-5V100A32CH
MOQ:	1 Set
Price:	USD 6,200-13,500 / Set
Packaging Details:	Plywood case with shock-proof foam, export-grade packaging
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ISO 9001:2015

Model:

XW-5V100A32CH

Equipment Type:

Battery Formation And Capacity Grading Machine

Number Of Channels:

32 Channels

Battery Type:

Prismatic Cell

Equipment Size (L X W X H):

900 X 950 X 1840mm

Fixture Form:

Four-wire Method Fixture

Fixture Distance:

112mm

Support Battery Length:

65-370mm

Support Battery Thickness:

16-103mm

Support Battery Height:

90-250mm

Support P/N Distance:

40-300mm

Working Power Supply:

3-phase 5-wire AC380V ±10%, 50Hz

Working Power:

≤23kW

Working Environment:

Temperature 0-40°C, Relative Humidity ≤80%

Cooling Method:

Natural Air Intake, Upward Exhaust

Voltage Measurement Range:

0-5V

Voltage Resolution:

0.1mV

Constant Voltage Range:

2.0-4.5V

Voltage Accuracy:

±(0.5‰ Reading + 0.5‰ Full Scale)

Current Accuracy:

±(0.5‰ Reading + 0.5‰ Full Scale)

Charge / Discharge Current:

5V 100A

Control Mode:

Software-installed Computer, Whole Cabinet Control

Communication Method:

RS485, Baudrate 57600

Process Setting:

Up To 32 Steps And 256 Cycles

Charging Mode:

Constant Current / Voltage / Current & Voltage

Charging Cut-off Conditions:

Voltage / Current / Time / Capacity

Discharge Mode:

Constant Current / Power / Resistance

Discharge Cut-off Conditions:

Voltage / Time / Capacity

Protection Function:

Over/Under Voltage, Over/Under Current, Over Capacity, Power Failure Protection, Data Breakpoint Recovery

Time Range:

0-3000 Minutes

Time Accuracy:

≤ ±1‰

Sampling Inspection Cycle:

1-60s

Battery Grading:

By Capacity, Time, Open Circuit Voltage, Discharge Platform

Data Processing:

Record Voltage/Current/Time/Capacity; Auto-calculate Current Ratio, Capacity Loss, Discharge Efficiency, Average & Median Voltage; Graphs; Text/EXCEL/WORD/MDB Export

Supply Ability:

200 Sets per Month

Highlight:

XWELL battery grading machine

,

power failure protection grading machine

,

battery formation capacity tester

Product Description

XWELL XW-5V100A32CH Power Failure Protection Battery Formation Capacity Grading Machine

The XW-5V100A32CH includes comprehensive protection for over/under voltage, over/under current and over capacity. In the event of a power failure, its data breakpoint recovery feature resumes grading without losing process data, protecting both cells and production records.

Key Features

32-channel prismatic cell formation and capacity grading in one cabinet
5V 100A per channel with 0.1mV voltage resolution
Four-wire method fixture for accurate voltage and current sampling
Supports prismatic cells 65-370mm long and 16-103mm thick
Programmable process: up to 32 steps and 256 cycles
Multiple charge and discharge modes with flexible cut-off conditions
Comprehensive protection: over/under voltage, over/under current, over capacity
Power failure protection with data breakpoint recovery
Automatic grading by capacity, time, open circuit voltage and discharge platform
Data export to Text, EXCEL, WORD or MDB database format
Power failure protection with data breakpoint recovery for safe operation

Technical Parameters

Model	XW-5V100A32CH
Equipment Type	Battery Formation and Capacity Grading Machine
Number of Channels	32 Channels
Battery Type	Prismatic Cell
Equipment Size (L x W x H)	900 x 950 x 1840mm
Fixture Form	Four-wire Method Fixture
Fixture Distance	112mm
Support Battery Length	65-370mm
Support Battery Thickness	16-103mm
Support Battery Height	90-250mm
Support P/N Distance	40-300mm
Working Power Supply	3-phase 5-wire AC380V ±10%, 50Hz
Working Power	≤23kW
Working Environment	Temperature 0-40°C, Relative Humidity ≤80%
Cooling Method	Natural Air Intake, Upward Exhaust
Voltage Measurement Range	0-5V
Voltage Resolution	0.1mV
Constant Voltage Range	2.0-4.5V
Voltage Accuracy	±(0.5‰ Reading + 0.5‰ Full Scale)
Current Accuracy	±(0.5‰ Reading + 0.5‰ Full Scale)
Charge / Discharge Current	5V 100A
Control Mode	Software-installed Computer, Whole Cabinet Control
Communication Method	RS485, Baudrate 57600
Process Setting	Up to 32 Steps and 256 Cycles
Charging Mode	Constant Current / Voltage / Current & Voltage
Charging Cut-off Conditions	Voltage / Current / Time / Capacity
Discharge Mode	Constant Current / Power / Resistance
Discharge Cut-off Conditions	Voltage / Time / Capacity
Protection Function	Over/Under Voltage, Over/Under Current, Over Capacity, Power Failure Protection, Data Breakpoint Recovery
Time Range	0-3000 Minutes
Time Accuracy	≤ ±1‰
Sampling Inspection Cycle	1-60s
Battery Grading	By Capacity, Time, Open Circuit Voltage, Discharge Platform
Data Processing	Record Voltage/Current/Time/Capacity; Auto-calculate Current Ratio, Capacity Loss, Discharge Efficiency, Average & Median Voltage; Graphs; Text/EXCEL/WORD/MDB Export

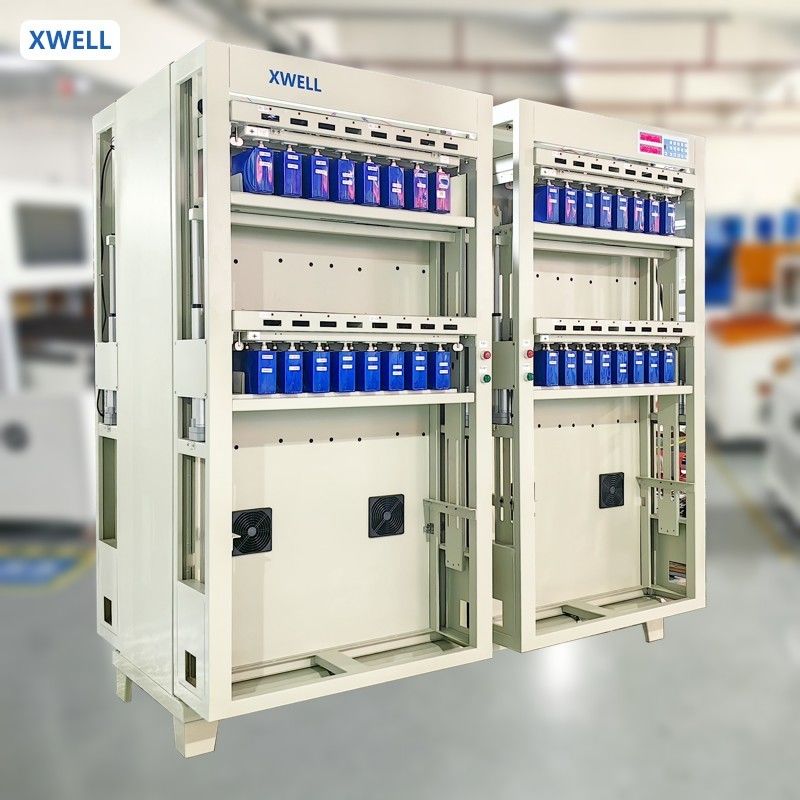

XWELL XW-5V100A32CH prismatic battery formation and capacity grading machine, engineered for accurate and efficient battery production.
