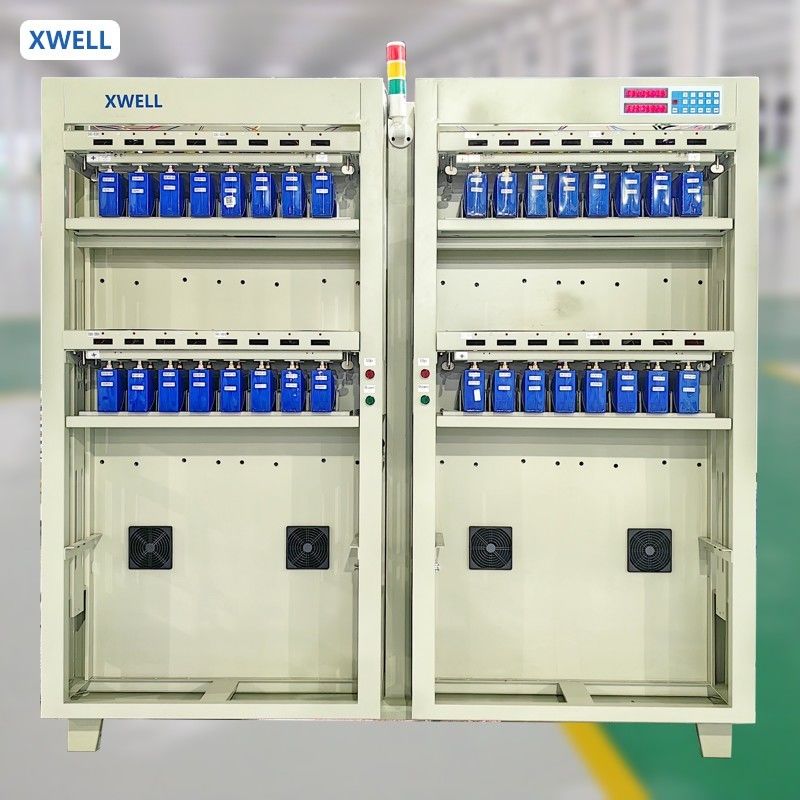

XWELL XW-5V100A32CH High Precision Prismatic Battery Formation and Capacity Grading Machine

Brand Name:	XWELL
Model Number:	XW-5V100A32CH
MOQ:	1 Set
Price:	USD 6,500-14,000 / Set
Packaging Details:	Plywood case with shock-proof foam, export-grade packaging
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ISO 9001:2015

Model:

XW-5V100A32CH

Equipment Type:

Battery Formation And Capacity Grading Machine

Number Of Channels:

32 Channels

Battery Type:

Prismatic Cell

Equipment Size (L X W X H):

900 X 950 X 1840mm

Fixture Form:

Four-wire Method Fixture

Fixture Distance:

112mm

Support Battery Length:

65-370mm

Support Battery Thickness:

16-103mm

Support Battery Height:

90-250mm

Support P/N Distance:

40-300mm

Working Power Supply:

3-phase 5-wire AC380V ±10%, 50Hz

Working Power:

≤23kW

Working Environment:

Temperature 0-40°C, Relative Humidity ≤80%

Cooling Method:

Natural Air Intake, Upward Exhaust

Voltage Measurement Range:

Voltage Resolution:

0.1mV

Constant Voltage Range:

2.0-4.5V

Voltage Accuracy:

±(0.5‰ Reading + 0.5‰ Full Scale)

Current Accuracy:

±(0.5‰ Reading + 0.5‰ Full Scale)

Charge / Discharge Current:

5V 100A

Control Mode:

Software-installed Computer, Whole Cabinet Control

Communication Method:

RS485, Baudrate 57600

Process Setting:

Up To 32 Steps And 256 Cycles

Charging Mode:

Constant Current / Voltage / Current & Voltage

Charging Cut-off Conditions:

Voltage / Current / Time / Capacity

Discharge Mode:

Constant Current / Power / Resistance

Discharge Cut-off Conditions:

Voltage / Time / Capacity

Protection Function:

Over/Under Voltage, Over/Under Current, Over Capacity, Power Failure Protection, Data Breakpoint Recovery

Time Range:

0-3000 Minutes

Time Accuracy:

≤ ±1‰

Sampling Inspection Cycle:

1-60s

Battery Grading:

By Capacity, Time, Open Circuit Voltage, Discharge Platform

Data Processing:

Record Voltage/Current/Time/Capacity; Auto-calculate Current Ratio, Capacity Loss, Discharge Efficiency, Average & Median Voltage; Graphs; Text/EXCEL/WORD/MDB Export

Supply Ability:

200 Sets per Month

Highlight:

High precision prismatic battery grading machine

Battery formation and capacity grading machine

XWELL prismatic battery testing machine
