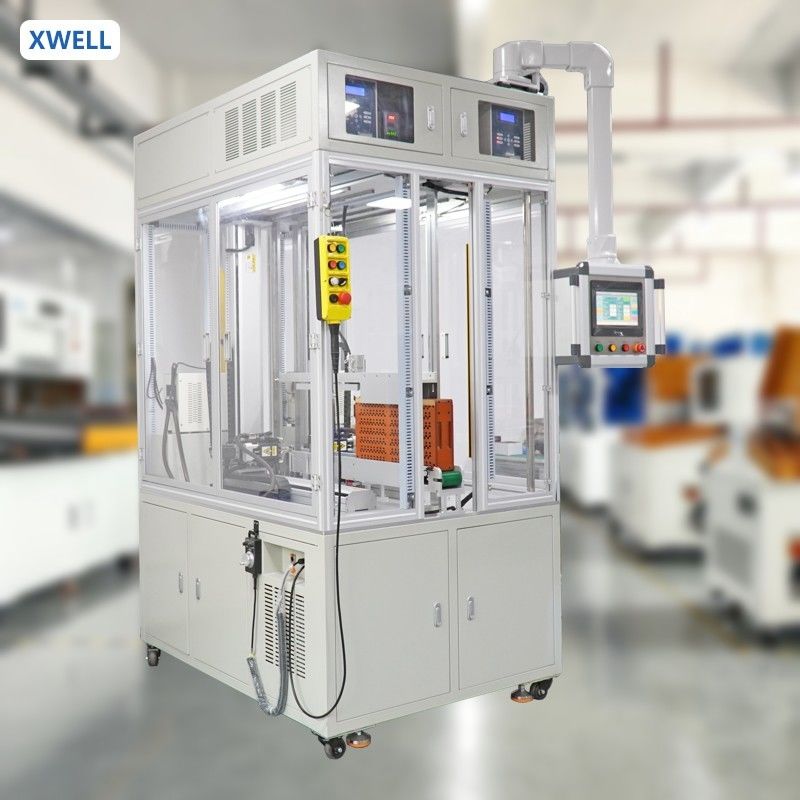

XWELL MD-ACDW Customizable Range Automatic Battery Pack Double Side Spot Welding Machine

XWELL MD-ACDW Customizable Range Automatic Battery Pack Double Side Spot Welding Machine

Brand Name:	XWELL
Model Number:	MD-ACDW
MOQ:	1 Set
Price:	USD 9,000-19,000 / Set
Packaging Details:	Plywood case with shock-proof foam, export-grade packaging
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ISO 9001:2015

Model:

MD-ACDW

Welding Power Source:

5000A/8000A/10000A (Optional)

Welding Range:

500 X 400mm (Customizable)

Jig Loading / Unloading:

By Conveyor

Welding Head Driver:

Servo Motor

Welding Spots:

2-6 Per Terminal

Jig Fixture:

Front Side And Top Clamp

Welding Speed:

Max 0.35s Per Spot

Welding Material:

Pure Nickel / Nickel-plated Steel

Welding Thickness:

0.1-0.3mm

Max Parameter Groups:

99

User Interface:

Touch Screen / PC Software (Optional)

Air Pressure:

0.4-0.6MPa

Cooling:

Fan / Water (Optional)

Power Supply:

AC 380V/50Hz/3P

Power:

8-10kW

Dimensions:

1100 X 1100 X 1850mm

Weight:

500kg

Supply Ability:

100 Sets per Month

Highlight:

automatic battery pack spot welder

,

double side spot welding machine

,

customizable range battery welder

Product Description

XWELL MD-ACDW Customizable Range Automatic Battery Pack Double Side Spot Welding Machine

With a customizable 500 x 400mm welding range and programmable process, the MD-ACDW produces any shape battery pack. Its automatic electrode cleaning system saves time, labor and cost, making it a flexible choice for varied production runs.

Key Features

Fully automatic loading, welding and unloading of battery pack jigs
Can be embedded in a fully automatic battery pack production line
Optional 5000A-10000A welding power source for different welding cases
Settable 1-3 welding times (2-6 welding spots) on each cell terminal
Optional touch screen and PC software user interface
Servo motor driving welding head for faster and more stable welding
Automatic electrode cleaning system saves time, labor and cost
Programmable welding process can produce any shape battery pack
Real-time welding effect monitoring with NG welding spot warning
Customizable 500 x 400mm range for any shape battery pack

Technical Parameters

Model	MD-ACDW
Welding Power Source	5000A/8000A/10000A (Optional)
Welding Range	500 x 400mm (Customizable)
Jig Loading / Unloading	By Conveyor
Welding Head Driver	Servo Motor
Welding Spots	2-6 per Terminal
Jig Fixture	Front Side and Top Clamp
Welding Speed	Max 0.35s per Spot
Welding Material	Pure Nickel / Nickel-plated Steel
Welding Thickness	0.1-0.3mm
Max Parameter Groups	99
User Interface	Touch Screen / PC Software (Optional)
Air Pressure	0.4-0.6MPa
Cooling	Fan / Water (Optional)
Power Supply	AC 380V/50Hz/3P
Power	8-10kW
Dimensions	1100 x 1100 x 1850mm
Weight	500kg

XWELL MD-ACDW series fully automatic conveyor battery pack double side spot welding machine, engineered for high-efficiency lithium battery pack production.
