32 Channel 5V 120A Prismatic Cell Charge And Discharge Grading Machine

Brand Name:	XWELL
Model Number:	XW-5V100A32CH
MOQ:	1 Set
Price:	USD 18000-30000 / Set
Packaging Details:	Standard export wooden case packaging with shock-proof foam insert and vacuum sealed moisture barrier
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ISO 9001:2015

Number Of Channels:

32 Channels

Channel Voltage Range:

0-5V DC

Channel Current Range:

0-100A DC

Battery Type:

Prismatic Lithium-Ion Cells

Charge Mode:

CC-CV (Constant Current-Constant Voltage)

Discharge Mode:

CC (Constant Current)

Voltage Accuracy:

±0.05% FS

Current Accuracy:

±0.05% FS

Temperature Monitoring:

Per Channel NTC Sensor

Data Recording Interval:

1 Second Minimum

Communication Interface:

RS485 / Ethernet LAN

Power Supply:

AC 380V 50Hz 3-Phase

Cooling Method:

Forced Air Cooling With Thermal Management

Supply Ability:

30 Sets per Month

Highlight:

32 channel battery grading machine

5V 120A prismatic cell charger

battery discharge grading machine

Product Description

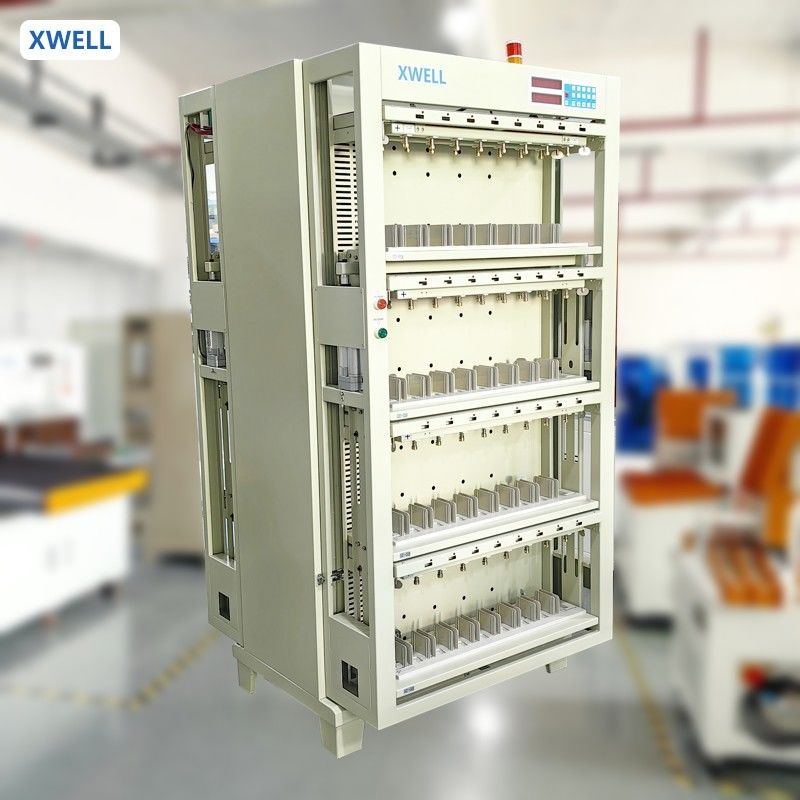

32 Channel 5V 120A Prismatic Cell Charge And Discharge Grading Machine

The XWELL XW-5V100A32CH is a fully automated 32-channel prismatic cell formation and grading system designed for Industry 4.0 smart factory deployment. With MES/ERP integration, barcode traceability, automated SPC analysis, and intelligent process control, this machine enables data-driven prismatic cell manufacturing at production scale.

Ⅰ,Product Description:

Energy-feedback Prismatic Cell Capacity Grading Machine is used to test the charge and discharge performance of lithium-ion batteries,which can feed back the energy generated by battery discharge to the power grid, so as to achieve the purpose of energy conservation.

Technical Specifications

Parameter	Specification
Model	XW-5V100A32CH
Number of Channels	32
Voltage Range	0-5V DC
Current Range	0-100A DC
Data Interface	RS485, Ethernet, REST API
Traceability	Barcode + QR Code Support
Software Platform	SQL Database
Power Supply	AC 380V 50Hz 3-Phase

Applications

Designed for advanced prismatic cell manufacturing facilities implementing smart factory and Industry 4.0 standards. Ideal for EV battery production lines and energy storage cell manufacturing requiring full traceability and automated process control.
