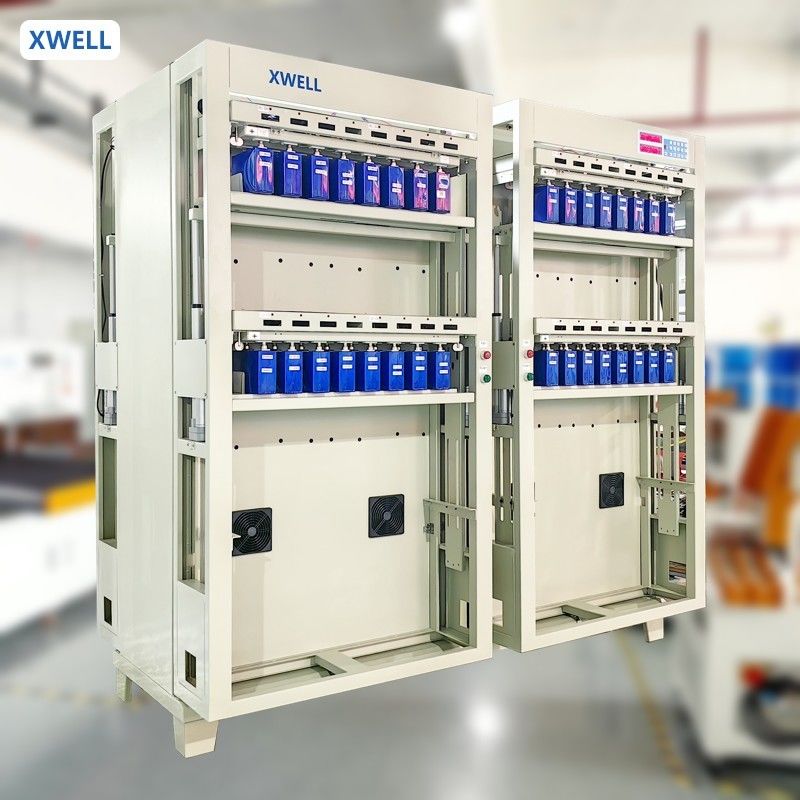

5V 100A 64 Channel Prismatic Cell Battery Grading Machine

Brand Name:	XWELL
Model Number:	XW-5V100A32CH
MOQ:	1 Set
Price:	USD 18000-30000 / Set
Packaging Details:	Standard export wooden case packaging with shock-proof foam insert and vacuum sealed moisture barrier
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ISO 9001:2015

Number Of Channels:

64 Channels

Channel Voltage Range:

0-5V DC

Channel Current Range:

0-100A DC

Battery Type:

Prismatic Lithium-Ion Cells

Charge Mode:

CC-CV (Constant Current-Constant Voltage)

Discharge Mode:

CC (Constant Current)

Voltage Accuracy:

±0.05% FS

Current Accuracy:

±0.05% FS

Temperature Monitoring:

Per Channel NTC Sensor

Data Recording Interval:

1 Second Minimum

Communication Interface:

RS485 / Ethernet LAN

Power Supply:

AC 380V 50Hz 3-Phase

Cooling Method:

Forced Air Cooling With Thermal Management

Supply Ability:

30 Sets per Month

Highlight:

5V 100A battery grading machine

64 channel prismatic cell grader

battery cell grading machine with warranty

Product Description

5V 100A 64 Channel Prismatic Cell Battery Grading Machine

Feature

1) One CPU board, the whole cabinet sends and controls uniformly.

2) There are 64 constant current plates, arranged evenly in four doors.

3) 4 bidirectional inverter power supplies, each for 8 constant current boards.

4) Two keyboard boards, front and rear double-sided operation.

5) A total of 16 pallets, the depth of the pallet is 22cm, the epoxy board is attached for insulation, each pallet has 8 channels, and the downward pressure clamp.

Technical Specifications

Parameter	Specification
Model	XW-5V100A64CH
Number of Channels	64
Voltage Range	0-5V DC
Current Range	0-100A DC
Data Interface	RS485, Ethernet, REST API
Traceability	Barcode + QR Code Support
Software Platform	SQL Database
Power Supply	AC 380V 50Hz 3-Phase

Applications

Designed for advanced prismatic cell manufacturing facilities implementing smart factory and Industry 4.0 standards. Ideal for EV battery production lines and energy storage cell manufacturing requiring full traceability and automated process control.
