5V 120A 32 Channels Prismatic Cell Grading Machine

Brand Name:	XWELL
Model Number:	XW-5V100A32CH
MOQ:	1 Set
Price:	USD 18000-30000 / Set
Packaging Details:	Standard export wooden case packaging with shock-proof foam insert and vacuum sealed moisture barrier
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ISO 9001:2015

Number Of Channels:

32 Channels

Channel Voltage Range:

0-5V DC

Channel Current Range:

0-100A DC

Battery Type:

Prismatic Lithium-Ion Cells

Charge Mode:

CC-CV (Constant Current-Constant Voltage)

Discharge Mode:

CC (Constant Current)

Voltage Accuracy:

±0.05% FS

Current Accuracy:

±0.05% FS

Temperature Monitoring:

Per Channel NTC Sensor

Data Recording Interval:

1 Second Minimum

Communication Interface:

RS485 / Ethernet LAN

Power Supply:

AC 380V 50Hz 3-Phase

Cooling Method:

Forced Air Cooling With Thermal Management

Supply Ability:

30 Sets per Month

Highlight:

5V 120A battery cell grading machine

32 channels prismatic cell grader

high current battery grading machine

Product Description

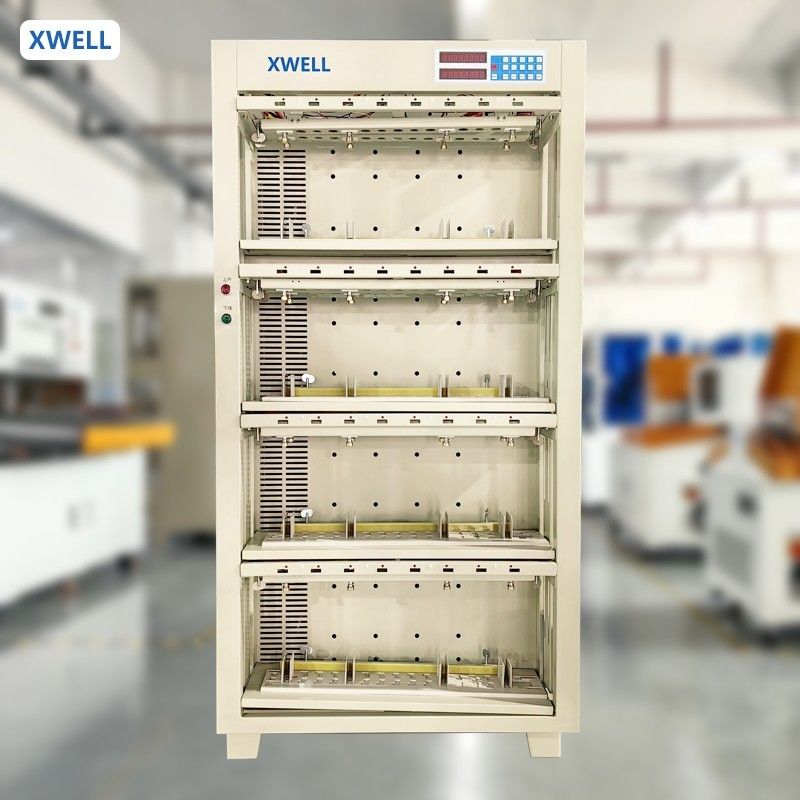

5V 120A 32 Channels Prismatic Cell Grading Machine

The XWELL XW-5V100A32CH is a fully automated 32-channel prismatic cell formation and grading system designed for Industry 4.0 smart factory deployment. With MES/ERP integration, barcode traceability, automated SPC analysis, and intelligent process control, this machine enables data-driven prismatic cell manufacturing at production scale.

Ⅰ,Product Description:

Battery Cell Formation and Grading System is mainly composed of computer, communication interface and battery testing cabinet. Battery testing cabinet consists of a jig and a board body for placing the jig, constant current and constant voltage source, sampling circuit, dividing capacity control circuit, microcontroller and control panel. It is mainly used for power battery capacity separation, capacity testing and Cycle life testing, and is the mainstream in the field of power battery testing equipment to meet the needs of power battery.

Technical Specifications

Parameter	Specification
Model	XW-5V100A32CH
Number of Channels	32
Voltage Range	0-5V DC
Current Range	0-100A DC
Data Interface	RS485, Ethernet, REST API
Traceability	Barcode + QR Code Support
Software Platform	SQL Database
Power Supply	AC 380V 50Hz 3-Phase

Applications

Designed for advanced prismatic cell manufacturing facilities implementing smart factory and Industry 4.0 standards. Ideal for EV battery production lines and energy storage cell manufacturing requiring full traceability and automated process control.
