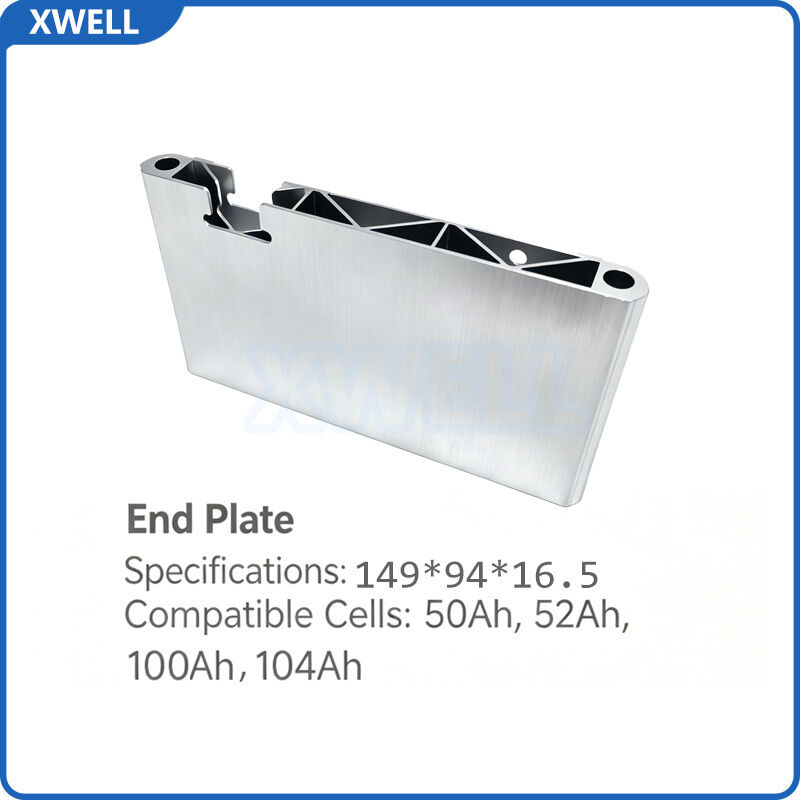

Prismatic Battery Aluminum Extrusion End Plate with Various Width Custom Height Multi Cell Compatible

Prismatic Battery Aluminum Extrusion End Plate with Various Width Custom Height Multi Cell Compatible

Product Overview

Our prismatic battery aluminum end plate is manufactured through a precision aluminum extrusion process, offering exceptional dimensional consistency along the extrusion axis. Available in multiple width options with fully customizable height to suit diverse cell formats and pack designs.

Aluminum Extrusion Process Advantage

• Superior Grain Structure: The extrusion process produces a uniform, elongated grain structure in 6061-T6 or 6063-T5 aluminum, delivering higher strength-to-weight ratio compared to cast alternatives. Ideal for structural end plates that must withstand cell expansion forces during charge-discharge cycling.
• Width Flexibility on One Axis: Extrusion tooling allows multiple width options from a single die family. Standard widths available for common cell formats, with the ability to create custom width profiles for unique pack designs.
• CNC Finish Machining: Cut-to-length from extruded profiles, then CNC machined for precise mounting hole positions, terminal interfaces, and flatness within +/- 0.05mm tolerance.

Key Features

• Various Width Options: Choose from a range of standard widths optimized for popular cell sizes, or supply your drawing for custom width profiles. The extrusion process makes width variation cost-effective without requiring new casting tooling.
• Customizable Height: Height is fully customizable to your specification. Whether you need compact end plates for small-format modules or tall plates for large-capacity stacks, we cut to your exact dimension from extruded profiles.
• Multi-Cell Compatibility: Engineered for 100Ah, 280Ah, 314Ah and other mainstream square aluminum shell LiFePO4 prismatic cells. End plate geometry can be optimized for any prismatic cell format.
• Flexible Terminal Mounting: Available with precision through-hole or tapped hole configurations for terminal installation, matched to your electrical connection requirements.
• Enhanced Thermal Conductivity: The dense, void-free extrusion structure provides superior thermal dissipation, helping manage cell temperature in high-power charge-discharge applications.

Technical Specifications

Why Choose Us

• Extrusion Expertise: Specialized in aluminum extrusion profiles for the new energy sector with deep process knowledge and consistent quality control systems.
• One-Stop Customization: From profile design and die development to extrusion, CNC machining, surface finishing, and quality inspection — all under one roof. No subcontracting delays.
• Flexible MOQ: Low minimum order quantities for new product development and sampling, with competitive pricing at scale for volume production.
• Rapid Sampling: Custom extrusion dies fabricated in-house with sample turnaround as fast as 7-10 working days, accelerating your product development cycle.
• Stringent Quality Control: Every batch undergoes dimensional inspection, surface quality check, and mechanical property verification against material certification. Full traceability from billet to finished part.
• Global Shipping: Reliable export packaging and logistics partnerships ensure your end plates arrive damage-free, whether by sea, air, or express courier.

Applications

• Residential and commercial energy storage systems (ESS)
• Electric vehicle (EV) battery packs
• Industrial UPS and telecom backup power
• Grid-scale battery energy storage (BESS)

Send us your dimensional requirements or cell specifications for a customized extrusion end plate solution. Engineering support available for design optimization. Contact our team for samples and volume pricing.
