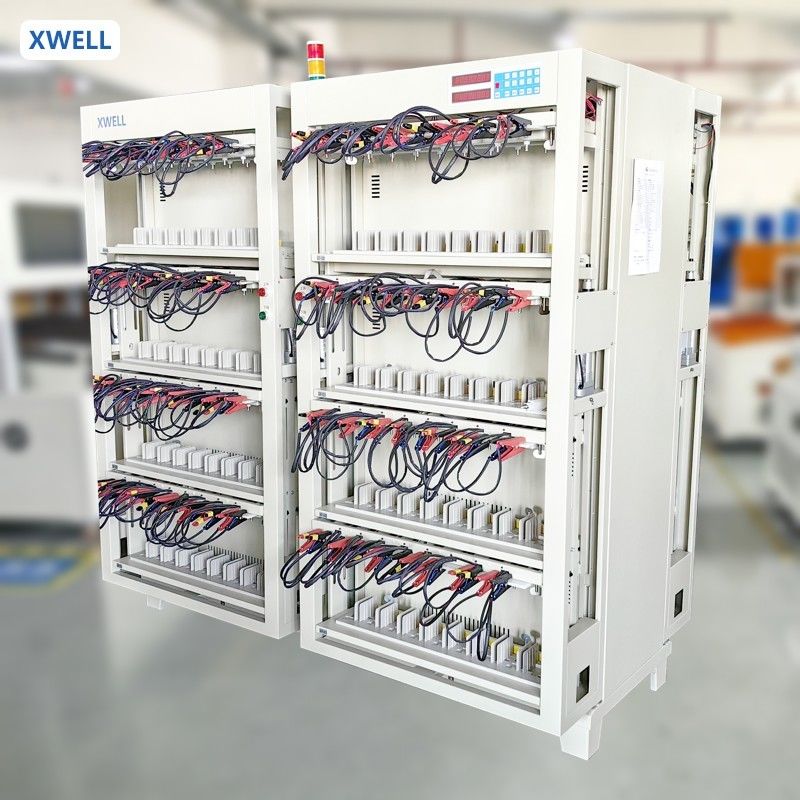

32 Channel Prismatic Battery Testing Machine Cell Grading Machine Battery Tester

Brand Name:	XWELL
Model Number:	XW-32
MOQ:	1pcs
Price:	USD 7900/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T,Western Union,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Battery Capacity Testing And Grading System

Channels:

Customized Service:

Yes

Voltage And Current:

5V/10A; 5V/20A; 5V/30A

Heat Dissipation:

To Enter The Air Naturally And Exhaust The Air Upward

Overall Energy Saving:

Over 70%

Voltage Measuring Range:

0-5V, 1MV Resolution

Battery Voltage Range:

Charge 0-4.5V: Discharge 4.5-2V

Control Mode:

Computer Connection Equipment Work, FCL Control

Supply Ability:

100 pcs per month

Highlight:

32 channel prismatic battery tester

battery cell grading machine

prismatic battery testing equipment

Product Description

32 Channel Prismatic Battery Testing Machine Cell Grading Machine Battery Tester

1. System features:

Single point independence, each battery has an independent constant current and constant voltage source, which is stable without impact.

The accuracy of the equipment is 0.05% and the stability is high.

The software has powerful functions and friendly man-machine interface.

Four wire test interface to ensure high measurement accuracy.

Modular design concept, easy to maintain.

The equipment structure is mainly composed of the following parts:

1,Independent CPU board and supporting keyboard board, front and rear double-sided independent operation, and the whole cabinet sends control uniformly ;

2,4-channel constant current and constant voltage control module ;

3,Bidirectional AC/DC inverter module.

4,Flat head clamp, electric automatic unclamping. Compatible crocodile clip.

2. System composition:

1. Lithium battery into capacity sharing equipment.

2. Computer with USB interface (self provided).

3,USB to 485 interface converter and conmmunication line.

4,Battery scanning system

5,Software.

Product Specification

Working power			Three-phase five-wire system AC380V±10%, 50HZ
Work environment			Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation			to enter the air naturally and exhaust the air upward
Overall energy saving			over 70%
Channel Parameter
Voltage measuring range			0-5V, 1MV resolution
Battery voltage range			Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range			2.5V-4.5V
voltage accuracy			±(1‰ reading +1‰ full)
Current accuracy			±(1‰ reading +1‰ full)
Software Function
Control mode			Computer connection equipment work, FCL control
Communication mode			RS485 baud rate 57,600
Process set			A maximum of 32 work steps and 256 cycles are se
Charging mode			Constant current, constant pressure
Charging cutoff condition			Voltage, current, time, capacity
Discharge			constant current
Discharge cut-off condition			Voltage, time, capacity
Defensive function			Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range			Set it anywhere from 0 to 30,000 minutes
Time accuracy			≤±1‰
Sampling inspection period			≤3S
Minimum frequency of data recording			≤5S
Battery sorting			By capacity, time, discharge platform, etc
Data processing			Data, graphs, and loop diagrams

32 Channel Prismatic Battery Testing Machine Cell Grading Machine Battery Tester 0

32 Channel Prismatic Battery Testing Machine Cell Grading Machine Battery Tester 1

XWELL can provide different fixtures for different types of cells

32 Channel Prismatic Battery Testing Machine Cell Grading Machine Battery Tester 2

32 Channel Prismatic Battery Testing Machine Cell Grading Machine Battery Tester 3
