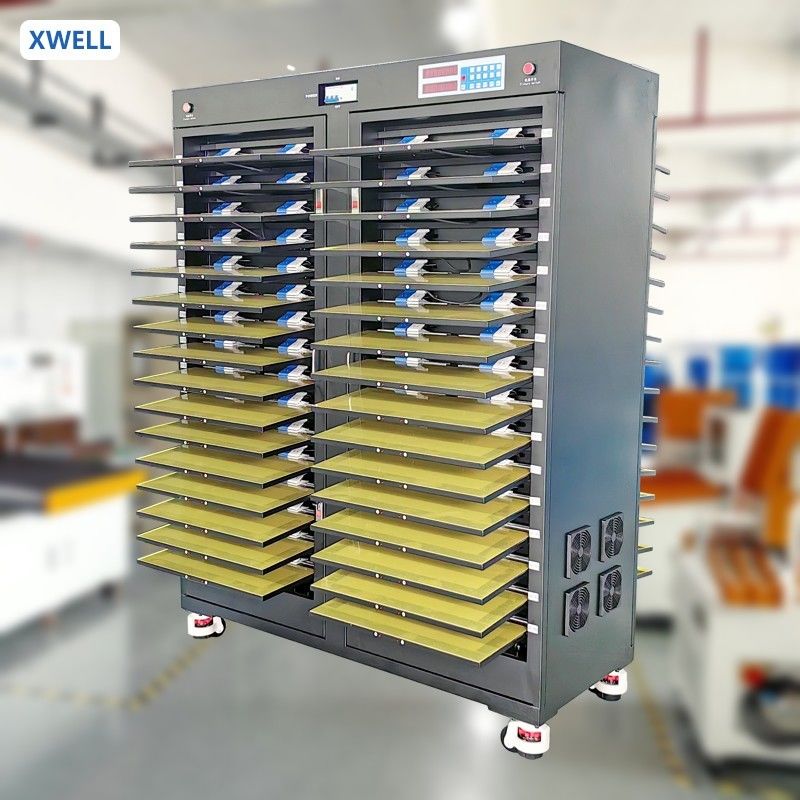

5V3A 6A 512 Channel Charge And Discharge Battery Tester Capacity Testing Machine
  • Name

5V3A 6A 512 Channel Charge And Discharge Battery Tester Capacity Testing Machine

Brand Name: XWELL
Model Number: XW-5V6A-512
MOQ: 1 Set
Price: USD 15000-25000 / Set
Packaging Details: Standard export wooden case packaging with shock-proof foam insert and vacuum sealed moisture barrier
Payment Terms: T/T,L/C,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE, ISO 9001:2015
Number Of Channels:
512 Channels
Channel Voltage Range:
0-5V DC
Channel Current Range:
0-6A DC
Charge Mode:
CC-CV (Constant Current-Constant Voltage)
Discharge Mode:
CC (Constant Current)
Voltage Accuracy:
±0.05% FS
Current Accuracy:
±0.05% FS
Temperature Monitoring:
Per Channel NTC Sensor
Data Recording Interval:
1 Second Minimum
Communication Interface:
RS485 / Ethernet LAN
Software Platform:
PC Software Compatible
Power Supply:
AC 380V 50Hz 3-Phase
Cooling Method:
Forced Air Cooling With Thermal Management
Supply Ability:
50 Sets per Month
Highlight:

5V3A battery capacity tester

,

6A battery discharge machine

,

512 channel battery grading tester

Product Description

5V3A 6A 512 Channel Charge And Discharge Battery Tester Capacity Testing Machine

5V6A-512 Battery Testing Equipment is a popular newly developed battery testing system for Li-ion cells, LIPB, Ni-MH cells, Ni-Cd cells.

This Equipment can be used as research machine, as cell positive /cathode pole material, battery cycle life testing etc.

This Equipment also can be used in pilot run period and in quality assurance department, since it has functions as formatting cells, grading capacity, testing cells group,checking battery pack, and processing test data,etc.

Technical Specifications

Parameter Specification
Model XW-5V6A-512
Number of Channels 512
Voltage Range 0-5V DC
Current Range 0-6A DC
Service Access Front Panel Only
Layout Flexibility Back-to-Back / Wall-Mountable
Power Supply AC 380V 50Hz 3-Phase

Applications

Ideal for battery factories with limited floor space, urban manufacturing facilities, cleanroom production environments, and compact production lines. Supports 18650, 21700, and 26650 cylindrical cell formation and grading with maximum space efficiency.
