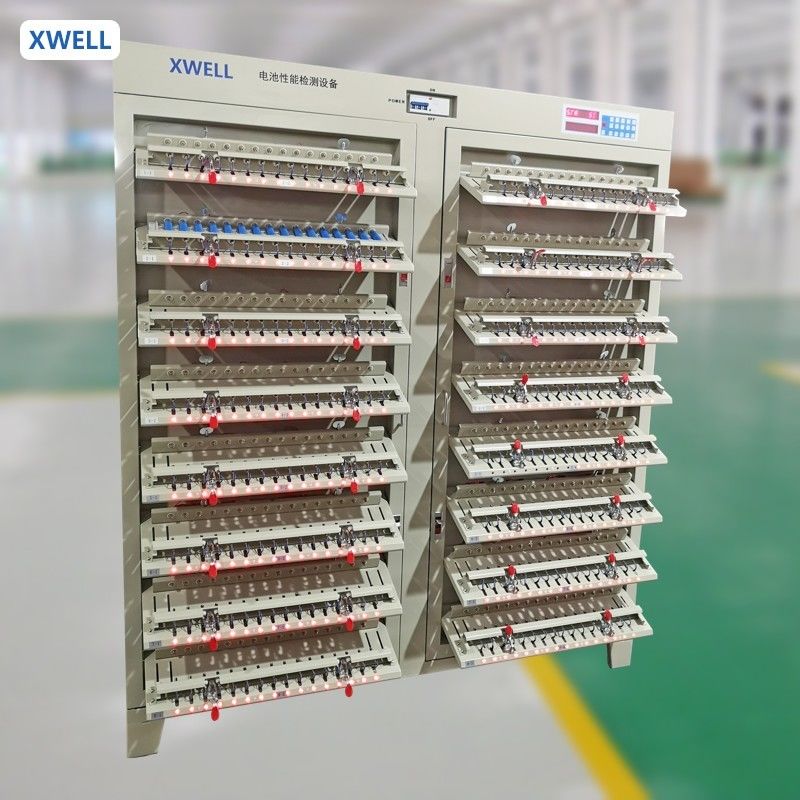

512 Channel 5V 6A Battery Cell Formation Grading Machine
  • Name

512 Channel 5V 6A Battery Cell Formation Grading Machine

Brand Name: XWELL
Model Number: XW-5V6A-512
MOQ: 1 Set
Price: USD 15000-25000 / Set
Packaging Details: Standard export wooden case packaging with shock-proof foam insert and vacuum sealed moisture barrier
Payment Terms: T/T,L/C,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE, ISO 9001:2015
Number Of Channels:
512 Channels
Channel Voltage Range:
0-5V DC
Channel Current Range:
0-6A DC
Charge Mode:
CC-CV (Constant Current-Constant Voltage)
Discharge Mode:
CC (Constant Current)
Voltage Accuracy:
±0.05% FS
Current Accuracy:
±0.05% FS
Temperature Monitoring:
Per Channel NTC Sensor
Data Recording Interval:
1 Second Minimum
Communication Interface:
RS485 / Ethernet LAN
Software Platform:
PC Software Compatible
Power Supply:
AC 380V 50Hz 3-Phase
Cooling Method:
Forced Air Cooling With Thermal Management
Supply Ability:
50 Sets per Month
Highlight:

512 channel battery cell grading machine

,

5V 6A battery formation machine

,

battery cell grading machine with warranty

Product Description

512 Channel 5V 6A  Battery Cell Formation Grading Machine

The XWELL XW-5V6A-512 maximizes production capacity per square meter with a high-density 512-channel configuration in an optimized cabinet footprint. Designed for factories where floor space is at a premium, this machine features vertical channel stacking, integrated cooling, and front-access service to minimize aisle space requirements.

Key Features

  • 512 Channels in Compact Footprint: High-density channel configuration maximizes throughput per square meter of factory floor
  • Vertical Channel Stacking: Optimized vertical layout with ergonomic loading height and minimal footprint
  • Integrated Cooling Design: Built-in forced air ducting eliminates need for external cooling clearance, saving aisle space
  • Front-Access Service: All maintenance accessible from front panels, allowing machines to be placed back-to-back or against walls
  • 5V / 6A Per Channel: Full performance in a space-efficient package for 18650, 21700, and 26650 cells
  • CC-CV Charging & CC Discharging: Precision testing protocols with high-density channel electronics
  • Daisy-Chain Capability: Multiple units can be connected via Ethernet for centralized control of dense machine clusters
  • Efficient Thermal Design: Optimized airflow path reduces cooling power consumption in high-density installations

Technical Specifications

Parameter Specification
Model XW-5V6A-512
Number of Channels 512
Voltage Range 0-5V DC
Current Range 0-6A DC
Service Access Front Panel Only
Layout Flexibility Back-to-Back / Wall-Mountable
Power Supply AC 380V 50Hz 3-Phase

Applications

Ideal for battery factories with limited floor space, urban manufacturing facilities, cleanroom production environments, and compact production lines. Supports 18650, 21700, and 26650 cylindrical cell formation and grading with maximum space efficiency.
