32 Channel Prismatic Cell Charge And Discharge Test Machine

Brand Name: XWELL
Model Number: XW-32
MOQ: 1pcs
Price: USD 7900/pcs
Packaging Details: Wooden box
Payment Terms: T/T,Western Union,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Battery Capacity Testing And Grading System
Channels:
32
Customized Service:
Yes
Voltage And Current:
5V/10A; 5V/20A; 5V/30A
Heat Dissipation:
To Enter The Air Naturally And Exhaust The Air Upward
Overall Energy Saving:
Over 70%
Voltage Measuring Range:
0-5V, 1MV Resolution
Battery Voltage Range:
Charge 0-4.5V: Discharge 4.5-2V
Control Mode:
Computer Connection Equipment Work, FCL Control
Supply Ability:
100 pcs per month
Highlight:

32 channel prismatic cell tester

,

battery charge discharge machine

,

cell grading machine with warranty

Product Description
32 Channel Prismatic Cell Charge And Discharge Test Machine


This Automatic Prismatic Cell Formation Cabinet integrates formation, testing, and grading in one system. It improves production efficiency while maintaining strict quality control for lithium-ion prismatic cells.

Key Features

  • Fully automatic charge/discharge formation
  • Real-time monitoring of voltage, current, and temperature
  • High-precision capacity sorting
  • Multiple safety protections
  • Supports remote monitoring and data export

Applications

  • EV battery cell production
  • Large-scale energy storage batteries
  • Industrial and commercial battery manufacturing
  • Research & development battery testing

Product Specification

Working power Three-phase five-wire system AC380V±10%, 50HZ
Work environment Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation to enter the air naturally and exhaust the air upward
Overall energy saving over 70%
Channel Parameter
Voltage measuring range 0-5V, 1MV resolution
Battery voltage range Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range 2.5V-4.5V
voltage accuracy ±(1‰ reading +1‰ full)
Current accuracy ±(1‰ reading +1‰ full)
Software Function
Control mode Computer connection equipment work, FCL control
Communication mode RS485 baud rate 57,600
Process set A maximum of 32 work steps and 256 cycles are se
Charging mode Constant current, constant pressure
Charging cutoff condition Voltage, current, time, capacity
Discharge constant current
Discharge cut-off condition Voltage, time, capacity
Defensive function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range Set it anywhere from 0 to 30,000 minutes
Time accuracy ≤±1‰
Sampling inspection period ≤3S
Minimum frequency of data recording ≤5S
Battery sorting By capacity, time, discharge platform, etc
Data processing Data, graphs, and loop diagrams

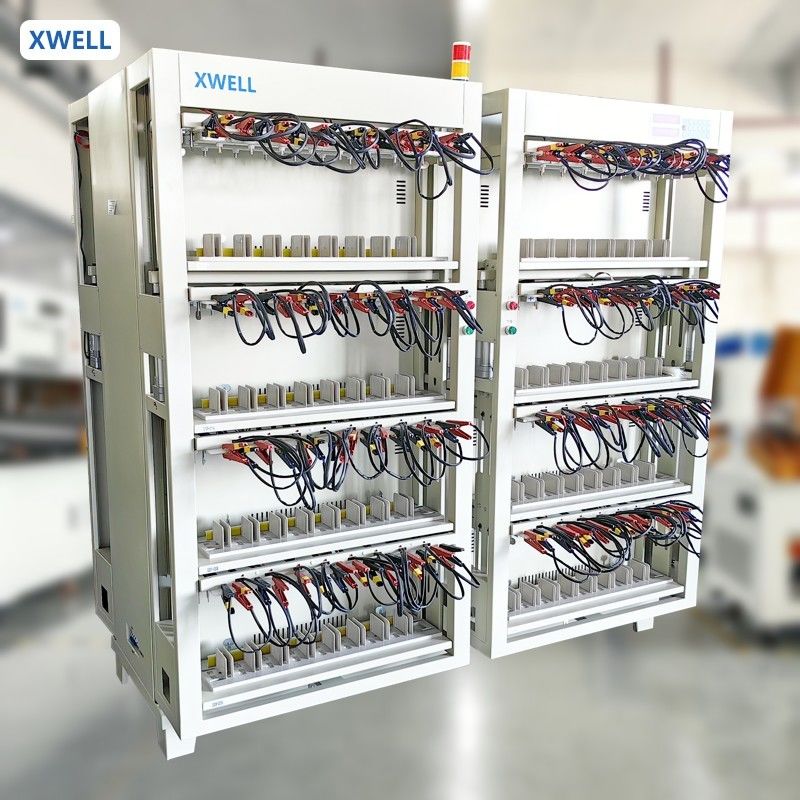

32 Channel Prismatic Cell Charge And Discharge Test Machine 0


32 Channel Prismatic Cell Charge And Discharge Test Machine 1


XWELL can provide different fixtures for different types of cells


32 Channel Prismatic Cell Charge And Discharge Test Machine 2

32 Channel Prismatic Cell Charge And Discharge Test Machine 3
