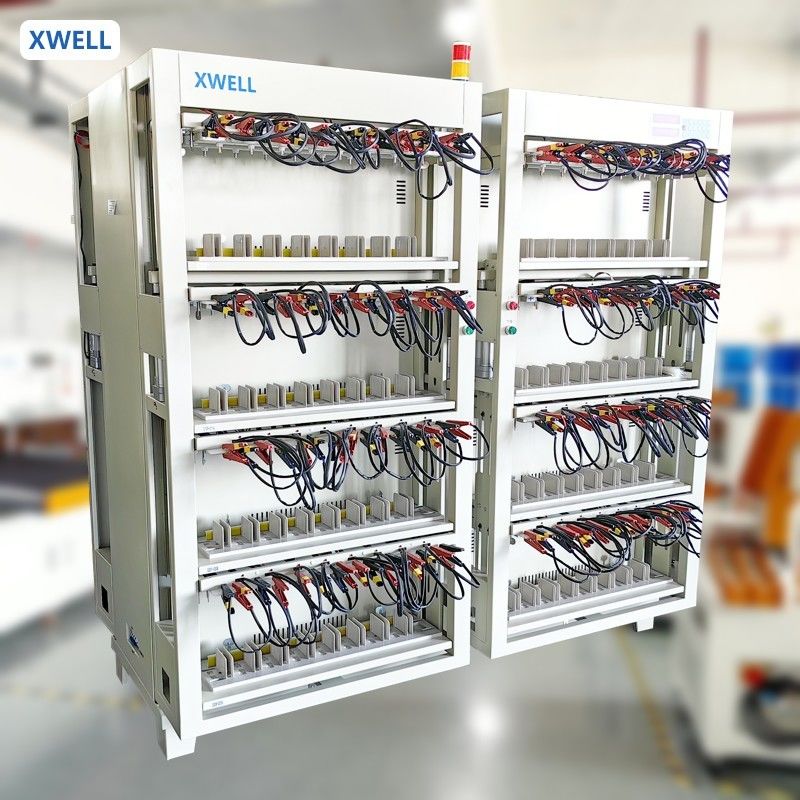

32 Channel Prismatic Cell Grading Machine

Brand Name: XWELL
Model Number: XW-32
MOQ: 1pcs
Price: USD 7900/pcs
Packaging Details: Wooden box
Payment Terms: T/T,Western Union,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Battery Capacity Testing And Grading System
Channels:
32
Customized Service:
Yes
Voltage And Current:
5V/10A; 5V/20A; 5V/30A
Heat Dissipation:
To Enter The Air Naturally And Exhaust The Air Upward
Overall Energy Saving:
Over 70%
Voltage Measuring Range:
0-5V, 1MV Resolution
Battery Voltage Range:
Charge 0-4.5V: Discharge 4.5-2V
Control Mode:
Computer Connection Equipment Work, FCL Control
Supply Ability:
100 pcs per month
Highlight:

32 channel prismatic cell grading machine

,

battery cell grading machine with warranty

,

prismatic cell grading equipment 32 channel

Product Description
32 Channel Prismatic Cell  Grading Machine


Key Features

  • Supports high-volume production
  • Multi-channel charging and discharging
  • Intelligent temperature and voltage management
  • User-friendly touchscreen interface
  • Modular design for easy maintenance

Applications

  • Battery pack manufacturers for EVs and e-bikes
  • Energy storage system production
  • Consumer electronics battery assembly
  • Industrial battery modules

Benefits

  • Increases production efficiency
  • Improves battery performance consistency
  • Reduces operational risk and defective cells
  • Flexible for different prismatic cell sizes


Product Specification

Working power Three-phase five-wire system AC380V±10%, 50HZ
Work environment Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation to enter the air naturally and exhaust the air upward
Overall energy saving over 70%
Channel Parameter
Voltage measuring range 0-5V, 1MV resolution
Battery voltage range Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range 2.5V-4.5V
voltage accuracy ±(1‰ reading +1‰ full)
Current accuracy ±(1‰ reading +1‰ full)
Software Function
Control mode Computer connection equipment work, FCL control
Communication mode RS485 baud rate 57,600
Process set A maximum of 32 work steps and 256 cycles are se
Charging mode Constant current, constant pressure
Charging cutoff condition Voltage, current, time, capacity
Discharge constant current
Discharge cut-off condition Voltage, time, capacity
Defensive function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range Set it anywhere from 0 to 30,000 minutes
Time accuracy ≤±1‰
Sampling inspection period ≤3S
Minimum frequency of data recording ≤5S
Battery sorting By capacity, time, discharge platform, etc
Data processing Data, graphs, and loop diagrams


32 Channel Prismatic Cell Grading Machine 0


32 Channel Prismatic Cell Grading Machine 1


XWELL can provide different fixtures for different types of cells


32 Channel Prismatic Cell Grading Machine 2

32 Channel Prismatic Cell Grading Machine 3
