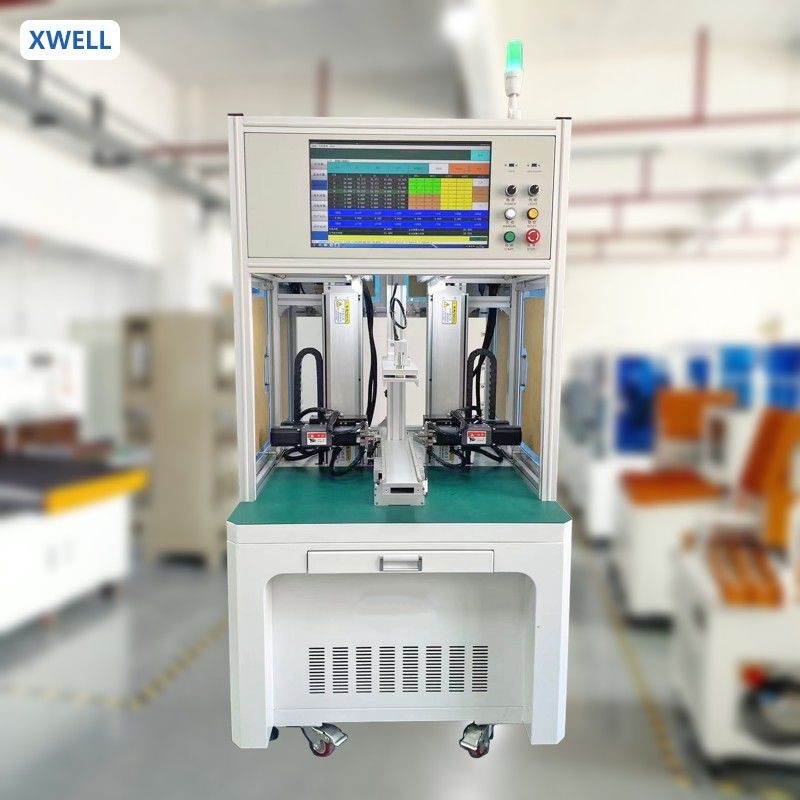

Automatic Double-Sided Battery Spot Welding Machine

Brand Name: XWELL
Model Number: MD-ADW
MOQ: 1pcs
Price: USD 11000 - 15000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T,Western Union,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Compliance:
CE Certified
Payment:
L/C D/A D/P T/T Western Union
Operate System:
Embedded System
User Interface:
Touch Screen
Power Source:
5000A / 8000A / 10000A Optional
Efficiency:
3800pcs/h
Equipment Stroke:
500*350 (mm) About 760 18650 Cells
Maximum Load Capacity:
200-400pcs(standard 18650 Lithium Battery)
Operating System:
Embedded System + Man - Machine Screen
Transmission Mode:
Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw)
Supply Ability:
100pcs per month
Highlight:

automatic double-sided spot welder

,

battery spot welding machine with warranty

,

lithium battery spot welder automatic

Product Description

Automatic Double-Sided Battery Spot Welding Machine


Product Description

The Automatic Double-Sided Battery Spot Welding Machine is engineered for large-scale battery pack production. Its dual-sided welding technology ensures high-speed, precise, and consistent welds, making it perfect for modern battery manufacturing lines.

Key Features

  • Automatic Dual-Side Welding: Enhances efficiency and reduces errors.
  • Precision Control: Adjustable welding parameters for optimal performance.
  • High-Speed Operation: Supports high-throughput production.
  • Wide Compatibility: Works with cylindrical and prismatic cells, and different strip materials.
  • Intelligent Safety Features: Protects battery packs from overheating or welding failure.

Applications

  • Lithium-ion battery pack manufacturing
  • Energy storage system (ESS) battery assembly
  • Automotive battery modules
  • Industrial battery packs
  • Renewable energy storage solutions

Benefits

  • Consistent welding quality for reliable battery performance
  • Significantly faster production cycles
  • Reduced operator involvement
  • Adaptable to different battery types and sizes

Product Specification


SPECIFICATIONS FOR MD-ASW AND MD-ADW

MD-ASW MD-ADW
Welding Head Number
1
2
Travel
X: 400mm; Y: 400mm
Y: 500mm; Z: 350mm
Welding Spped
0.5s/spot, 2000-2500pcs/h
0.5s/spot, 3500-4000pcs/h
Welder Power Suppler
5000A Inverter Spot Welder
Max Motor Speed
1000mm/s
Max Battery Number
450 pcs (18650)
Operate System
Embedded system
User Interface
Touch screen
Drive Mode
Step motor and precision guide rail
Power Supply
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Air Pressure
0.3-0.6 MPa
Machine Size
900L*900W*1750Hmm
1100L*900W*1930Hmm
Machine Weight
200kg
350kg


Product Application


MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.


Product Operation


1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).


Double side spot welder details


Automatic Double-Sided Battery Spot Welding Machine 0

Automatic Double-Sided Battery Spot Welding Machine 1


Cylindrical battery pack welding samples


Automatic Double-Sided Battery Spot Welding Machine 2

Automatic Double-Sided Battery Spot Welding Machine 3

Automatic Double-Sided Battery Spot Welding Machine 4
