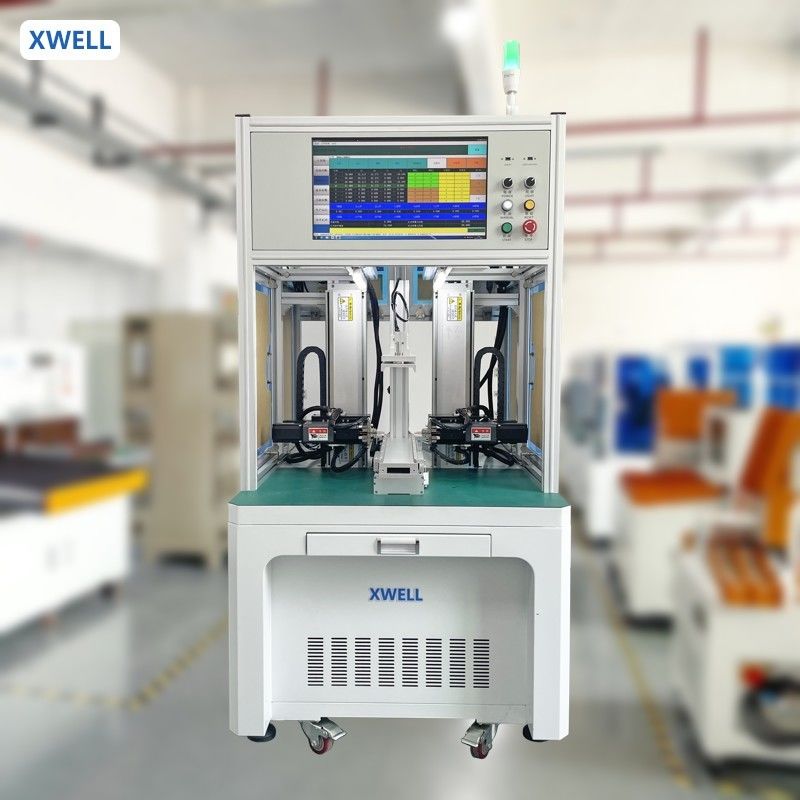

Double-Sided Spot Welding Machine for Battery Pack Assembly

Brand Name: XWELL
Model Number: MD-ADW
MOQ: 1pcs
Price: USD 11000 - 15000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T,Western Union,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Compliance:
CE Certified
Payment:
L/C D/A D/P T/T Western Union
Operate System:
Embedded System
User Interface:
Touch Screen
Power Source:
5000A / 8000A / 10000A Optional
Efficiency:
3800pcs/h
Equipment Stroke:
500*350 (mm) About 760 18650 Cells
Maximum Load Capacity:
200-400pcs(standard 18650 Lithium Battery)
Operating System:
Embedded System + Man - Machine Screen
Transmission Mode:
Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw)
Warranty:
1 Year
Original:
China
Supply Ability:
100pcs per month
Highlight:

double-sided battery spot welder

,

lithium battery pack welding machine

,

spot welding machine for battery assembly

Product Description

Double-Sided Spot Welding Machine for Battery Pack Assembly



Key Features

  • Dual-Sided Welding: Simultaneously welds both sides of the battery tab, ensuring uniform heat distribution and reliable connections.
  • Precision Control: Programmable welding parameters including current, time, and pressure for each welding point.
  • High Efficiency: Significantly reduces assembly time compared to single-side spot welding.
  • Versatility: Compatible with various battery sizes and tab materials (nickel strips, copper strips).
  • Safety & Reliability: Built-in overcurrent and overheat protection to prevent battery damage.

Applications

  • EV battery modules and packs
  • Portable energy storage devices
  • Power tools and e-bike battery assembly
  • Industrial and consumer electronics

Benefits

  • Enhanced weld consistency improves battery performance and lifespan
  • Reduces labor costs and increases production throughput
  • Flexible settings for different battery designs and materials
  • Minimizes risk of short circuits or welding defects


Product Specification


SPECIFICATIONS FOR MD-ASW AND MD-ADW

MD-ASW MD-ADW
Welding Head Number
1
2
Travel
X: 400mm; Y: 400mm
Y: 500mm; Z: 350mm
Welding Spped
0.5s/spot, 2000-2500pcs/h
0.5s/spot, 3500-4000pcs/h
Welder Power Suppler
5000A Inverter Spot Welder
Max Motor Speed
1000mm/s
Max Battery Number
450 pcs (18650)
Operate System
Embedded system
User Interface
Touch screen
Drive Mode
Step motor and precision guide rail
Power Supply
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Air Pressure
0.3-0.6 MPa
Machine Size
900L*900W*1750Hmm
1100L*900W*1930Hmm
Machine Weight
200kg
350kg


Product Application


MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.


Product Operation


1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).


Double side spot welder details


Double-Sided Spot Welding Machine for Battery Pack Assembly 0

Double-Sided Spot Welding Machine for Battery Pack Assembly 1


Cylindrical battery pack welding samples


Double-Sided Spot Welding Machine for Battery Pack Assembly 2

Double-Sided Spot Welding Machine for Battery Pack Assembly 3

Double-Sided Spot Welding Machine for Battery Pack Assembly 4
