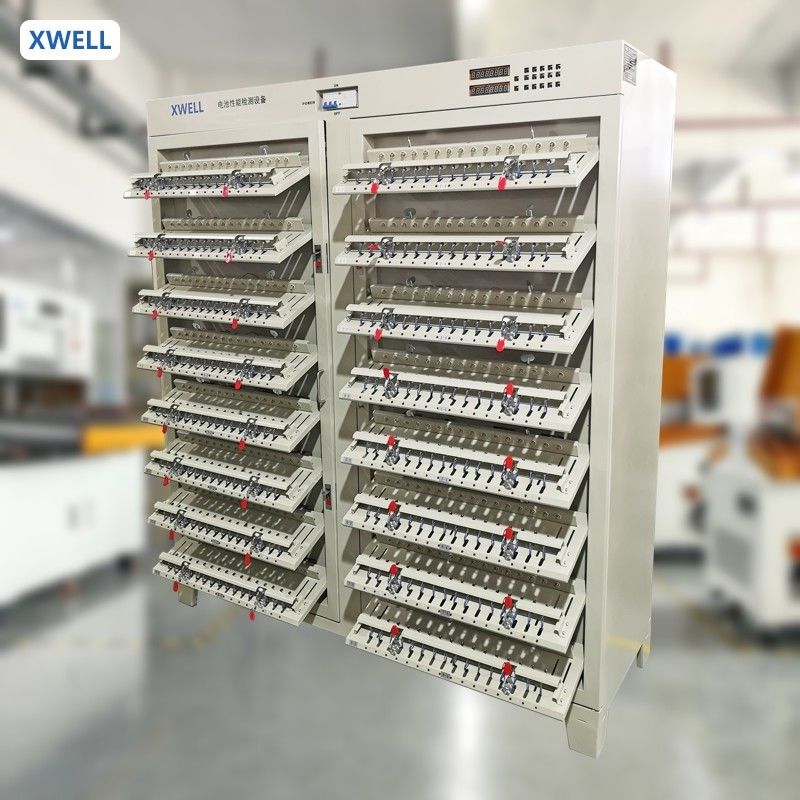

512 Channel Cell Grading Machine

Brand Name:	XWELL
Model Number:	XW-5V3A-512
MOQ:	1pcs
Price:	USD 7900/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T,Western Union,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Channel Voltage And Current:

5V Votage And 3A Current

Channel Number:

512

Cell Type:

18650, 21700, 26650, 32650, 32700

Input AC Type:

3 Phase AC380V ±10%/50Hz

Maximum Input Power:

14KW

Noise:

≤65dB

AC Power Supply Wiring Mode:

Three-phase Five Wire Connection

The Power Factor Of Power Supply:

≥0.99(The Load Power Is More Than 30% Of Rated Power)

Charging Cut-off Condition:

Voltage, Current, Time, Capacity

Supply Ability:

100 pcs per month

Highlight:

512 channel battery grading machine

high-capacity cell grading equipment

industrial battery cell sorting system

Product Description

512 Channel Cell Grading Machine

System Features

Single point independence, each battery has its own independent constant current and constant voltage source, stable and impact-free.
Equipment accuracy is 0.1%, with high stability.
Powerful software and user-friendly human-machine interface.
Four-wire test interface ensures high measurement accuracy.
Modular design concept, easy to maintain.

Equipment Structure

The structure of this equipment is mainly composed of the following parts:
1. Independent CPU board, matching keyboard board, unified transmission control of the whole cabinet;
2. 8-channel constant current and constant voltage control module;
3. Switching power supply;
4. Use flat head clamps and tray-type manual clamping.

Product Specification

Channel voltage and current	5V/3A
Channel number	512 Channnels
Parallel unit number per channel	1
Input AC type	3 phase AC380V ±10%/50Hz
Maximum input power	14KW
Noise	≤65dB
AC power supply wiring mode	Three-phase five wire connection
The power factor of power supply	≥0.99(The load power is more than 30% of rated power)
Total current distortion rate	THD≤5%
Conversion efficiency	Each link conversion efficiency is more than 85%
Voltage	Constant voltage setting range	Charging:0.02V~5V
	Minimum discharge voltage	Discharging:1V~5V
	Measuring range	0V~5V
	The voltage resolution	0.1mV
	Accuracy of control	±(0.05%RD+0.05%FS)
	Accuracy of measurement	±(0.05%RD+0.05%FS)
Current	Charging current setting range	0.02A~3A
	Discharging current setting range	0.02A~3A
	Measuring range	0A~3A
	The current resolution	16 Bit AD,DA
	Accuracy of control	±(0.05%RD+0.05%FS)
	Accuracy of measurement	±(0.05%RD+0.05%FS)
	Temperature drift	25PPM/℃
Power	Single channel maximum output power	30W
Time	Channel sampling time	0.1s
	Current response time	The maximum current rise time 20ms
	Steps setting time range	1min~1024min
	Time accuracy	±0.01%

XWELL factory

512 Channel Cell Grading Machine 0

512 Channel Cell Grading Machine 1

512 Channel Cell Grading Machine 2

512 Channel Cell Grading Machine 3

Cell grading machine package

512 Channel Cell Grading Machine 4
