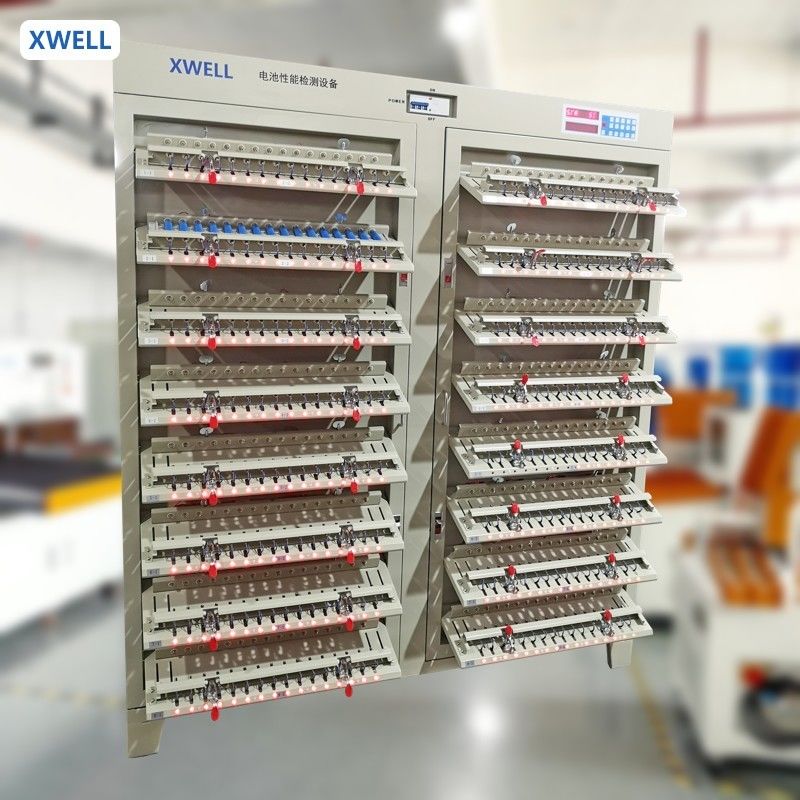

512-Channel Battery Grading Machine For Lithium Cell Testing

Brand Name:	XWELL
Model Number:	XW-5V3A-512
MOQ:	1pcs
Price:	USD 7900/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T,Western Union,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Channel Voltage And Current:

5V Votage And 3A Current

Channel Number:

512

Cell Type:

18650, 21700, 26650, 32650, 32700

Input AC Type:

3 Phase AC380V ±10%/50Hz

Maximum Input Power:

14KW

Noise:

≤65dB

AC Power Supply Wiring Mode:

Three-phase Five Wire Connection

The Power Factor Of Power Supply:

≥0.99(The Load Power Is More Than 30% Of Rated Power)

Charging Cut-off Condition:

Voltage, Current, Time, Capacity

Supply Ability:

100 pcs per month

Highlight:

512-channel lithium cell grading machine

battery grading machine for testing

lithium cell testing machine with warranty

Product Description

512-Channel Battery Grading Machine For Lithium Cell Testing

Product Description

Three key technologies: 1. Energy saving: comprehensive energy saving of more than 70%, high-power inverter technology 2. High efficiency: labor efficiency increased by 50% 3. High quality: accuracy deviation <0.5% after 500 consecutive charging and discharging, high precision and stable detection technology Energy-saving battery based on high-frequency power feedback technology The working principle of chemical composition equipment:

Charging mode: PWM switching power supply mode is adopted to realize constant current and constant voltage charging of the battery. Advantages: high power conversion efficiency, generally above 85%.

Discharge mode: First, the voltage of the battery is increased by the PWM boost circuit and sent to the inverter power supply, and then gradually increased to be converted into AC power and sent to the AC grid, and finally the battery discharge power is fed back and reused. Advantages: The discharged electric energy of the power supply is well recycled and reused, and the energy saving effect is obvious.

Configuration and material of complete sets of equipment:
1. XW series li-ion battery automatic testing and formation system 1 sets
2. Communication wire 1pcs
3. Power Line 1 pcs
4. Spare Part( details check spare part list) 1 set
5. Information File 1 pcs
The items inside the information file:
1. Software installation disk 1 pcs
2. Product qualification 1 pcs
3. Product quality tracking card 1pcs
4. Warranty card 1pcs
5. Spare part list 1 pcs
6. User guide 1 pcs
7. Drawing 1 set

Product Specification

Channel voltage and current	5V/3A
Channel number	512 Channnels
Parallel unit number per channel	1
Input AC type	3 phase AC380V ±10%/50Hz
Maximum input power	14KW
Noise	≤65dB
AC power supply wiring mode	Three-phase five wire connection
The power factor of power supply	≥0.99(The load power is more than 30% of rated power)
Total current distortion rate	THD≤5%
Conversion efficiency	Each link conversion efficiency is more than 85%
Voltage	Constant voltage setting range	Charging:0.02V~5V
	Minimum discharge voltage	Discharging:1V~5V
	Measuring range	0V~5V
	The voltage resolution	0.1mV
	Accuracy of control	±(0.05%RD+0.05%FS)
	Accuracy of measurement	±(0.05%RD+0.05%FS)
Current	Charging current setting range	0.02A~3A
	Discharging current setting range	0.02A~3A
	Measuring range	0A~3A
	The current resolution	16 Bit AD,DA
	Accuracy of control	±(0.05%RD+0.05%FS)
	Accuracy of measurement	±(0.05%RD+0.05%FS)
	Temperature drift	25PPM/℃
Power	Single channel maximum output power	30W
Time	Channel sampling time	0.1s
	Current response time	The maximum current rise time 20ms
	Steps setting time range	1min~1024min
	Time accuracy	±0.01%

XWELL factory

512-Channel Battery Grading Machine For Lithium Cell Testing 0

512-Channel Battery Grading Machine For Lithium Cell Testing 1

512-Channel Battery Grading Machine For Lithium Cell Testing 2

512-Channel Battery Grading Machine For Lithium Cell Testing 3

Cell grading machine package

512-Channel Battery Grading Machine For Lithium Cell Testing 4
