Good price online

products details

Home > Products >
Battery Aging Machine
>
85V 10A Charging 20A Discharging Battery Pack Tester Equipment/Battery Ageing Cabinet
All Category

Battery Pack Welding Machine

Battery Pack Production Machine

Battery Pack Testing Machine

Lithium Battery Spot Welding Machine

Battery Laser Welding Machine

Battery Raw Material

Ultrasonic Battery Welder

BMS Testing Machine

Battery Aging Machine

Battery Cell Sorting Machine

Battery Cell Grading Machine

Battery Cell Sticking Machine
Contact Us
Mr. Sammy Qin
sammyqin@outlook.com
+8618620492985
wechat +8618620492985
Contact Now
  • Name
  • Name

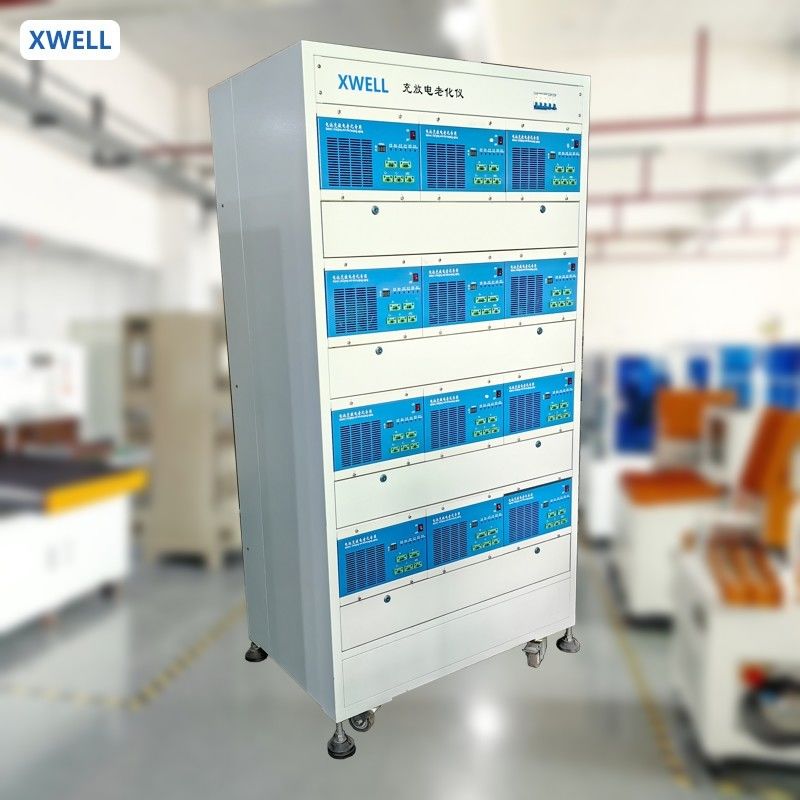

85V 10A Charging 20A Discharging Battery Pack Tester Equipment/Battery Ageing Cabinet

Brand Name: XWELL
Model Number: BCDS70-05-10
MOQ: 1pcs
Price: USD 2000/pcs
Packaging Details: Wooden box
Payment Terms: T/T,Western Union,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
After-sales Service:
Provided
Type:
Semi-Automatic
Power Supply:
AC220V 50Hz
Charging Accuracy:
±(0.2% Of Reading +0.2% Of Range)
Discharge Range:
50-10000mA
Discharge Accuracy:
±(0.2% Of Reading +0.2% Of Range)
Constant Voltage Cut-off Current:
Minimum 50mA
Discharge Power:
≤700W
Inspection Time:
Real-time Collection<2S
Place Of Origin:
China
Supply Ability:
100 pcs per month
Highlight:

85V battery pack tester equipment

,

10A charging battery aging cabinet

,

20A discharging battery tester with warranty

Product Description

85V 10A Charging 20A Discharging Battery Pack Tester Equipment/Battery Ageing Cabinet


Product Description
1.Equipment Application Scope and Function Introduction
1.1Scope of application:
The charge discharge test equipment is mainly used for the charge discharge cycle
test of lithium battery.



1.2Test Items:

Battery charging protection voltage, discharge protection voltage, capacity, etc. The
equipment has four test steps: charging, discharging, shelving and cycling. By editing
the corresponding steps, the battery can be tested according to the set process.



2.Main Performance of Test Equipment:

2.1 Charge Discharge Function:
It has constant current and constant voltage charging function and constant current
discharge function. It can charge and discharge the battery and record the battery
capacity.


Product Specification


Technical Parameter


Input Power Supply

 Measuring Range 7-70V

Accuracy ±(0.2% of reading +0.2% of range)



Current







 Charging Range 50-5000mA
Charging Accuracy ±(0.2% of reading +0.2% of range)
Discharge Range 50-10000mA
Discharge Accuracy ±(0.2% of reading +0.2% of range)
Charge Constant Voltage Cut-off Current Minimum 50mA
Capacity Accuracy ±1%
Power Discharge Power ≤700W
Time Inspection Time Real-time Collection<2S

Timing Range 0-999h/step
Data Recording Interval ≥5S
Middle Machine Version 1:1 series
Number of Passages Per Cabinet 12 channels, four rows and three column

Charge


 Charging Mode Constant Current and Constant Voltage Charging
Cut-off condition Voltage, Current, Relative Time, Overcharge Protection
Discharge Discharge mode Constant current discharge

Cut-off condition Voltage, Relative Time and Over-discharge Protection
Loop Cyclic measurement range 1-999 times

Single cycle step number 100
Voltage and Current Detection Sampling Four-wire sampling
Data Base Using SQL database to manage test data
Upper computer communication mode Based on TCP/IP Protocol/Serial Port
Data Output Mode EXCEL/TXT/Chart
Communication Interface Mesh port
Chassis dimensions 300x450x170mm
Cabinet size 900x600x1900mm
Spatial Dimension of Discharge Battery 900x600x130mm
Tags:

Anti Reverse battery cell testing equipment

5000mA battery discharge machine

Anti Backup battery discharge capacity tester
