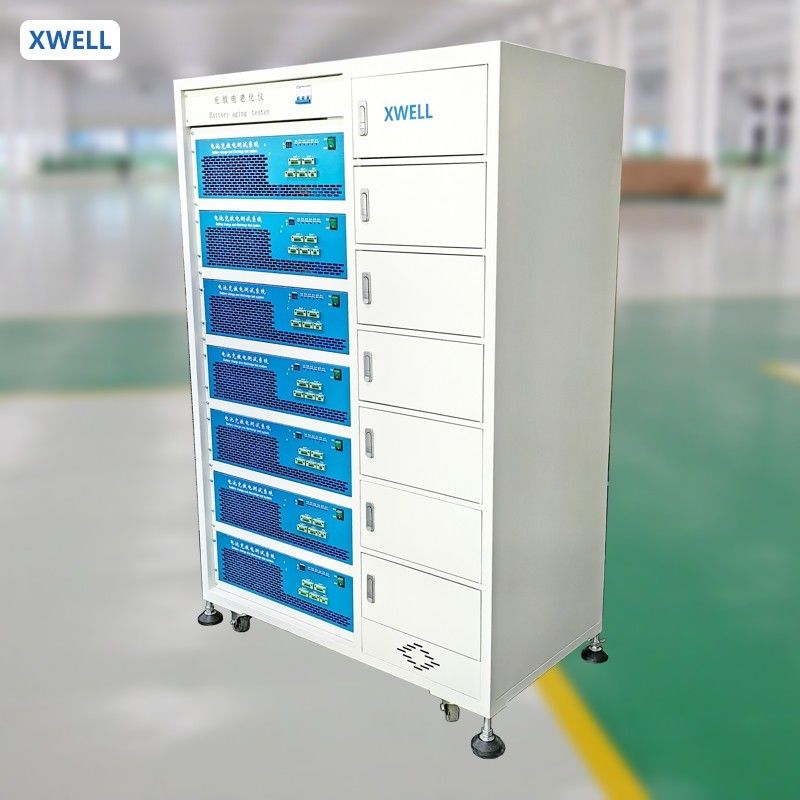

Battery Charge Discharge Tester Battery Aging Test Machine

Brand Name: XWELL
Model Number: BCDS70-05-10
MOQ: 1pcs
Price: USD 2000/pcs
Packaging Details: Wooden box
Payment Terms: T/T,Western Union,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
After-sales Service:
Provided
Type:
Semi-Automatic
Power Supply:
AC220V 50Hz
Charging Accuracy:
±(0.2% Of Reading +0.2% Of Range)
Discharge Range:
50-10000mA
Discharge Accuracy:
±(0.2% Of Reading +0.2% Of Range)
Constant Voltage Cut-off Current:
Minimum 50mA
Discharge Power:
≤700W
Inspection Time:
Real-time Collection<2S
Place Of Origin:
China
Supply Ability:
100 pcs per month
Highlight:

battery charge discharge tester

,

battery aging test machine

,

battery tester with warranty

Product Description

Battery Charge Discharge Tester Battery Aging Test Machine

Product Description

Aging machine is mainly used for charging and discharging cycle test of finished lithium battery packs. The test items includes: battery charging protection voltage, discharge protection voltage, capacity, etc. It has charging, discharging, testing, and circulating 4 test steps. By editing the steps of the plan, the battery can be tested according to the set process.

Product Features

  • Product characteristics:


    ♦ With PC software, USB hub, and router
    ♦ The computer is not configured locally, so the customer needs to buy it itself
    ♦ With constant current and constant pressure charging function
    ♦ The equipment has a constant current discharge function

    ♦ Fully meet the requirements of the battery pack charge and discharge outlets and charge and discharge outlets
    ♦ At the same time, aging positive plate can protect negative plate discharge protection
    ♦ By charging and discharge cycle of the battery, you can detect whether the charging protection and discharge protection of the battery are normal
    ♦ Charge and discharge cycle on the battery and record the charging capacity and discharge capacity


Product Specification


Technical Parameter


Input Power Supply

 Measuring Range 7-70V

Accuracy ±(0.2% of reading +0.2% of range)



Current







 Charging Range 50-5000mA
Charging Accuracy ±(0.2% of reading +0.2% of range)
Discharge Range 50-10000mA
Discharge Accuracy ±(0.2% of reading +0.2% of range)
Charge Constant Voltage Cut-off Current Minimum 50mA
Capacity Accuracy ±1%
Power Discharge Power ≤700W
Time Inspection Time Real-time Collection<2S

Timing Range 0-999h/step
Data Recording Interval ≥5S
Middle Machine Version 1:1 series
Number of Passages Per Cabinet 12 channels, four rows and three column

Charge


 Charging Mode Constant Current and Constant Voltage Charging
Cut-off condition Voltage, Current, Relative Time, Overcharge Protection
Discharge Discharge mode Constant current discharge

Cut-off condition Voltage, Relative Time and Over-discharge Protection
Loop Cyclic measurement range 1-999 times

Single cycle step number 100
Voltage and Current Detection Sampling Four-wire sampling
Data Base Using SQL database to manage test data
Upper computer communication mode Based on TCP/IP Protocol/Serial Port
Data Output Mode EXCEL/TXT/Chart
Communication Interface Mesh port
Chassis dimensions 300x450x170mm
Cabinet size 900x600x1900mm
Spatial Dimension of Discharge Battery 900x600x130mm
