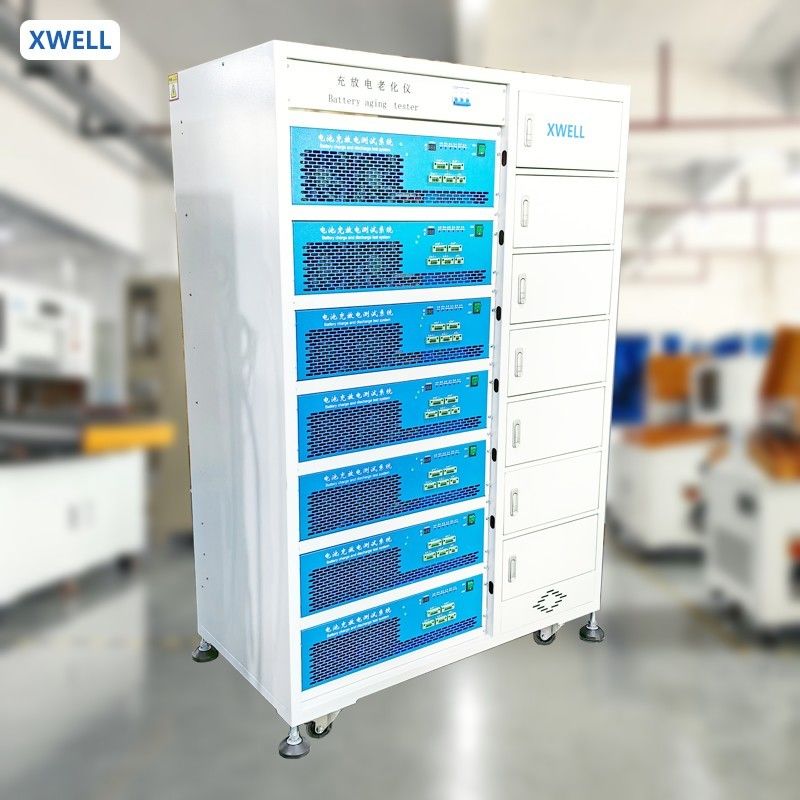

100V 10A Charging 20A EV Battery Pack aging machine

Brand Name: XWELL
Model Number: BCDS70-05-10
MOQ: 1pcs
Price: USD 2000/pcs
Packaging Details: Wooden box
Payment Terms: T/T,Western Union,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
After-sales Service:
Provided
Type:
Semi-Automatic
Power Supply:
AC220V 50Hz
Charging Accuracy:
±(0.2% Of Reading +0.2% Of Range)
Discharge Range:
50-10000mA
Discharge Accuracy:
±(0.2% Of Reading +0.2% Of Range)
Constant Voltage Cut-off Current:
Minimum 50mA
Discharge Power:
≤700W
Inspection Time:
Real-time Collection<2S
Place Of Origin:
China
Supply Ability:
100 pcs per month
Highlight:

100V 10A EV battery aging machine

,

20A battery pack aging tester

,

EV battery charging aging equipment

Product Description

100V 10A Charging 20A EV Battery Pack aging machine

Product Description

ACEY-BT3020-6 is mainly used for charging and discharging cycle test of finished lithium battery packs. The test items includes: battery charging protection voltage, discharge protection voltage, capacity, etc. It has charging, discharging, testing, and circulating 4 test steps. By editing the steps of the plan, the battery can be tested according to the set process.

Product Features

*Designed for 18650, 26650...lithium battery pack charge and discharge testing and aging after assembling.
*Suitable for: electric bicycle, swing bike, scooter, electric motorcycle, solar energy storage, large capacity energy storage, power tools battery pack
*Charging: Constant current and voltage charging
* Discharge: Constant current discharge
*Checking charging and discharging protection function
*Charging and discharging capacity recording
*Serial port and network connection function
*Computer online monitor, can manage max 254 point
*Store testing data in MYSQL, can review at any time


Product Specification


Technical Parameter


Input Power Supply

 Measuring Range 7-70V

Accuracy ±(0.2% of reading +0.2% of range)



Current







 Charging Range 50-5000mA
Charging Accuracy ±(0.2% of reading +0.2% of range)
Discharge Range 50-10000mA
Discharge Accuracy ±(0.2% of reading +0.2% of range)
Charge Constant Voltage Cut-off Current Minimum 50mA
Capacity Accuracy ±1%
Power Discharge Power ≤700W
Time Inspection Time Real-time Collection<2S

Timing Range 0-999h/step
Data Recording Interval ≥5S
Middle Machine Version 1:1 series
Number of Passages Per Cabinet 12 channels, four rows and three column

Charge


 Charging Mode Constant Current and Constant Voltage Charging
Cut-off condition Voltage, Current, Relative Time, Overcharge Protection
Discharge Discharge mode Constant current discharge

Cut-off condition Voltage, Relative Time and Over-discharge Protection
Loop Cyclic measurement range 1-999 times

Single cycle step number 100
Voltage and Current Detection Sampling Four-wire sampling
Data Base Using SQL database to manage test data
Upper computer communication mode Based on TCP/IP Protocol/Serial Port
Data Output Mode EXCEL/TXT/Chart
Communication Interface Mesh port
Chassis dimensions 300x450x170mm
Cabinet size 900x600x1900mm
Spatial Dimension of Discharge Battery 900x600x130mm
