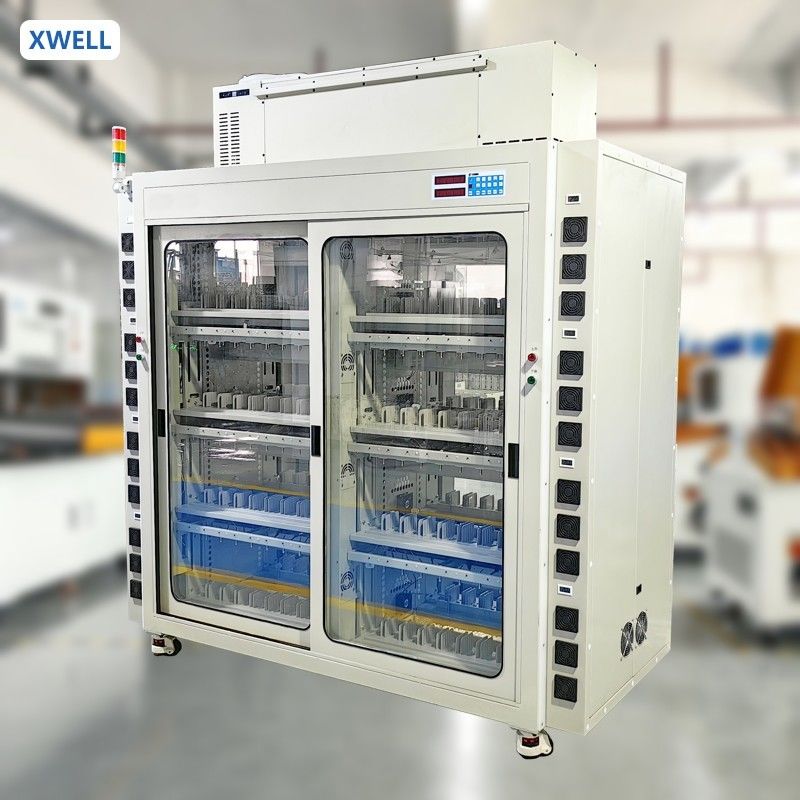

Prismatic Cell Capacity Grading Machine
  • Name

Prismatic Cell Capacity Grading Machine

Brand Name: XWELL
Model Number: XW-32
MOQ: 1pcs
Price: USD 7900/pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Charge Discharge Current:
120A
Total Channels Number:
32
Voltage And Current:
5V/10A; 5V/20A; 5V/30A
Heat Dissipation:
To Enter The Air Naturally And Exhaust The Air Upward
Overall Energy Saving:
Over 70%
Voltage Measuring Range:
0-5V, 1MV Resolution
Battery Voltage Range:
Charge 0-4.5V: Discharge 4.5-2V
Voltage Accuracy:
±(1‰ Reading +1‰ Full)
Control Mode:
Computer Connection Equipment Work, FCL Control
Supply Ability:
100 pcs per month
Highlight:

prismatic cell grading machine

,

battery capacity grading equipment

,

cell grading machine with warranty

Product Description
Prismatic Cell Capacity Grading Machine


Product Features


  • Each channel operates independently, allowing individual configuration of charging and discharging steps for every battery under test.
  • The equipment boasts a high precision of 0.05%, with data recorded at intervals of 1 second, ensuring exceptional stability.
  • The software is feature-rich and offers a user-friendly interface for seamless operation.
  • A four-wire test interface is employed to guarantee superior measurement accuracy.
  • Designed with a modular approach, the system is easy to maintain.





Software function


  • Independent CPU board, double keyboard board, front and back double side operation, the whole cabinet unified transmission control;
  • Constant current and constant voltage control module;
  • Bidirectional AC / DC inverter module;
  • Flat head clamp, electric automatic clamping model





Product Specification

Working power Three-phase five-wire system AC380V±10%, 50HZ
Work environment Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation to enter the air naturally and exhaust the air upward
Overall energy saving over 70%
Channel Parameter
Voltage measuring range 0-5V, 1MV resolution
Battery voltage range Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range 2.5V-4.5V
voltage accuracy ±(1‰ reading +1‰ full)
Current accuracy ±(1‰ reading +1‰ full)
Software Function
Control mode Computer connection equipment work, FCL control
Communication mode RS485 baud rate 57,600
Process set A maximum of 32 work steps and 256 cycles are se
Charging mode Constant current, constant pressure
Charging cutoff condition Voltage, current, time, capacity
Discharge constant current
Discharge cut-off condition Voltage, time, capacity
Defensive function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range Set it anywhere from 0 to 30,000 minutes
Time accuracy ≤±1‰
Sampling inspection period ≤3S
Minimum frequency of data recording ≤5S
Battery sorting By capacity, time, discharge platform, etc
Data processing Data, graphs, and loop diagrams



Prismatic Cell Capacity Grading Machine 0



Prismatic Cell Capacity Grading Machine 1



XWELL can provide different fixtures for different types of cells



Prismatic Cell Capacity Grading Machine 2

Prismatic Cell Capacity Grading Machine 3
