64 Channel Prismatic Battery Energy-Saving Capacity Grading Machine

Brand Name:	XWELL
Model Number:	XW-64
MOQ:	1pcs
Price:	USD 7900/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Charge Discharge Current:

120A

Total Channels Number:

Voltage And Current:

5V/10A; 5V/20A; 5V/30A

Heat Dissipation:

To Enter The Air Naturally And Exhaust The Air Upward

Overall Energy Saving:

Over 70%

Voltage Measuring Range:

0-5V, 1MV Resolution

Battery Voltage Range:

Charge 0-4.5V: Discharge 4.5-2V

Voltage Accuracy:

±(1‰ Reading +1‰ Full)

Control Mode:

Computer Connection Equipment Work, FCL Control

Supply Ability:

100 pcs per month

Highlight:

64 channel prismatic battery grading machine

energy-saving battery capacity grading machine

battery cell grading machine with warranty

Product Description

64 Channel Prismatic Battery Energy-Saving Capacity Grading Machine

Product Features

1. Product stability: Single-point independent constant current and constant voltage power supply, complete protection functions,
stable operation, selected materials, fine craftsmanship, higher service life than peers, and fast inspection speed.

2.Technical excellence: The feeder-type energy-saving mode design is adopted, which has high energy-saving efficiency,
flexibility, and humanized intelligent operation. The product linearity, accuracy and speed have reached high standards, and the
maintenance and upgrades are good for expansion.

Key Features

- Innovative Pressure-based Grading Mechanism: Setting a new standard in battery grading technology, our machine utilizes a pressure-based grading mechanism specifically tailored for prismatic batteries housed in aluminum shells. This innovative approach ensures precise and consistent grading results, enhancing overall battery quality and performance.

- Customizable Grading Parameters: Designed to accommodate the unique characteristics of prismatic aluminum shell batteries, our grading machine offers customizable grading parameters. Operators have the flexibility to adjust parameters such as pressure levels, cutoff voltage, and discharge characteristics to tailor the grading process to specific battery chemistries and performance specifications.

- Automated Grading Process: Engineered for seamless integration into production lines, our grading machine features an automated grading process. With advanced robotics and conveyor systems, batteries are efficiently handled and graded according to predefined criteria, minimizing manual intervention and maximizing throughput.

Product Specification

Working power			Three-phase five-wire system AC380V±10%, 50HZ
Work environment			Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation			to enter the air naturally and exhaust the air upward
Overall energy saving			over 70%
Channel Parameter
Voltage measuring range			0-5V, 1MV resolution
Battery voltage range			Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range			2.5V-4.5V
voltage accuracy			±(1‰ reading +1‰ full)
Current accuracy			±(1‰ reading +1‰ full)
Software Function
Control mode			Computer connection equipment work, FCL control
Communication mode			RS485 baud rate 57,600
Process set			A maximum of 32 work steps and 256 cycles are se
Charging mode			Constant current, constant pressure
Charging cutoff condition			Voltage, current, time, capacity
Discharge			constant current
Discharge cut-off condition			Voltage, time, capacity
Defensive function			Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range			Set it anywhere from 0 to 30,000 minutes
Time accuracy			≤±1‰
Sampling inspection period			≤3S
Minimum frequency of data recording			≤5S
Battery sorting			By capacity, time, discharge platform, etc
Data processing			Data, graphs, and loop diagrams

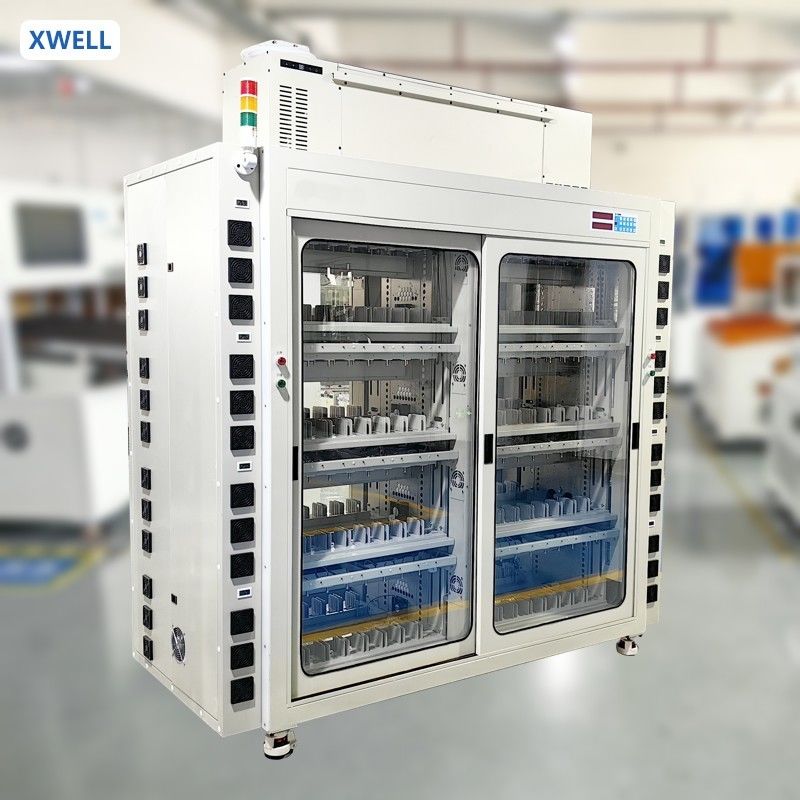

64 Channel Prismatic Battery Energy-Saving Capacity Grading Machine 0

64 Channel Prismatic Battery Energy-Saving Capacity Grading Machine 1

XWELL can provide different fixtures for different types of cells

64 Channel Prismatic Battery Energy-Saving Capacity Grading Machine 2

64 Channel Prismatic Battery Energy-Saving Capacity Grading Machine 3
