Battery Cell Grading Machine

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Battery Cell Sticking Machine

Mr. Sammy Qin

sammyqin@outlook.com

+8618620492985

+8618620492985

Contact Now

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester

Brand Name:	XWELL
Model Number:	XW-64
MOQ:	1pcs
Price:	USD 7900/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Customization:

Available

Cells:

Prismatic Cells

Voltage And Current:

5V/10A; 5V/20A; 5V/30A

Heat Dissipation:

To Enter The Air Naturally And Exhaust The Air Upward

Overall Energy Saving:

Over 70%

Voltage Measuring Range:

0-5V, 1MV Resolution

Battery Voltage Range:

Charge 0-4.5V: Discharge 4.5-2V

Voltage Accuracy:

±(1‰ Reading +1‰ Full)

Control Mode:

Computer Connection Equipment Work, FCL Control

Supply Ability:

100 pcs per month

Highlight:

5V30A lithium ion cell tester

high current battery capacity tester

prismatic cell grading machine

Product Description

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester

Professional battery testing equipment:

Different channels can be customized according to customer requirements, and the current and voltage are unified, its suitable for mass production.

*Each channel can be started and stopped at a single point, and the response speed is fast.
*The operation is simple, convenient and intuitive
*Modular design, easy to maintain.
*The digital current and voltage automatic calibration function
*Using network connection and SQL database
*The hardware technology is advanced, stable and durable.

Advantage Feature

1.Each battery test channel has an independent voltage and current loop design, which is stable and impact-free. It can realize functions such as start, stop, pause, continue and protection for a single battery channel.

2.The charge and discharge current accuracy and voltage accuracy of each channel are automatically calibrated through software.

3.The equipment accuracy is 0.05%, ensuring high stability of measurement and operation.

4.The test channel software and hardware protection has complete battery protection functions: over-voltage, under-voltage, over-current, under-current, over-capacity protection, power-off protection, data breakpoint recovery, reverse battery connection hardware protection, etc.

Product Specification

Working power			Three-phase five-wire system AC380V±10%, 50HZ
Work environment			Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation			to enter the air naturally and exhaust the air upward
Overall energy saving			over 70%
Channel Parameter
Voltage measuring range			0-5V, 1MV resolution
Battery voltage range			Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range			2.5V-4.5V
voltage accuracy			±(1‰ reading +1‰ full)
Current accuracy			±(1‰ reading +1‰ full)
Software Function
Control mode			Computer connection equipment work, FCL control
Communication mode			RS485 baud rate 57,600
Process set			A maximum of 32 work steps and 256 cycles are se
Charging mode			Constant current, constant pressure
Charging cutoff condition			Voltage, current, time, capacity
Discharge			constant current
Discharge cut-off condition			Voltage, time, capacity
Defensive function			Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range			Set it anywhere from 0 to 30,000 minutes
Time accuracy			≤±1‰
Sampling inspection period			≤3S
Minimum frequency of data recording			≤5S
Battery sorting			By capacity, time, discharge platform, etc
Data processing			Data, graphs, and loop diagrams

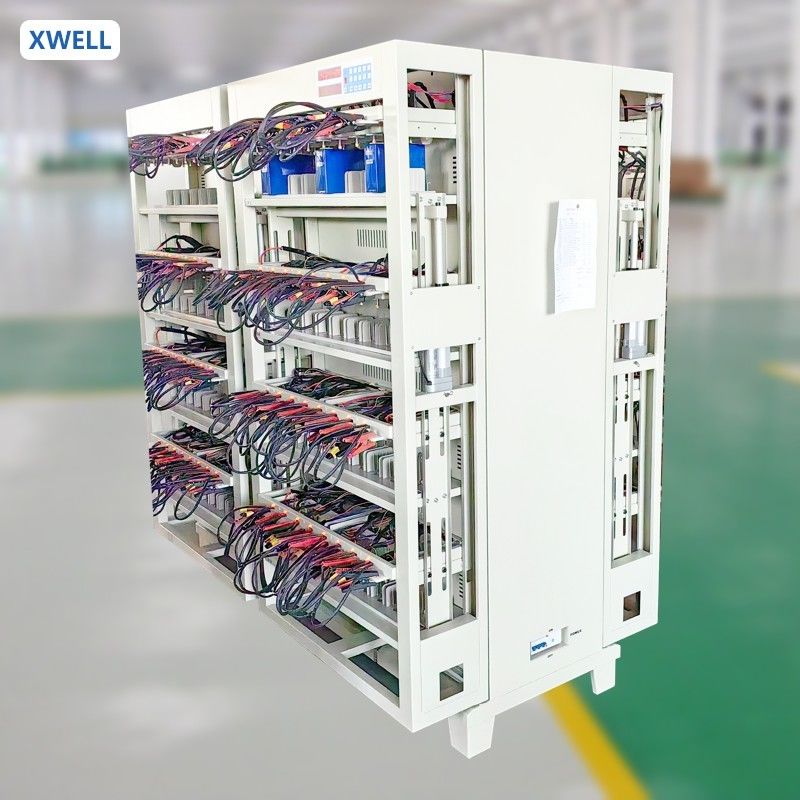

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester 0

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester 1

XWELL can provide different fixtures for different types of cells

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester 2

5V10A 5V20A 5V30A High Current Lithium Ion Prismatic Cell Capacity Tester 3
