Prismatic Cell Battery Grading Machine

Brand Name: XWELL
Model Number: XW-32
MOQ: 1pcs
Price: USD 7900/pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Channels:
32
Customized Service:
Yes
Voltage And Current:
5V/10A; 5V/20A; 5V/30A
Heat Dissipation:
To Enter The Air Naturally And Exhaust The Air Upward
Overall Energy Saving:
Over 70%
Voltage Measuring Range:
0-5V, 1MV Resolution
Battery Voltage Range:
Charge 0-4.5V: Discharge 4.5-2V
Voltage Accuracy:
±(1‰ Reading +1‰ Full)
Control Mode:
Computer Connection Equipment Work, FCL Control
Supply Ability:
100 pcs per month
Highlight:

prismatic cell grading machine with warranty

,

battery cell grading machine for prismatic cells

,

automated prismatic battery grading equipment

Product Description
Prismatic Cell Battery Grading Machine



Product overview:

The prismatic cell battery grading machine grades the prismatic cell capacity by performing several charge-discharge cycle tests on prismatic cells to obtain accurate battery capacity.

For battery cell manufacturers, the battery grading machine is one of the necessary machines in the cell manufacturing process.

For battery pack assemblers, battery capacity testing and grading must be carried out before assembling the battery pack, cells with high capacity consistency are grouped, and then the prismatic cell sorting machine is used for OCV/IR testing and sorting, thereby improving the consistency of the cells in the same battery pack, so as to assemble the battery pack with the best performance.



1. Basic composition of equipment

The equipment is mainly composed of computer, communication interface and battery detection cabinet. The battery detection cabinet is composed of a fixture and a board for placing the fixture, a constant current and constant voltage source, a storage control circuit, a sampling circuit, a single-chip microcomputer and a control panel.





Product Specification

Working power Three-phase five-wire system AC380V±10%, 50HZ
Work environment Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation to enter the air naturally and exhaust the air upward
Overall energy saving over 70%
Channel Parameter
Voltage measuring range 0-5V, 1MV resolution
Battery voltage range Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range 2.5V-4.5V
voltage accuracy ±(1‰ reading +1‰ full)
Current accuracy ±(1‰ reading +1‰ full)
Software Function
Control mode Computer connection equipment work, FCL control
Communication mode RS485 baud rate 57,600
Process set A maximum of 32 work steps and 256 cycles are se
Charging mode Constant current, constant pressure
Charging cutoff condition Voltage, current, time, capacity
Discharge constant current
Discharge cut-off condition Voltage, time, capacity
Defensive function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range Set it anywhere from 0 to 30,000 minutes
Time accuracy ≤±1‰
Sampling inspection period ≤3S
Minimum frequency of data recording ≤5S
Battery sorting By capacity, time, discharge platform, etc
Data processing Data, graphs, and loop diagrams

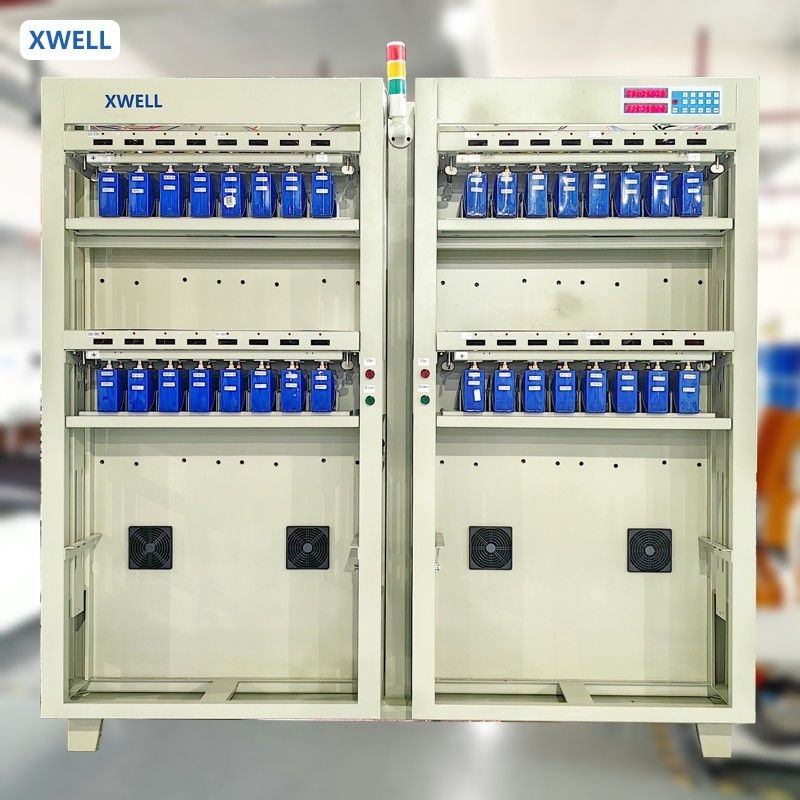

Prismatic Cell Battery Grading Machine 0



Prismatic Cell Battery Grading Machine 1



XWELL can provide different fixtures for different types of cells



Prismatic Cell Battery Grading Machine 2

Prismatic Cell Battery Grading Machine 3
