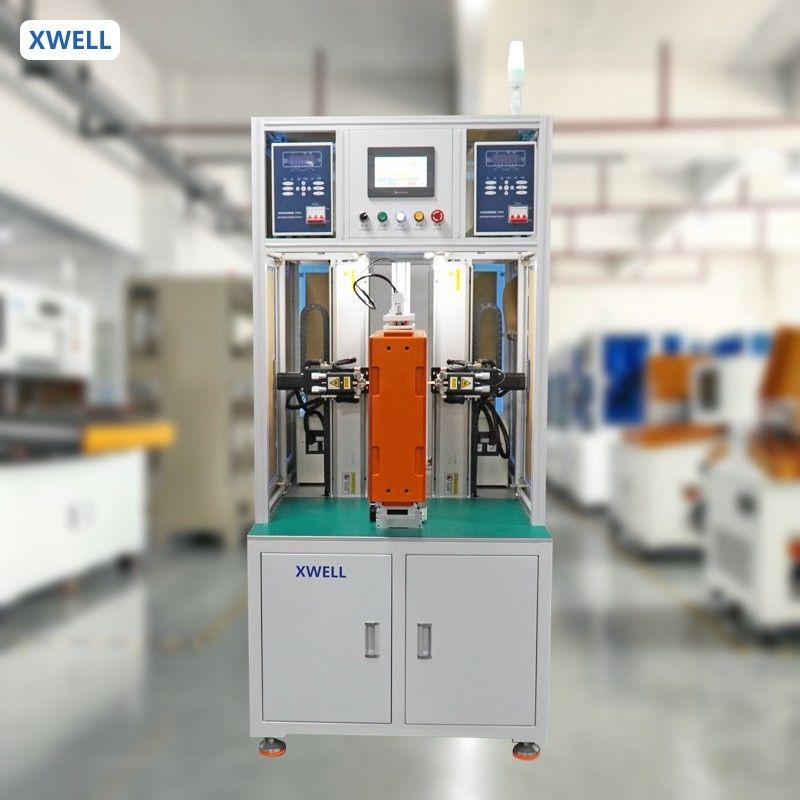

Double Side Automatic Spot Welding Machine For New Energy Vehicle

Brand Name: XWELL
Model Number: MD-ADW
MOQ: 1pcs
Price: USD 11000 - 15000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Type:
Automatic
Welder Number:
2
Power Source:
5000A / 8000A / 10000A Optional
Efficiency:
3800pcs/h
Equipment Stroke:
500*350 (mm) About 760 18650 Cells
Electrode Material:
Alumina Copper
Drive Form:
Pure Motor Drive
Maximum Load Capacity:
200-400pcs(standard 18650 Lithium Battery)
Operating System:
Embedded System + Man - Machine Screen
Transmission Mode:
Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw)
Supply Ability:
100pcs per month
Highlight:

double side spot welding machine

,

automatic battery pack welder

,

new energy vehicle welder

Product Description

Double Side Automatic Spot Welding Machine For New Energy Vehicle

Feature:
1) Most Durable Spot Welding Machine
2) Most Energy Saving CNC Welding Machine
3) Most easy operative Spot Welding Machine. Our welding machines are all well bested in good condition before delivery. Once the clients receive our machines, just need connect air pressure and electronic wire, cooling water, it is ok to run.
4) Fastest Welding Machine. Capacity is important to factory. To use less labour, and more productive, our welding machines can reach your goal.
5)Our company has excellent development and design and production team, more than 70% of the products for non-standard custom, welcome to sample custom equipment.

  • SCN
  • Guangdong,China
  • 5 days
  • 20 sets per month


Product Advantages


1. Manual programming, CAD map, easy to learn, production line workers can be fully competent.
2. Production counting function, set the production quantity, and automatically stop when the output is completed.
3. Welding needle compensation function, set the number of welding needles, and automatically remind the welding needle maintenance when the number is reached
4. Aluminum alloy frame, imported acrylic guard plate, beautiful and elegant, strong sense of technology, visual operation to improve production safety factor.


Product Specification



Product Name: lithium battery double-sided rotation 6-axis automatic spot welding machine
Brand name: XWELL
Input voltage: 220V±10% 50Hz
Model number: MD-ADW
Welding voltage: 220V/380V(Optional)
Power source: Optional
Efficiency:3800pcs/h
Thickness of welding nickel sheet: 0.08mm-0.25mm
Drive form: Pure motor drive
Scope of application: Various cylindrical lithium batteries
Machining accuracy: 0.01ms
Welding method: Plane double needle welding
Welding speed:0.7-0.8ms/piece
Cooling method of welding needle:circulating water cooling
Number of file groups that can be saved: unlimited
Overall dimensions: 1100L*900W*1130Hmm
Shaft stroke: Y-axis:500mm,Z-axis:350mm (customizable)


Product Application


With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.


Product Operation


1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack)."
