Lithium Battery Spot Welding Machine

Double-Sided Spot Welding Machine For 18650 Battery Electrode Sheet

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Battery Cell Sticking Machine

Mr. Sammy Qin

sammyqin@outlook.com

+8618620492985

+8618620492985

Contact Now

Double-Sided Spot Welding Machine For 18650 Battery Electrode Sheet

Brand Name:	XWELL
Model Number:	MD-ADW
MOQ:	1pcs
Price:	USD 11000 - 15000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Compliance:

CE Certified

Payment:

L/C D/A D/P T/T Western Union

Operate System:

Embedded System

User Interface:

Touch Screen

Power Source:

5000A / 8000A / 10000A Optional

Efficiency:

3800pcs/h

Equipment Stroke:

500*350 (mm) About 760 18650 Cells

Maximum Load Capacity:

200-400pcs(standard 18650 Lithium Battery)

Operating System:

Embedded System + Man - Machine Screen

Transmission Mode:

Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw)

Supply Ability:

100pcs per month

Highlight:

double-sided 18650 battery spot welder

lithium battery electrode welding machine

18650 battery spot welder with warranty

Product Description

Double-Sided Spot Welding Machine For 18650 Battery Electrode Sheet

1. System overview:

1. Support breakpoint startup and Manual Start Mode Conversion.

2. High efficiency of double-sided automatic welding.

3. With welding current monitoring system, it can monitor welding current in real time.

4.Water-cooled circulating heat dissipation system is used in the self-contained welding needle compensation function to effectively reduce the loss of welding needles.

Features

1. Support breakpoint start, automatic start, and manual start.

2. Cold solder joint and sealing off alarm.

3. Easy program, support matrix, array and point program, can store 100 group parameters.

4. Welding needle abrasion alarm.

5. Build-in welding current monitor, can display real time welding current.

6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other

lithium battery packs spot welding.

7. Can be matched with the production line of lithium battery group.

8. Can store dozens process of different battery packs product, switching products without re-setting parameters.

Product Specification

SPECIFICATIONS FOR MD-ASW AND MD-ADW
	MD-ASW	MD-ADW
Welding Head Number	1	2
Travel	X: 400mm; Y: 400mm	Y: 500mm; Z: 350mm
Welding Spped	0.5s/spot, 2000-2500pcs/h	0.5s/spot, 3500-4000pcs/h
Welder Power Suppler	5000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	450 pcs (18650)
Operate System	Embedded system
User Interface	Touch screen
Drive Mode	Step motor and precision guide rail
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Air Pressure	0.3-0.6 MPa
Machine Size	900L900W1750Hmm	1100L900W1930Hmm
Machine Weight	200kg	350kg

Product Application

MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

Double side spot welder details

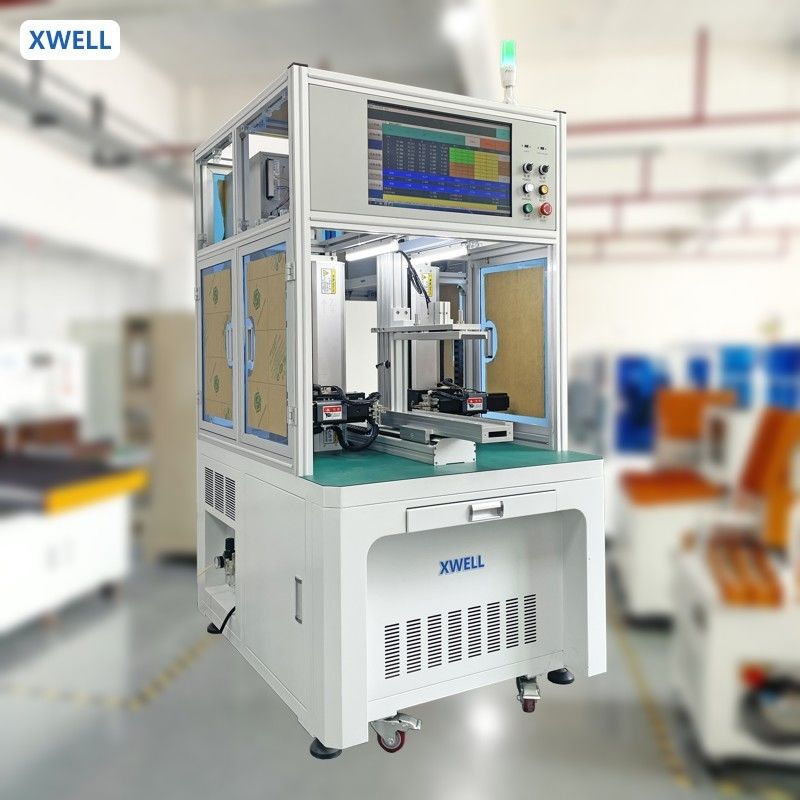

Double-Sided Spot Welding Machine For 18650 Battery Electrode Sheet 0

Double-Sided Spot Welding Machine For 18650 Battery Electrode Sheet 1

Cylindrical battery pack welding samples

Double-Sided Spot Welding Machine For 18650 Battery Electrode Sheet 2

Double-Sided Spot Welding Machine For 18650 Battery Electrode Sheet 3

Double-Sided Spot Welding Machine For 18650 Battery Electrode Sheet 4
