Lithium Battery Spot Welding Machine

Automatic CNC Double Sides Spot Welding Machine W Transistor Welding Power Supply

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Battery Cell Sticking Machine

Mr. Sammy Qin

sammyqin@outlook.com

+8618620492985

+8618620492985

Contact Now

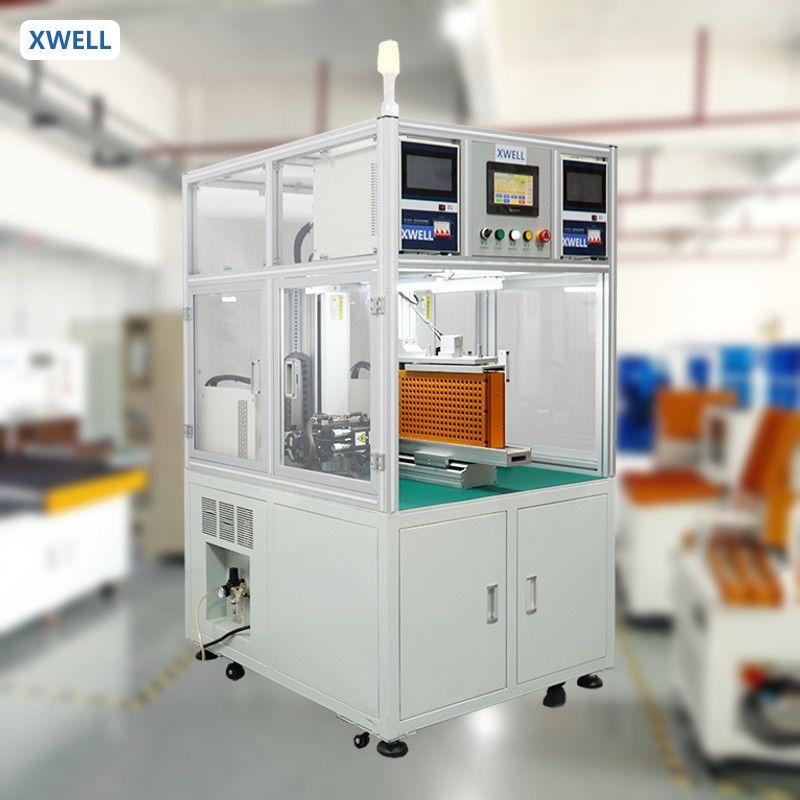

Automatic CNC Double Sides Spot Welding Machine W Transistor Welding Power Supply

Brand Name:	XWELL
Model Number:	MD-ADW
MOQ:	1pcs
Price:	USD 11000 - 15000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Compliance:

CE Certified

Payment:

L/C D/A D/P T/T Western Union

Operate System:

Embedded System

User Interface:

Touch Screen

Power Source:

5000A / 8000A / 10000A Optional

Efficiency:

3800pcs/h

Equipment Stroke:

500*350 (mm) About 760 18650 Cells

Maximum Load Capacity:

200-400pcs(standard 18650 Lithium Battery)

Operating System:

Embedded System + Man - Machine Screen

Transmission Mode:

Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw)

Supply Ability:

100pcs per month

Highlight:

CNC double sides spot welding machine

transistor welding power supply

lithium battery spot welder

Product Description

Automatic CNC Double Sides Spot Welding Machine W Transistor Welding Power Supply

1. System overview:

The double-sides automatic spot welding machine supports breakpoint start, and is equipped with 6000A / 8000A Transistor power supply. It can weld pure nickel sheet less than 0.2mm and steel nickel sheet more than 0.3. Bump welding is required. Double sided automatic welding, high efficiency. Programming is simple. It supports any point programming, array programming and graphic import, and can store 99 groups of programming files. The prediction of welding needle replacement reminds that the welding head adopts water-cooled circulating heat dissipation to effectively reduce the loss of welding needle and improve the welding effect. The self-contained welding current monitoring system can monitor the welding current, with false welding alarm function, and can monitor the welding in real time.

2.Workflow:

Manual discharge of nickel sheet and cell

Clamp into automatic workbench

Programming and debugging setting parameters

Start equipment

Product Specification

SPECIFICATIONS FOR MD-ASW AND MD-ADW
	MD-ASW	MD-ADW
Welding Head Number	1	2
Travel	X: 400mm; Y: 400mm	Y: 500mm; Z: 350mm
Welding Spped	0.5s/spot, 2000-2500pcs/h	0.5s/spot, 3500-4000pcs/h
Welder Power Suppler	5000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	450 pcs (18650)
Operate System	Embedded system
User Interface	Touch screen
Drive Mode	Step motor and precision guide rail
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Air Pressure	0.3-0.6 MPa
Machine Size	900L900W1750Hmm	1100L900W1930Hmm
Machine Weight	200kg	350kg

Product Application

MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

Double side spot welder details

Automatic CNC Double Sides Spot Welding Machine W Transistor Welding Power Supply 0

Automatic CNC Double Sides Spot Welding Machine W Transistor Welding Power Supply 1

Cylindrical battery pack welding samples

Automatic CNC Double Sides Spot Welding Machine W Transistor Welding Power Supply 2

Automatic CNC Double Sides Spot Welding Machine W Transistor Welding Power Supply 3

Automatic CNC Double Sides Spot Welding Machine W Transistor Welding Power Supply 4
