Battery CCD Tester

Brand Name: XWELL
Model Number: XW-CCD
MOQ: 1 PCS
Price: USD3000-5000/PCS
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Light Source:
Special Light Source
CT Test Time:
3-4 S
Test Speed:
0.1-500mm/min
Working Voltage:
AC 220V 50Hz~60Hz
Itinerary:
200mm
Control Method:
Computer Control
Voltage Range:
0-150V
Charge Current:
20A
Sustainable Load Power:
6KW
Data Output:
EXCEL,TXT
Test Temperature:
130C+2.0℃;( No-load Test)
Minimum Air Pressure:
5.0KPa
Communication Means:
TCP/IP Protocol
Electric Axis Stroke:
≥450mm
Supply Ability:
20 PCS a month
Highlight:

Battery CCD tester for diagnostics

,

Battery pack testing machine

,

CCD tester for battery analysis

Product Description

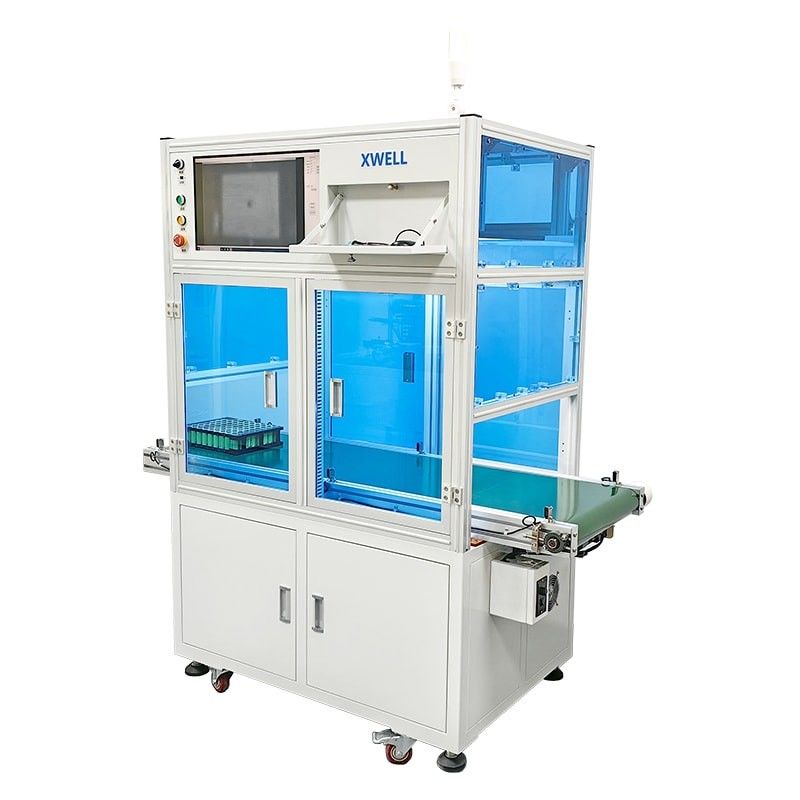

Battery CCD Tester

1. Function description

CCD Tester(visual inspection machine) are used in battery pack assembly production lines to replace human eyes and automatically identify whether the positive and negative electrode of cylindrical battery cells or modules are in the correct orientation with high speed, high precision, and fatigue-free, thus preventing serious safety accidents caused by reverse connection.



Features:

  • The equipment is equipped with sound and light alarm, fault alarm, etc.
  • Operating parameters can be freely set according to the actual requirements of customers.
  • Suitable for the polarity detection of a variety of batteries, saving labor costs and being able to perform highly repetitive tasks.
  • CCD visual inspection can work stably for a long time, with good reliability and high detection accuracy.



Process Flow
The cell enters the detection area→Sampling scan→Positive and negative detection→→NG automatic detection→OK







Parameter

item value
Power supply AC220V/50Hz
Power 600W
Suitable for cell 14430, 14500, 18500, 18620, 21700, 26650...
Inspection size 400*300 mm, customizable
Inspection degree 360°
Inspection speed 1 s/pcs
Merchine Size L850*W80



Details:

Battery CCD Tester 0
