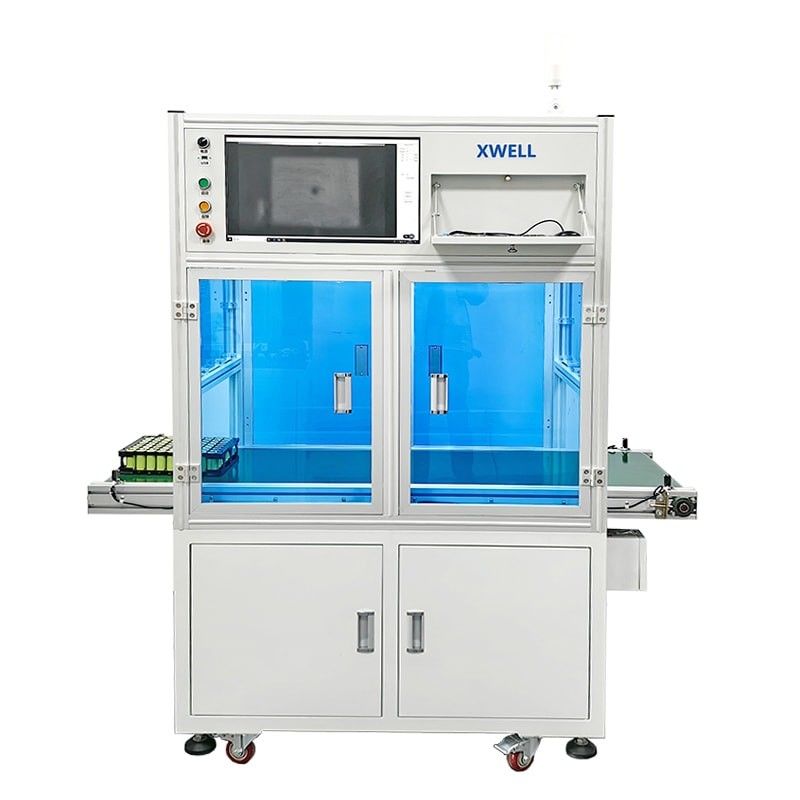

CCD Tester For Battery Pack

Brand Name: XWELL
Model Number: XW-CCD
MOQ: 1 PCS
Price: USD3000-5000/PCS
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Item:
CCD Tester For Battery Pack
Warranty:
1 Year
Test Speed:
0.1-500mm/min
Working Voltage:
AC 220V 50Hz~60Hz
Itinerary:
200mm
Control Method:
Computer Control
Voltage Range:
0-150V
Charge Current:
20A
Sustainable Load Power:
6KW
Data Output:
EXCEL,TXT
Test Temperature:
130C+2.0℃;( No-load Test)
Minimum Air Pressure:
5.0KPa
Communication Means:
TCP/IP Protocol
Electric Axis Stroke:
≥450mm
Supply Ability:
20 PCS a month
Highlight:

CCD battery pack tester

,

battery pack testing machine with warranty

,

CCD tester for battery diagnostics

Product Description

  CCD Tester For Battery Pack

1. Function description

CCD vision inspection equipment refers to the machine vision products CCD image sensor will be taken in the target into an image signal, transmitted to the special image processing system, according to the pixel distribution and brightness, color and other information, into a digital signal; image system to these signals for a variety of operations to extract the characteristics of the target, and then according to the results of the discrimination to control the field of equipment action of a kind of inspection equipment.



Features:

  • The equipment is equipped with sound and light alarm, fault alarm, etc.
  • Operating parameters can be freely set according to the actual requirements of customers.
  • Suitable for the polarity detection of a variety of batteries, saving labor costs and being able to perform highly repetitive tasks.
  • CCD visual inspection can work stably for a long time, with good reliability and high detection accuracy.



2. Process flow

Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging





Parameter

item value
Power supply AC220V/50Hz
Power 600W
Suitable for cell 14430, 14500, 18500, 18620, 21700, 26650...
Inspection size 400*300 mm, customizable
Inspection degree 360°
Inspection speed 1 s/pcs
Merchine Size L850*W80



Details:

CCD Tester For Battery Pack 0
