Automatic Spot Welding Machine Single Side Spot Welding
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Application: | He Spot Welding Machine Can Weld Cylindrical Battery Packs Such As 18650, 26650, 32650; | Max. Welding Thickness: | 0.3mm |
|---|---|---|---|
| Battery Types: | Cylindrical Cell | Operate System: | Embedded System |
| User Interface: | Touch Screen | Power Source: | 5000A / 8000A / 10000A Optional |
| Efficiency: | 3800pcs/h | Equipment Stroke: | 500*350 (mm) About 760 18650 Cells |
| Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) | Operating System: | Embedded System + Man - Machine Screen |
Product Description

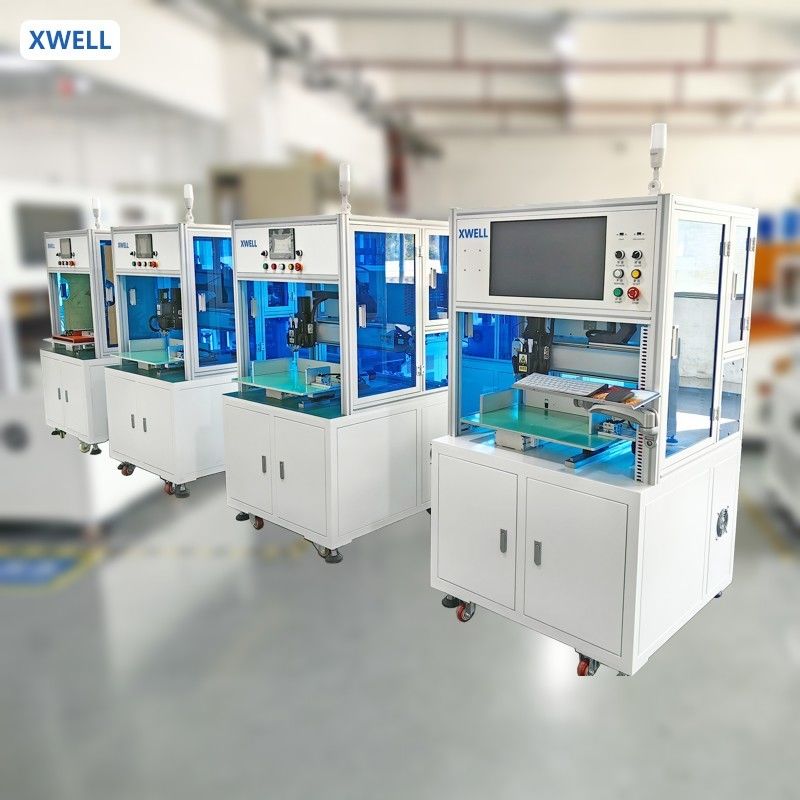

Automatic Spot Welding Machine Single Side Spot Welding
Product description:
The single-sided automatic battery pack spot welding machine is an important equipment for cylindrical battery pack assembly.
The spot welding machine can weld cylindrical battery packs such as 18650, 26650, 32650 with customized fixtures, and can also customize various cylindrical batteries, square batteries, button batteries, etc.
Features:
- 5000A invert spot welding power supply,high quanlity welding effect;
- Servo motor driving, fast, stable welding;
- Programmable welding process, canproduce any shape battery pack;
- Real-time welding effect monitoring,warning for NG welding spot;
- Used for 18650, 26650.. battery pack welding, such as E-bike, scooter, and electromobile battery pack welding.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
