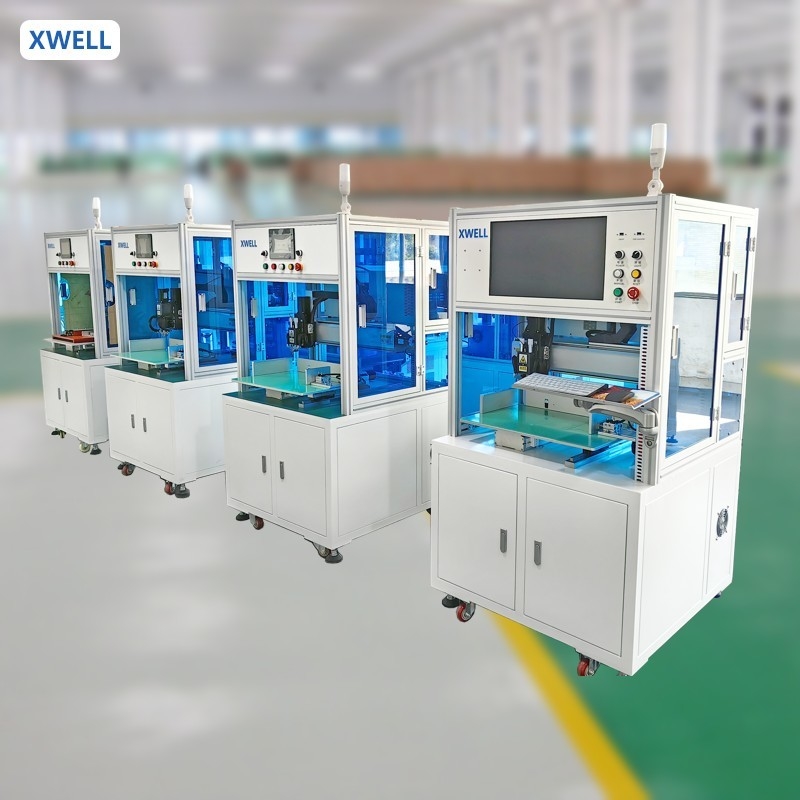

Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder

Brand Name: XWELL
Model Number: MD-ADW
MOQ: 1pcs
Price: USD 11000 - 15000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Battery Types:
Cylindrical Cell
Head Number:
2 Pcs
Operate System:
Embedded System
User Interface:
Touch Screen
Power Source:
5000A / 8000A / 10000A Optional
Efficiency:
3800pcs/h
Equipment Stroke:
500*350 (mm) About 760 18650 Cells
Maximum Load Capacity:
200-400pcs(standard 18650 Lithium Battery)
Operating System:
Embedded System + Man - Machine Screen
Transmission Mode:
Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw)
Supply Ability:
100pcs per month
Highlight:

tab type lithium battery spot welder

,

cylindrical core spot welding machine

,

automatic single side spot welder

Product Description

Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder




Main functions:

Cylindrical single-sided automatic welding of the cylindrical cells


The cylindrical battery pack is automatically welded with BMS PCB nickel pad



Product characteristics:



♦ The warranty has the warranty is two years
♦ Equipment debugging is easy to learn easy to understand, change the model speed is fast
♦ The device has three spot welding data input, array input and U disk input
♦ Point welding specification welding can be set (different current welding for positive and negative electrodes)
♦ Current is too small or abnormal machine automatic alarm and stop operation during welding


Product Specification


SPECIFICATIONS FOR MD-ASW AND MD-ADW
  MD-ASW MD-ADW
Welding Head Number
1
2
Travel
X: 400mm; Y: 400mm
Y: 500mm; Z: 350mm
Welding Spped
0.5s/spot, 2000-2500pcs/h
0.5s/spot, 3500-4000pcs/h
Welder Power Suppler
5000A Inverter Spot Welder
Max Motor Speed
1000mm/s
Max Battery Number
450 pcs (18650)
Operate System
Embedded system
User Interface
Touch screen
Drive Mode
Step motor and precision guide rail
Power Supply
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Air Pressure
0.3-0.6 MPa
Machine Size
900L*900W*1750Hmm
1100L*900W*1930Hmm
Machine Weight
200kg
350kg


Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

Double side spot welder details


Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder 0

Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder 1


Cylindrical battery pack welding samples


Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder 2

Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder 3

Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder 4
