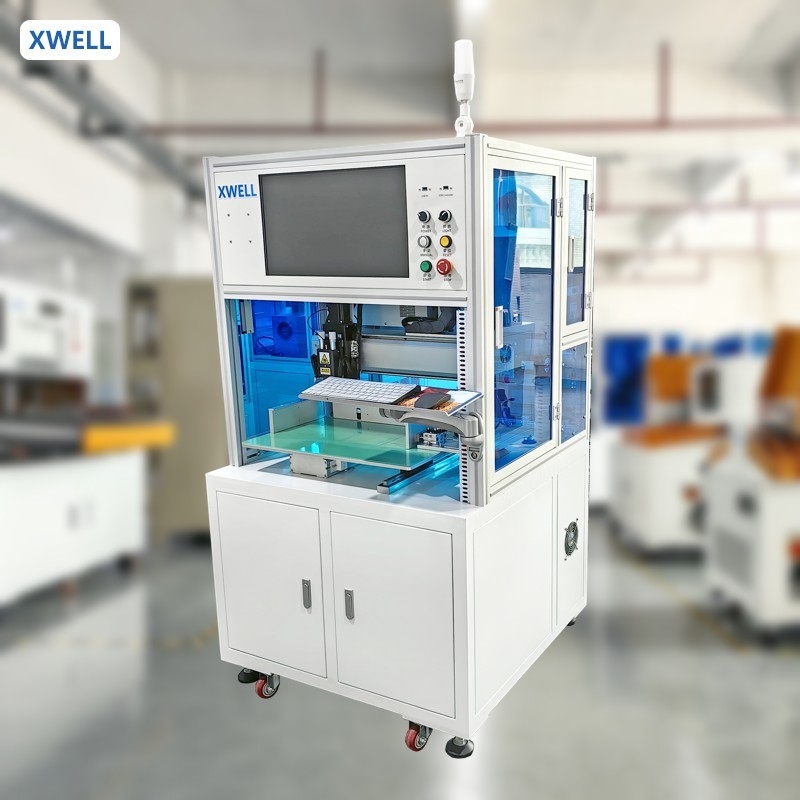

Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly

Brand Name: XWELL
Model Number: MD-ADW
MOQ: 1pcs
Price: USD 11000 - 15000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Battery Types:
Cylindrical Cell
Head Number:
2 Pcs
Operate System:
Embedded System
User Interface:
Touch Screen
Power Source:
5000A / 8000A / 10000A Optional
Efficiency:
3800pcs/h
Equipment Stroke:
500*350 (mm) About 760 18650 Cells
Maximum Load Capacity:
200-400pcs(standard 18650 Lithium Battery)
Operating System:
Embedded System + Man - Machine Screen
Transmission Mode:
Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw)
Supply Ability:
100pcs per month
Highlight:

18650 battery spot welding machine

,

automatic cylindrical battery welder

,

single-side lithium battery welder

Product Description

Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly

Product description:

The machine is suitable for automatic 18650 battery cells single-side spot welding of nickel strips in cylindrical battery components, the highly automated human-machine interface makes it very easy to operate. Through manual loading and simple settings, the battery pack welding process can be completed, and to ensure that the welding tension band or nickel between the battery and the nickel strips is greater than 30N.



Scope of application:

Automatic 18650/ 21700/ 26650/ 32650 cylindrical battery pack single-side spot welding machine for battery assembly, it is suitable for energy storage battery, electric bicycle batteries, power battery…


Product Specification


SPECIFICATIONS FOR MD-ASW AND MD-ADW
  MD-ASW MD-ADW
Welding Head Number
1
2
Travel
X: 400mm; Y: 400mm
Y: 500mm; Z: 350mm
Welding Spped
0.5s/spot, 2000-2500pcs/h
0.5s/spot, 3500-4000pcs/h
Welder Power Suppler
5000A Inverter Spot Welder
Max Motor Speed
1000mm/s
Max Battery Number
450 pcs (18650)
Operate System
Embedded system
User Interface
Touch screen
Drive Mode
Step motor and precision guide rail
Power Supply
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Air Pressure
0.3-0.6 MPa
Machine Size
900L*900W*1750Hmm
1100L*900W*1930Hmm
Machine Weight
200kg
350kg


Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

Double side spot welder details


Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly 0

Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly 1


Cylindrical battery pack welding samples


Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly 2

Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly 3

Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly 4
