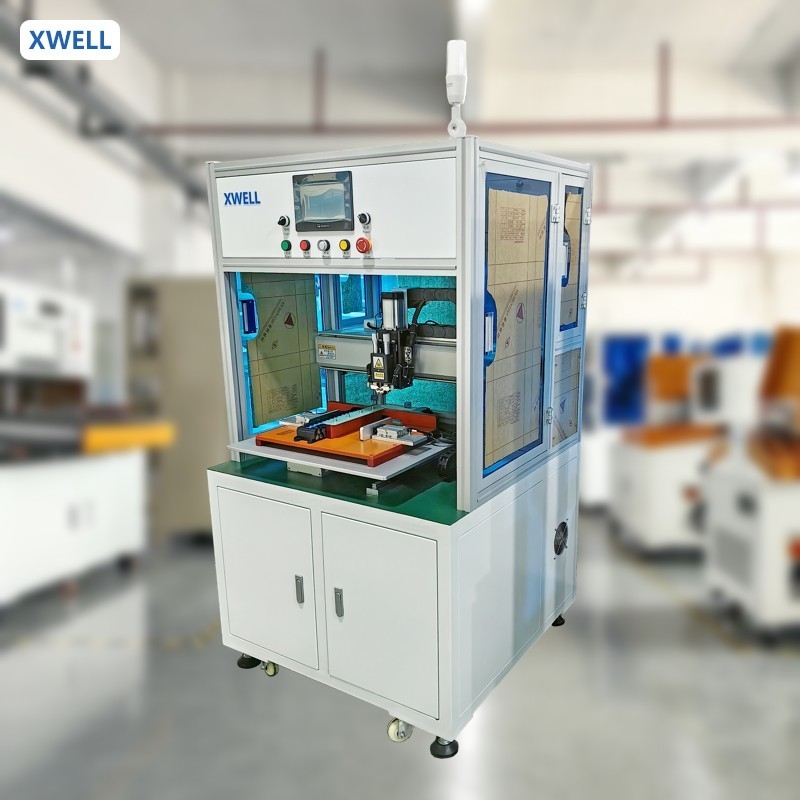

8000A Transistor Power Supply Single Sided Automatic Battery Spot Welding Machine With PC
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Battery Types: | Cylindrical Cell | Head Number: | 2 Pcs |
|---|---|---|---|
| Operate System: | Embedded System | User Interface: | Touch Screen |
| Power Source: | 5000A / 8000A / 10000A Optional | Efficiency: | 3800pcs/h |
| Equipment Stroke: | 500*350 (mm) About 760 18650 Cells | Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) |
| Operating System: | Embedded System + Man - Machine Screen | Transmission Mode: | Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw) |
| Highlight: | 8000A transistor spot welder,single-sided battery spot welding machine,PC-controlled lithium spot welder |
||
Product Description
8000A Transistor Power Supply Single Sided Automatic Battery Spot Welding Machine With PC
Products Description
MD-ADW is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700/33140 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Features
- Support breakpoint start, automatic start, and manual start.
- Easy program, support matrix, array and point program, can store 100 group parameters.
- Welding needle abrasion alarm.
- Build-in welding current monitor, can display real time welding current.
- Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
- lithium battery packs spot welding.
- Can be matched with the production line of lithium battery group.
- Can store dozens process of different battery packs product, switching products without re-setting parameters.
- Can match a variety brand of spot welders.
Product Specification
SPECIFICATIONS FOR MD-ASW AND MD-ADW | |||
| MD-ASW | MD-ADW | ||
Welding Head Number | 1 | 2 | |
Travel | X: 400mm; Y: 400mm | Y: 500mm; Z: 350mm | |
Welding Spped | 0.5s/spot, 2000-2500pcs/h | 0.5s/spot, 3500-4000pcs/h | |
Welder Power Suppler | 5000A Inverter Spot Welder | ||
Max Motor Speed | 1000mm/s | ||
Max Battery Number | 450 pcs (18650) | ||
Operate System | Embedded system | ||
User Interface | Touch screen | ||
Drive Mode | Step motor and precision guide rail | ||
Power Supply | 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder) | ||
Air Pressure | 0.3-0.6 MPa | ||
Machine Size | 900L*900W*1750Hmm | 1100L*900W*1930Hmm | |
Machine Weight | 200kg | 350kg | |
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
