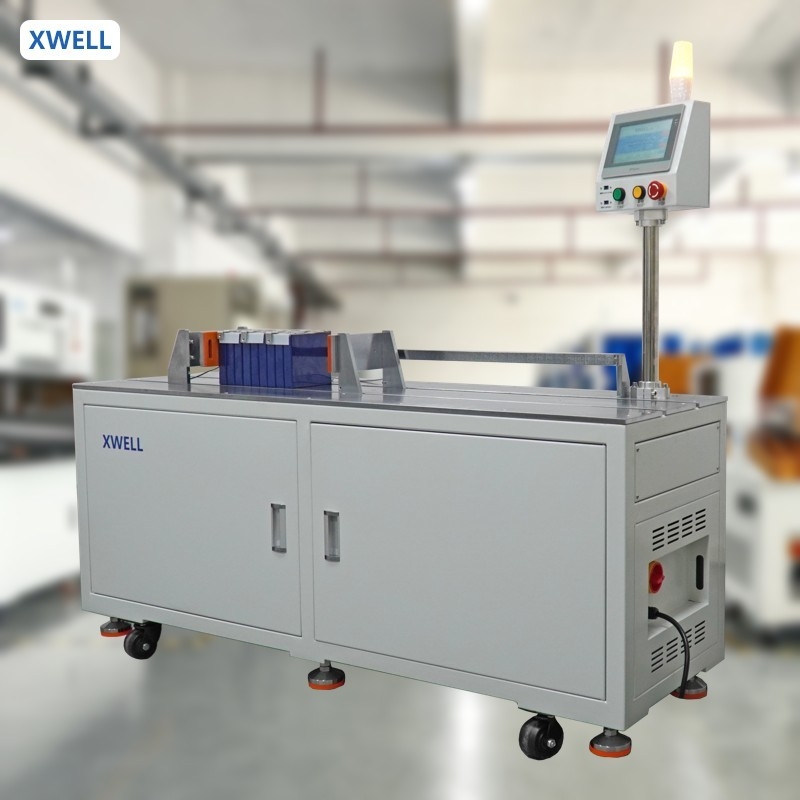

Prismatic Lithium Battery Cell Stacking And Pressing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-PC12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability: | 100 pcs/month |
|
Detail Information |
|||
| Model: | XW-PC12 | Max Travel: | 1200mm |
|---|---|---|---|
| Control System: | PLC | User Interface: | Touch Screen Software |
| Driver: | Servo Motor | Transmission: | Bearings And Screw |
| Highlight: | lithium battery cell stacking machine,battery cell pressing machine with warranty,prismatic battery pack production machine |
||
Product Description
Guangdong Xwell Technology Co., Ltd. is a comprehensive company with 21 years of experience in the new energy battery industry. To create more economic value and offer one-step service, we combine all knowledge and resources to provide complete solutions in the battery industry, including battery laboratory equipment, battery production equipment, battery pack equipment, laser welding machines, plastic ultrasonic welding machines, metal ultrasonic spot welding machines, wire ultrasonic welding machines, and most accessories. We have exported to over 60 countries worldwide in the past 10 years and have passed CE safety certification. With rich technology and capital resources, we emphasize new product innovation, introducing at least one new machine design annually. Creating value for customers first is our path to achieving self-worth. We look forward to cooperating with you!
Description
XW-PC12 is for prismatic battery cell stacking extruder is suitable for prismatic lithium batteries to be stacked and extruded into shape and bundling machine. It adopts servo motor+screw module+planetary reducer for stacking and extruding, controlled by pressure controller, the extrusion stacking thrust reaches more than 100KG, easy to operate, it can control the stacking and extruding stroke and stacking pressure in time, with the triple protection function of software limitation, hardware limitation, and pressure limitation, which won't be over-extruding the batteries and has high controllability in the precision of extruding.
2.11 Real time monitoring of extrusion distance and extrusion pressure dual protection, each parameter can be adjusted through PLC；
| Attribute | Value |
|---|---|
| Model | XW-PC12 |
| Max travel | 1200mm |
| Control system | PLC |
| User interface | Touch screen software |
| Driver | Servo motor |
| Transmission | Bearings and screw |
Guangdong Xwell Technology Co., Ltd. is a comprehensive company with 21 years experience in new energy battery industry. We provide complete solutions in battery industry including laboratory equipment, production equipment, pack equipment, and various welding machines. Our products have been exported to more than 60 countries and we have passed CE safety certification.
The XW-PC12 prismatic battery cell stacking extruder is suitable for prismatic lithium batteries to be stacked and extruded into shape. It adopts servo motor + screw module + planetary reducer for stacking and extruding, controlled by pressure controller with extrusion stacking thrust reaching more than 100KG. The machine features triple protection function of software limitation, hardware limitation, and pressure limitation.
- 7-inch touch screen with PLC for control, easy to operate
- Adapt to various size of batteries with editable parameters
- Built-in high-precision pressure sensor (accuracy within 0.1KG)
- Screw module + servo motor + reducer for large extrusion output force
- High positioning accuracy (0.01mm)
| Item | Name | Parameter |
|---|---|---|
| 1 | Model | XW-PC10 |
| 2 | Max travel | 1000mm |
| 3 | Control system | PLC |
| 4 | User interface | Touch screen software |
| 5 | Driver | Servo motor |
| 6 | Transmission | Bearings and screw |
| 7 | Pressure measure | High precision pressure sensor |
| 8 | Position accuracy | 0.01mm |
| 9 | Pressure accuracy | 0.1kg |
| 10 | Power supply | AC220V/50Hz |
| 11 | Power | 2KW |
| 12 | Size | 1500*500*1500mm |
| 13 | Weight | 200kg |
