Good price online

products details

Home > Products >
Battery Pack Testing Machine
>
Cylindrical Battery Positive And Negative Visual Inspection Machine Cylindrical Battery Pack Polarity Detection CCD Tester
All Category

Battery Pack Welding Machine

Battery Pack Production Machine

Battery Pack Testing Machine

Lithium Battery Spot Welding Machine

Battery Laser Welding Machine

Battery Raw Material

Ultrasonic Battery Welder

BMS Testing Machine

Battery Aging Machine

Battery Cell Sorting Machine

Battery Cell Grading Machine

Battery Cell Sticking Machine
Contact Us
Mr. Sammy Qin
sammyqin@outlook.com
+8618620492985
wechat +8618620492985
Contact Now
  • name
  • name

Cylindrical Battery Positive And Negative Visual Inspection Machine Cylindrical Battery Pack Polarity Detection CCD Tester

Brand Name: XWELL
Model Number: XW-CCD
MOQ: 1 PCS
Price: USD3000-5000/PCS
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Customization:
Available
Warranty:
1 Year
Test Speed:
0.1-500mm/min
Working Voltage:
AC 220V 50Hz~60Hz
Itinerary:
200mm
Control Method:
Computer Control
Voltage Range:
0-150V
Charge Current:
20A
Sustainable Load Power:
6KW
Data Output:
EXCEL,TXT
Test Temperature:
130C+2.0℃;( No-load Test)
Minimum Air Pressure:
5.0KPa
Communication Means:
TCP/IP Protocol
Electric Axis Stroke:
≥450mm
Supply Ability:
20 PCS a month
Highlight:

cylindrical battery polarity tester

,

battery pack visual inspection machine

,

CCD battery polarity detection

Product Description

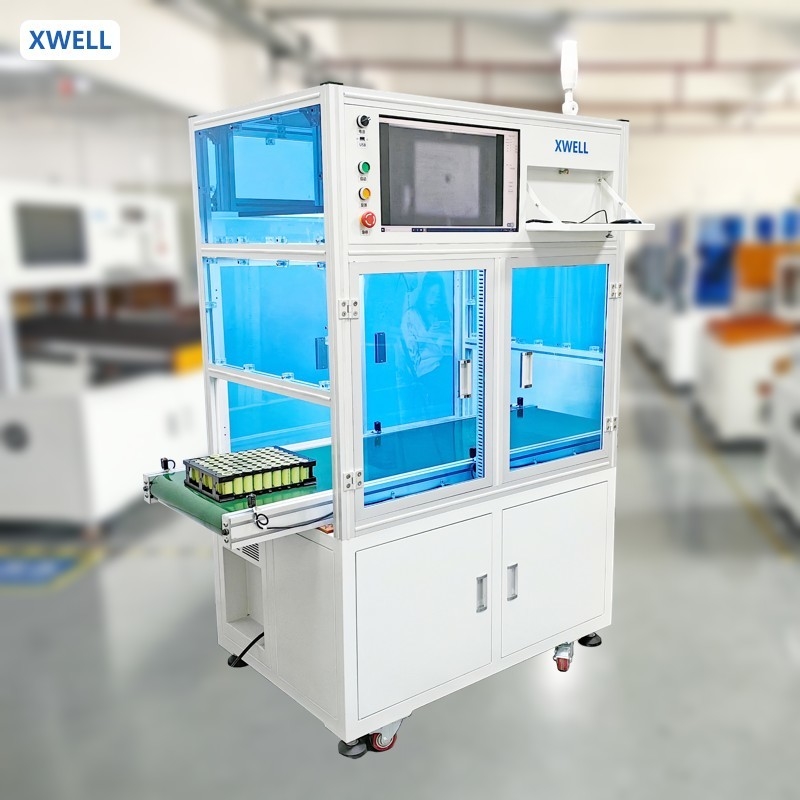

        Cylindrical Battery Positive And Negative Visual Inspection Machine Cylindrical Battery Pack Polarity Detection CCD Tester



Introduction:

XW-CCD is a multi-purpose CCD visual inspection system using machine vision technology based on CCD industrial camera. It is suitable for the polarity detection of a variety of batteries, saving labor costs and being able to perform highly repetitive tasks. CCD visual inspection can work stably for a long time, with good reliability and high detection accuracy.





Mechanical Structure

1.XY axis travel:400*300mm
2.Motor transmission speed:300mm/S
3.Operating system: industrial computer + camera
4.Tester method: single machine detection
5.Repeated positioning accuracy: ± 0.1mm
6.Detection efficiency: 1s /pcs
7.Overall power: 500W
8.Operating weight: 150kg
9.Maximum bearing weight: 60kg
10.Input power supply: single phase AC 220v/50hz



Parameter

item value
Power supply AC220V/50Hz
Power 600W
Suitable for cell 14430, 14500, 18500, 18620, 21700, 26650...
Inspection size 400*300 mm, customizable
Inspection degree 360°
Inspection speed 1 s/pcs
Merchine Size L850*W80



Details:

Cylindrical Battery Positive And Negative Visual Inspection Machine Cylindrical Battery Pack Polarity Detection CCD Tester 0
