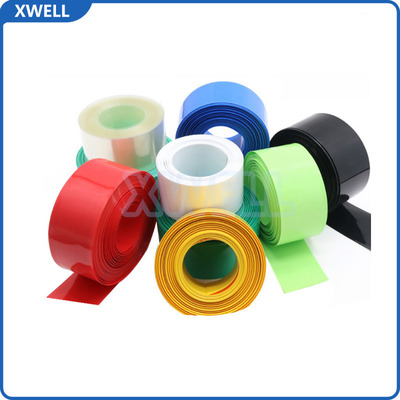

Colorful Pvc Heat shrink packaging 5Mm-600Mm Flat Width Battery Skin Heat Shrinkable Film Cover For Batteries
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | Pvc Heat shrink packaging |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD $0.1~$1000 |
| Packaging Details: | Carton |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T,Western Union,L/C,D/A,D/P |
| Supply Ability: | 10000 pcs per month |
|
Detail Information |
|||
| Type: | Insulation Sheet | Material: | PVC |
|---|---|---|---|
| Application: | High Temperature | Tensile Strength: | N/A |
| Usage: | Battery Pack | Thickness: | 0.08/0.1/0.15mm |
| Feature: | Waterproof | Sample: | Sample Avaliable |
| Highlight: | PVC heat shrink battery film,colorful battery shrink wrap,heat shrinkable battery cover film |
||
Product Description
Colorful Pvc Heat shrink packaging 5Mm-600Mm Flat Width Battery Skin Heat Shrinkable Film Cover For Batteries
Product Overview
Our PVC heat shrink tube boasts flame retardancy, eco-friendliness, insulation, softness, stable performance, low shrinkage temp, and fast contraction. Mainly for battery packing, it can be customized into colors like grey, purple, green, orange, and yellow. Often used for 18650 and 21700 batteries.
Key Features
- The shrink wrap is for covering your custom battery packs as well as other products
- For the best result use Hot Air Gun but if there is not Hot Air Gun available you can use a hair dryer to evenly heat up the wrap to shrink until it is tightly wrapped around the battery pack.
- It's approx 0.1mm thick with approx. 2:1 shrink ratio.
- Shrinking rate: cross section: 48% +/-5; longitudinal: 15% +/-3
- Shrinking temperature: 80℃
- Flame Retardant
Technical Specifications
| Width (mm) | Thickness (mm) | Meters per kilogram (Meter) |
|---|---|---|
| 30 | 0.08 | 148.8 |
| 32 | 0.08 | 139.5 |
| 120 | 0.1 | 29.8 |
| 125 | 0.1 | 28.6 |
| 130 | 0.12 | 22.9 |
| 135 | 0.12 | 22.0 |
| 140 | 0.12 | 21.3 |
| 145 | 0.12 | 20.5 |
| 150 | 0.12 | 19.8 |
| 160 | 0.15 | 14.9 |
| 170 | 0.15 | 14.0 |
| 180 | 0.15 | 13.2 |
| 190 | 0.15 | 12.5 |
| 200 | 0.15 | 11.9 |
| 210 | 0.15 | 11.3 |
| 220 | 0.15 | 10.8 |
| 230 | 0.15 | 10.4 |
| 240 | 0.15 | 9.9 |
| 250 | 0.15 | 9.5 |
Applications
PVC is sell by kilogram, blue color we have in stock with small MOQ, other colors MOQ is 20KG, different size price is different,Please be noted there is 2-3mm tolerances for size below 260mm, above 260mm size tolerance is 3-5mm
Why Choose Us?
- Safety Compliant: Meets UL and IEC standards for electrical insulation.
- Customizable: Special colors or sizes available for OEM projects.
- Cost-Effective: Bulk pricing for large orders.
