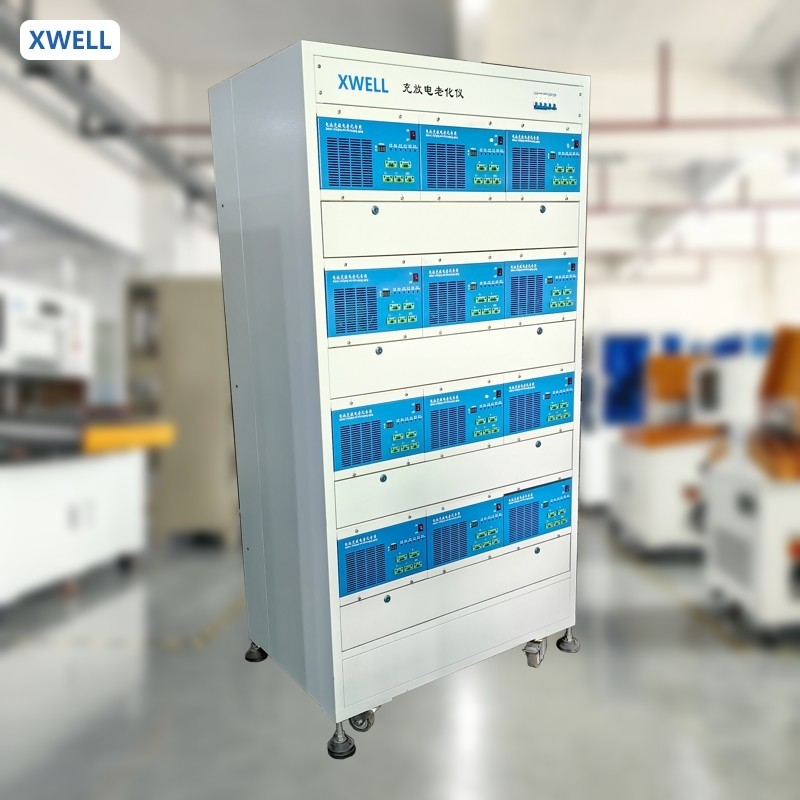

100V 20A Charge 40A Discharge Battery Aging Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BCDS70-05-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Compliance: | CE Certified | Type: | Semi-Automatic |
|---|---|---|---|
| Power Supply: | AC220V 50Hz | Charging Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Discharge Range: | 50-10000mA | Discharge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Constant Voltage Cut-off Current: | Minimum 50mA | Discharge Power: | ≤700W |
| Inspection Time: | Real-time Collection<2S | ||
| Highlight: | 100V battery aging machine,20A charge battery tester,40A discharge battery analyzer |
||
Product Description
100V 20A Charge 40A Discharge Battery Aging Machine
Equipment Function
- Charging and discharging function: with constant current and voltage charging function, constant current discharging function, charging and discharging of the battery, recording the battery capacity.
- Charging and discharging interface: fully meet the requirements of battery pack charging and discharging with the same port and charging and discharging sub-port, i.e. 2 wires (P+ P-), 3 wires (P+ P- C-) and positive plate charging protection, negative pole charging protection. 3 wires (P+ P- C-) and positive plate charge protection, negative plate discharge protection of power tool batteries (CH+ P+ P-).
- Checking voltage protection:detecting whether the battery charge protection and discharge protection are working by charging and discharging the battery.
- Safety protection:anti-reverse connection protection function, power-down data protection, support continuous measurement, voltage upper and lower limit setting protection, and
- safe discharge current protection.
- Online mode: the instrument can be connected to PC through serial port for single unit or less than 5 units; for more than 5 units, a network connection mode is adopted and a network port is provided at the PC side to control up to 30 units.
- Control system: The software system adopts the classical and mature C/S mode, with two modes of communication: serial port can achieve accurate communication of several instruments in short distance, and network can achieve accurate communication of multiple instruments in long distance.
Product Specification
| Technical Parameter | ||
|
Input Power Supply |
Measuring Range | 7-70V |
| Accuracy | ±(0.2% of reading +0.2% of range) | |
|
Current
|
Charging Range | 50-5000mA |
| Charging Accuracy | ±(0.2% of reading +0.2% of range) | |
| Discharge Range | 50-10000mA | |
| Discharge Accuracy | ±(0.2% of reading +0.2% of range) | |
| Charge | Constant Voltage Cut-off Current | Minimum 50mA |
| Capacity | Accuracy | ±1% |
| Power | Discharge Power | ≤700W |
| Time | Inspection Time | Real-time Collection<2S |
| Timing Range | 0-999h/step | |
| Data Recording Interval | ≥5S | |
| Middle Machine Version | 1:1 series | |
| Number of Passages Per Cabinet | 12 channels, four rows and three column | |
|
Charge
|
Charging Mode | Constant Current and Constant Voltage Charging |
| Cut-off condition | Voltage, Current, Relative Time, Overcharge Protection | |
| Discharge | Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, Relative Time and Over-discharge Protection | |
| Loop | Cyclic measurement range | 1-999 times |
| Single cycle step number | 100 | |
| Voltage and Current Detection Sampling | Four-wire sampling | |
| Data Base | Using SQL database to manage test data | |
| Upper computer communication mode | Based on TCP/IP Protocol/Serial Port | |
| Data Output Mode | EXCEL/TXT/Chart | |
| Communication Interface | Mesh port | |
| Chassis dimensions | 300x450x170mm | |
| Cabinet size | 900x600x1900mm | |
| Spatial Dimension of Discharge Battery | 900x600x130mm | |
