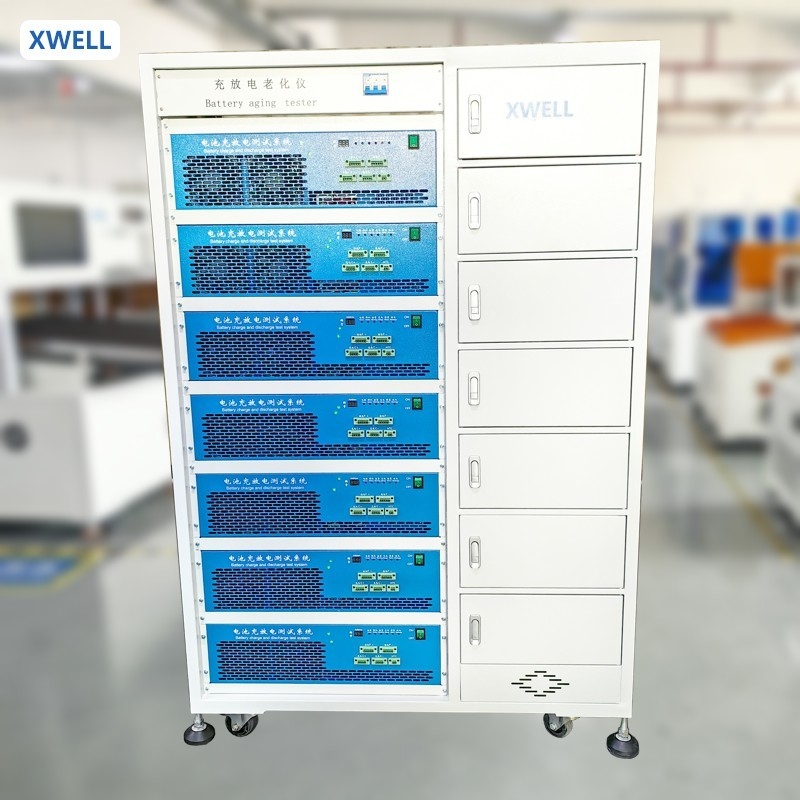

60V 10A Charge 10A Discharge Battery Pack Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BCDS70-05-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Compliance: | CE Certified | Type: | Semi-Automatic |
|---|---|---|---|
| Power Supply: | AC220V 50Hz | Charging Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Discharge Range: | 50-10000mA | Discharge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Constant Voltage Cut-off Current: | Minimum 50mA | Discharge Power: | ≤700W |
| Inspection Time: | Real-time Collection<2S | ||
| Highlight: | 60V battery pack testing machine,10A discharge battery aging machine,battery pack tester with charge function |
||
Product Description
60V 10A Charge 10A Discharge Battery Pack Testing Machine
Functions
- Battery pack cycle life test
- Battery pack capacity test
- Battery pack charge/discharge characteristics test
- Battery pack temperature characteristics test
Advantages
1. Voltage and current accuracy ± (0.1%RD+0.1%FS), data recording time 5S/time, high stability.
2. The whole cabinet can hold 36 channels. Can be set for independent charging and discharging conditions after free grouping for each channel.
3. complete input and output, software and hardware protection, reverse connection protection, power failure renewal, short circuit protection, etc.
4. Channel start without inrush current, constant current to constant voltage seamlessly over, without any current surges
5. Network integrated management, a computer centralized control, support remote monitoring
Product Specification
| Technical Parameter | ||
|
Input Power Supply |
Measuring Range | 7-70V |
| Accuracy | ±(0.2% of reading +0.2% of range) | |
|
Current
|
Charging Range | 50-5000mA |
| Charging Accuracy | ±(0.2% of reading +0.2% of range) | |
| Discharge Range | 50-10000mA | |
| Discharge Accuracy | ±(0.2% of reading +0.2% of range) | |
| Charge | Constant Voltage Cut-off Current | Minimum 50mA |
| Capacity | Accuracy | ±1% |
| Power | Discharge Power | ≤700W |
| Time | Inspection Time | Real-time Collection<2S |
| Timing Range | 0-999h/step | |
| Data Recording Interval | ≥5S | |
| Middle Machine Version | 1:1 series | |
| Number of Passages Per Cabinet | 12 channels, four rows and three column | |
|
Charge
|
Charging Mode | Constant Current and Constant Voltage Charging |
| Cut-off condition | Voltage, Current, Relative Time, Overcharge Protection | |
| Discharge | Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, Relative Time and Over-discharge Protection | |
| Loop | Cyclic measurement range | 1-999 times |
| Single cycle step number | 100 | |
| Voltage and Current Detection Sampling | Four-wire sampling | |
| Data Base | Using SQL database to manage test data | |
| Upper computer communication mode | Based on TCP/IP Protocol/Serial Port | |
| Data Output Mode | EXCEL/TXT/Chart | |
| Communication Interface | Mesh port | |
| Chassis dimensions | 300x450x170mm | |
| Cabinet size | 900x600x1900mm | |
| Spatial Dimension of Discharge Battery | 900x600x130mm | |
