Good price online

products details

Home > Products >
Battery Aging Machine
>
70V Aging Cabinet Lithium Battery Pack 5A Charging 10A Discharging Aging Tester
All Category

Battery Pack Welding Machine

Battery Pack Production Machine

Battery Pack Testing Machine

Lithium Battery Spot Welding Machine

Battery Laser Welding Machine

Battery Raw Material

Ultrasonic Battery Welder

BMS Testing Machine

Battery Aging Machine

Battery Cell Sorting Machine

Battery Cell Grading Machine

Battery Cell Sticking Machine
Contact Us
Mr. Sammy Qin
sammyqin@outlook.com
+8618620492985
wechat +8618620492985
Contact Now
  • name
  • name

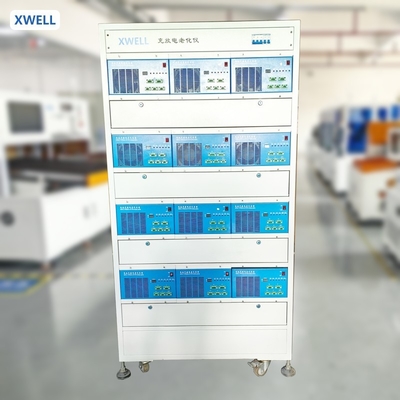

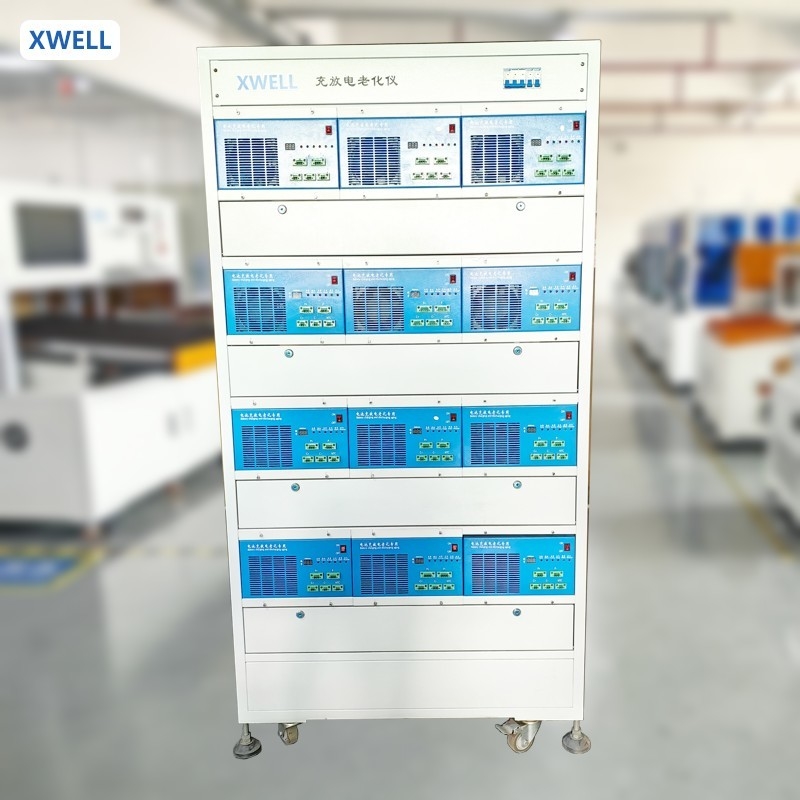

70V Aging Cabinet Lithium Battery Pack 5A Charging 10A Discharging Aging Tester

Brand Name: XWELL
Model Number: BCDS70-05-10
MOQ: 1pcs
Price: USD 2000/pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Compliance:
CE Certified
Type:
Semi-Automatic
Power Supply:
AC220V 50Hz
Charging Accuracy:
±(0.2% Of Reading +0.2% Of Range)
Discharge Range:
50-10000mA
Discharge Accuracy:
±(0.2% Of Reading +0.2% Of Range)
Constant Voltage Cut-off Current:
Minimum 50mA
Discharge Power:
≤700W
Inspection Time:
Real-time Collection<2S
Supply Ability:
100 pcs per month
Highlight:

70V lithium battery aging cabinet

,

5A charging battery tester

,

10A discharging aging machine

Product Description

70V Aging Cabinet Lithium Battery Pack 5A Charging 10A Discharging Aging Tester



Features





*Designed for 18650,21700, 26650,32650,32700...lithium battery pack charge and discharge testing and aging after assembling.

*Suitable for: electric bicycle, swing bike, scooter, electric motorcycle, solar energy storage, large capacity energy storage, power tools battery pack

*Charging: Constant current and voltage charging

* Discharge: Constant current discharge

*Checking charging and discharging protection function

*Charging and discharging capacity recording

*Serial port and network connection function

*Computer online monitor, can manage max 254 point

*Store testing data in MYSQL, can review at any time





Product Specification



Technical Parameter



Input Power Supply

 Measuring Range 7-70V
  Accuracy ±(0.2% of reading +0.2% of range)





Current













 Charging Range 50-5000mA
Charging Accuracy ±(0.2% of reading +0.2% of range)
Discharge Range 50-10000mA
Discharge Accuracy ±(0.2% of reading +0.2% of range)
Charge Constant Voltage Cut-off Current Minimum 50mA
Capacity Accuracy ±1%
Power Discharge Power ≤700W
Time Inspection Time Real-time Collection<2S
  Timing Range 0-999h/step
Data Recording Interval ≥5S
Middle Machine Version 1:1 series
Number of Passages Per Cabinet 12 channels, four rows and three column

Charge



 Charging Mode Constant Current and Constant Voltage Charging
Cut-off condition Voltage, Current, Relative Time, Overcharge Protection
Discharge Discharge mode Constant current discharge
  Cut-off condition Voltage, Relative Time and Over-discharge Protection
Loop Cyclic measurement range 1-999 times
  Single cycle step number 100
Voltage and Current Detection Sampling Four-wire sampling
Data Base Using SQL database to manage test data
Upper computer communication mode Based on TCP/IP Protocol/Serial Port
Data Output Mode EXCEL/TXT/Chart
Communication Interface Mesh port
Chassis dimensions 300x450x170mm
Cabinet size 900x600x1900mm
Spatial Dimension of Discharge Battery 900x600x130mm
Tags:

Anti Reverse battery cell testing equipment

5000mA battery discharge machine

Anti Backup battery discharge capacity tester
