PLC Controlled Prismatic Battery Cell Stacking Press Machine

Brand Name:	XWELL
Model Number:	XW-PC12
MOQ:	1pcs
Packaging Details:	Wooden box
Payment Terms:	L/C, D/A, D/P, Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty:

1 Year

Compliance:

Control System:

PLC

User Interface:

Touch Screen Software

Driver:

Servo Motor

Transmission:

Bearings And Screw

Supply Ability:

100 pcs/month

Highlight:

PLC controlled battery stacking press

prismatic cell stacking machine

battery pack production press

Product Description

Prismatic Battery Cell Stacking and Pressing Machine

Product Specifications

Attribute	Value
Warranty	1 year
Compliance	CE
Control system	PLC
User interface	Touch screen software
Driver	Servo motor
Transmission	Bearings and screw

Product Description

Guangdong Xwell Technology Co., Ltd.

Guangdong Xwell Technology Co., Ltd. is a comprehensive company with 21 years of experience in the new energy battery industry. To create more economic value and offer one-step service, we combine all knowledge and resources to provide complete solutions in the battery industry, including battery laboratory equipment, battery production equipment, battery pack equipment, laser welding machines, plastic ultrasonic welding machines, metal ultrasonic spot welding machines, wire ultrasonic welding machines, and most accessories. We have exported to more than 60 countries worldwide in the past 10 years and have passed CE safety certification. With rich technology and capital resources, we emphasize new product innovation, introducing at least one new machine design annually. Creating value for customers first is our path to achieving self-worth. We look forward to cooperating with you!

Equipment Parameters

External dimensions (L×W×H): 1931mm × 750mm × 1500mm (subject to actual conditions)

Equipment weight: About 180Kg

Equipment appearance color: Computer white (adjustable according to requirements)

Total power: ≤1.5KW

Equipment Performance Parameters

Applicable battery model: Prismatic cell: 100Ah-280Ah

Module compatible size specifications: Length: 200-900mm, Width: 100-320mm, Height: 80-250mm

Probability of equipment damage to products: ≤0.1%

Equipment program control method: PLC control

Capacity speed: ≥8ppm (Specific depends on manual operation)

NG equipment failure rate: ≤1% (Malfunctions caused solely by equipment)

Squeeze pressure range: 0-500kg (Squeezing reaches the set upper limit value, with a red buzzing light alarm function)

Squeeze stroke range: 0-110mm adjustable

Pressure gauge accuracy: 0.1%

Squeezing and moving repeated positioning accuracy: ±0.05mm

Real-time monitoring: Extrusion distance and extrusion pressure dual protection, each parameter adjustable through PLC

Equipment Environmental Conditions Requirements

Ambient temperature: 5ºC-35ºC

Humidity: 20%-90%

Air Pressure: 0.5～0.6 Mpa

Supply voltage: 220V-50Hz/60Hz

Area to weight ratio: ≤200kg/M²

Stacking Machine Specification

Item	Name	Parameter
1	Model	XW-PC10
2	Max travel	1000mm
3	Control system	PLC
4	User interface	Touch screen software
5	Driver	Servo motor
6	Transmission	Bearings and screw
7	Pressure measure	High precision pressure sensor
8	Position accuracy	0.01mm
9	Pressure accuracy	0.1kg
10	Power supply	AC220V/50Hz
11	Power	2KW
12	Size	15005001500mm
13	Weight	200kg

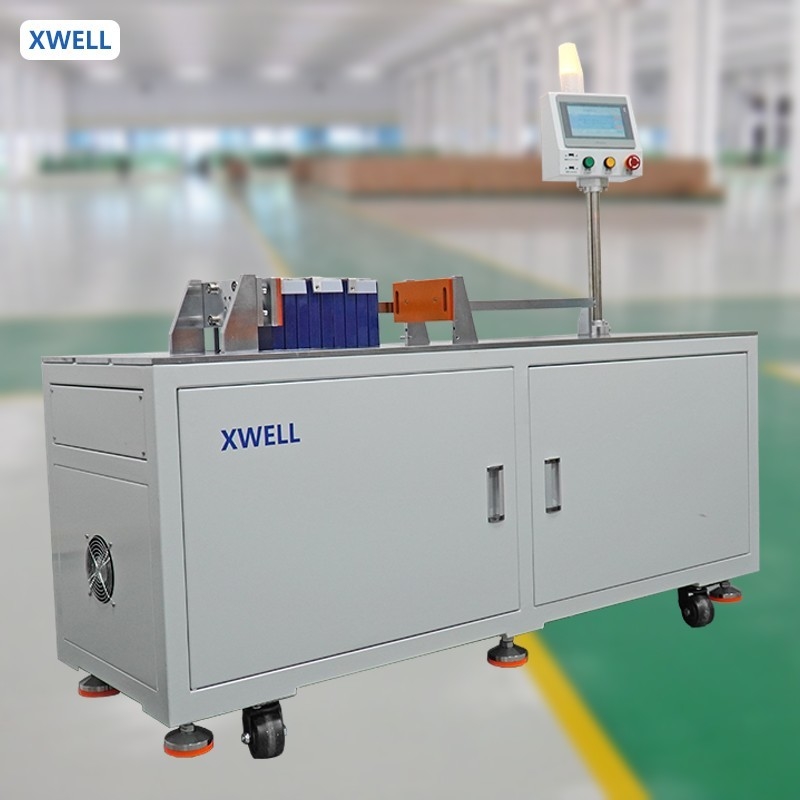

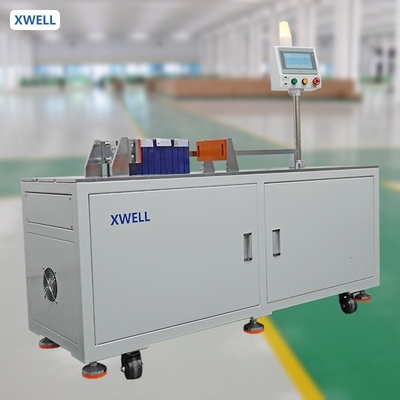

Product Images

Frequently Asked Questions

Q1: Are you a factory or trading company?

A: We are professional battery machine manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q3: Where can I get the price?

A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.

Q4: What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5: How about your delivery time?

A: Generally, it will take 15-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6: Do you test all your goods before delivery?

A: Yes, We have professional QC team to make sure that the product in good condition before send out the goods.

Q7: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
