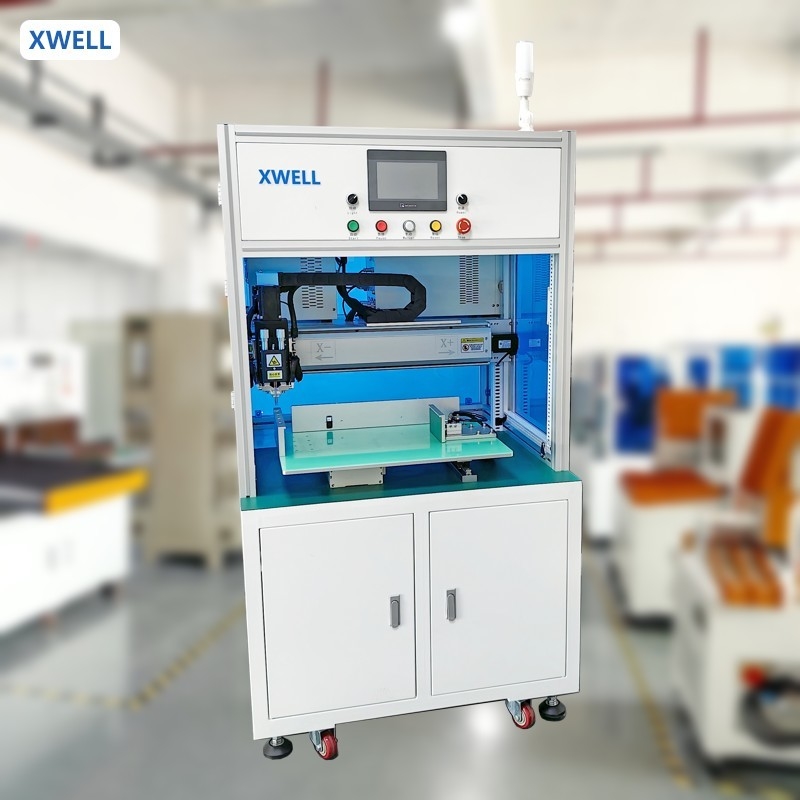

Cylindrical Battery Single Side Spot Welding Machine For E-Vehicles
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Certificate: | CE ROHS Certificate | Welding Power Supply: | 5000A Or 8000A Or 10000A Optional |
|---|---|---|---|
| X Y Axis Stoke: | 400 Mm * 400 Mm | Maximum Speed Of Motor Drive: | 300-1000 Mm/s |
| Electric Current: | DC | Welding Mode: | Inverter DC |
| Spot Welding Speed: | 0.35 S / Spot; 2800 Pcs/hour | Max Bearing Weight Of Y-axis: | 35KG |
| Max Load Electric Cores: | X Direction: 26; Y Direction: 26 | Power: | 4000 W |
| Highlight: | Cylindrical Battery Spot Welding Machine,Cylindrical Battery Single Side Welding Machine,Single Side Spot Welding Machine |
||
Product Description
Cylindrical Battery Single Side Spot Welding Machine For E-Vehicles
Guangdong Xwell Technology Co., Ltd.
Guangdong Xwell Technology Co., Ltd. is a comprehensive company, have 21 years experience in new energy battery industry. inorder to create more economic and offer theone-step service, we collect all the know ledgeand resource to service our customers with complete solution in battery industry in our field including the battery laboratory equipment,battery production equipment, battery pack equipment, laser welding machine, plastic ultrasonic welding machine, metal ultrasonic spot welding machine, wire ultrasonic welding machine, and most of the accessories, and we hadexported them to more than 60 countries all over theworld in the past 10 years. We have passed CE safety certificated system. With rich technology and capital resource, we pay high attention to the new productin novation. Every year we have at least one new designmachine. Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
Application:
Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc. Please feel free to contact us for more details about EV Car Battery Assembly.
Features
.Using Motion Controller, Support arrays and non-arrays Rapid Programming for Simple Operation of Battery Pack.
2.Self-contained current welding alarm,Effective solution rosin joint.
3.Welding head rotation Effective solution Sticking Needle Problem of Nickel Plate and Pure Nickel Plate for Battery.
4.Welding needle compensation function Water-cooled heat dissipation system,Reducing the loss of welding needles.
Features
.Using Motion Controller, Support arrays and non-arrays Rapid Programming for Simple Operation of Battery Pack.
2.Self-contained current welding alarm,Effective solution rosin joint.
3.Welding head rotation Effective solution Sticking Needle Problem of Nickel Plate and Pure Nickel Plate for Battery.
4.Welding needle compensation function Water-cooled heat dissipation system,Reducing the loss of welding needles.
Product Specification
| Model | MD-ASW |
| X-axis travel | 400mm |
| Y-axis travel | 400mm |
| Spot welding speed | 0.5s / point; 1800pcs / h |
| Maximum speed of motor drive | 300-1000 mm/s |
| Number of groups for storing files | 99 groups |
| Operating system | Embedded system + man-machine screen |
| Transmission | Stepper + imported precision linear guide (optional servo + screw) |
| Power supply | Single-phase 220V ± 10% / 50Hz ± 10% |
| Power | <1500w |
| Air supply | 0.2 ~ 0.6Mpa |
| Weight | 200KG |
| Dimensions | About 900mm*900mm*1750mm |
Product Application
Applicable to electric vehicle battery pack, street lamp battery pack, automobile battery module, balance vehicle battery pack, scooter battery pack, mobile power supply, starting battery pack module, power tool battery pack, notebook battery pack, various electronic products and other battery combinations!
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Battery spot welder details
Factory show
