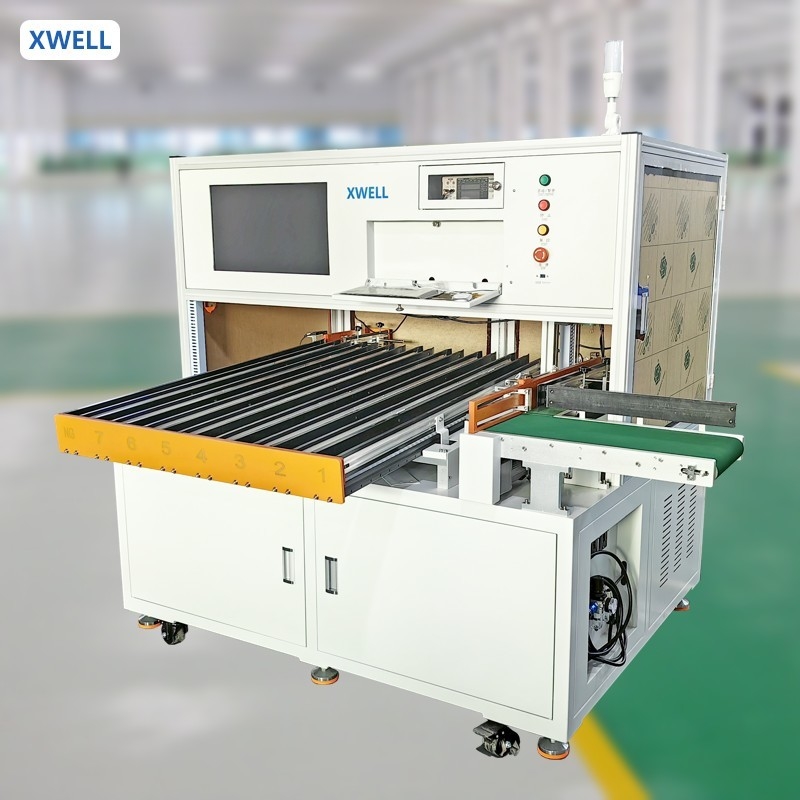

High Accuracy 8 Channel Sorting Machine For Prismatic Cell

Brand Name:	XWELL
Model Number:	XW-BPS08
MOQ:	1pcs
Price:	USD 10000 - 15000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Payment:

L/C D/A D/P T/T Western Union

Delivery Time:

7 Days

Input Voltage:

AC220V/50Hz

Speed:

600 Pcs/h

Test Parameter:

AC Internal Resistance, Open DC Voltage

Power:

<1000W

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

High Accuracy 8 Channel Sorting Machine

Prismatic Cell 8 Channel Sorting Machine

Product Description

8 Channel Sorting For Prismatic Cell

1. Equipment structure

It is composed of manual operation platform / voltage testing mechanism / internal resistance testing mechanism / code scanning testing mechanism / side voltage testing mechanism / main control mechanism and other devices.

2. Equipment action process

Manually put the battery on the feeding test bench, and automatically enter the test station through the platform to test the voltage, internal resistance and code scanning; The thickness measuring mechanism presses down to measure the thickness; After the detection, the PLC sorts according to the preset sorting conditions and the indicator light is turned on. The edge voltage test needle interlocks to puncture the aluminum film and test the positive and negative electrode ears; Finally, manually classify the batteries according to the test data.

Prismatic Battery Cell Sorting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Prismatic cells
Receiving Channel	8 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	600 pcs/h
Weight	<300KG
Dimension	2250mm(L)1200mm(W)1630mm(H)
Tester	HK3561, BT3562
Productivity	600 pcs/h

Prismatic Battery Cell Sorting Machine Details

High Accuracy 8 Channel Sorting Machine For Prismatic Cell 0

High Accuracy 8 Channel Sorting Machine For Prismatic Cell 1
