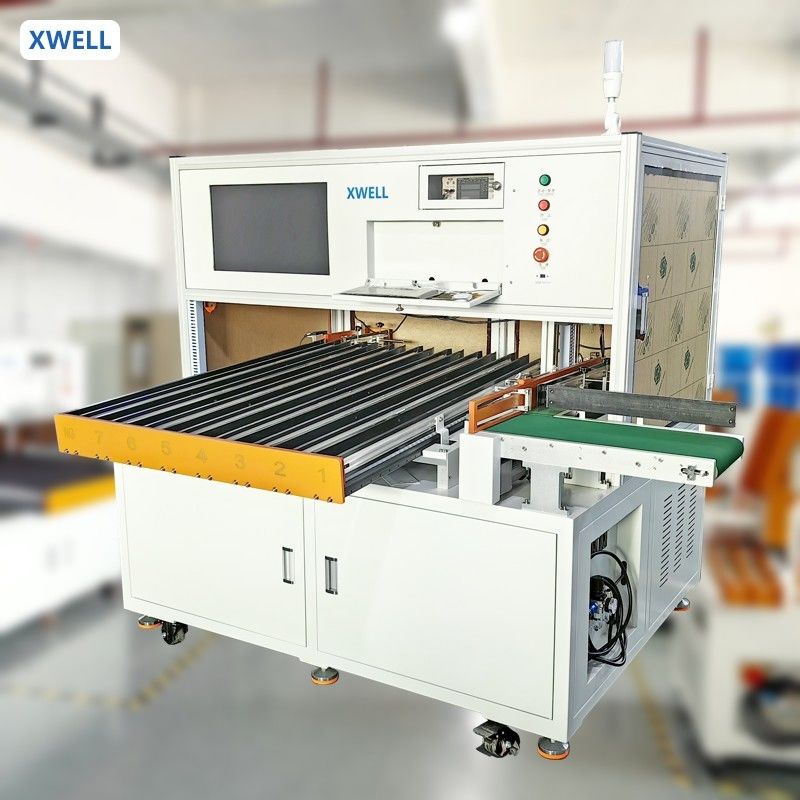

Automatic Sorting Machine For Prismatic Battery Production

Brand Name: XWELL
Model Number: XW-BPS08
MOQ: 1pcs
Price: USD 10000 - 15000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
7 Days
Input Voltage:
AC220V/50Hz
Speed:
600 Pcs/h
Test Parameter:
AC Internal Resistance, Open DC Voltage
Power:
<1000W
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

Prismatic Battery Sorting Machine

,

Accurate Automatic Sorting Machine

Product Description

Automatic Sorting Machine For Prismatic Battery Production



1. Equipment application

This equipment is designed to test the internal resistance and voltage of prismatic battery and conduct manual sorting after PLC automatically judges the sorting grade, and scan the code to read the capacity; Test the side voltage; Test the thickness of the electric core; And connect all data to MES system. The fixture is manually placed on the mobile fixture, and after the battery is placed, click the duplex control button with both hands, and the fixture will automatically move to the preloading position to complete the inspection process. Finally, it will be manually taken and manually operated in a reciprocating cycle, Continuous production can be realized (the test function includes code scanning and reading capacity; test voltage and internal resistance and record them in the QR code; test edge voltage to distinguish ng; secondary test OCV and software to distinguish; cell thickness measurement and upload to the corresponding bar code; all data are uploaded to the MES system).







Prismatic Battery Cell Sorting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Prismatic cells
Receiving Channel 8 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 600 pcs/h
Weight <300KG
Dimension 2250mm(L)*1200mm(W)*1630mm(H)
Tester HK3561, BT3562
Productivity 600 pcs/h



Prismatic Battery Cell Sorting Machine Details



Automatic Sorting Machine For Prismatic Battery Production 0



Automatic Sorting Machine For Prismatic Battery Production 1
