8 Channels Battery Sorting Machine For Prismatic

Brand Name:	XWELL
Model Number:	XW-BPS08
MOQ:	1pcs
Price:	USD 10000 - 15000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Compliance:

CE Certified

Warranty:

One Year Warranty

Input Voltage:

AC220V/50Hz

Speed:

600 Pcs/h

Test Parameter:

AC Internal Resistance, Open DC Voltage

Power:

<1000W

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

8 Channels Battery Sorting Machine

Prismatic Battery Sorting Machine

Product Description

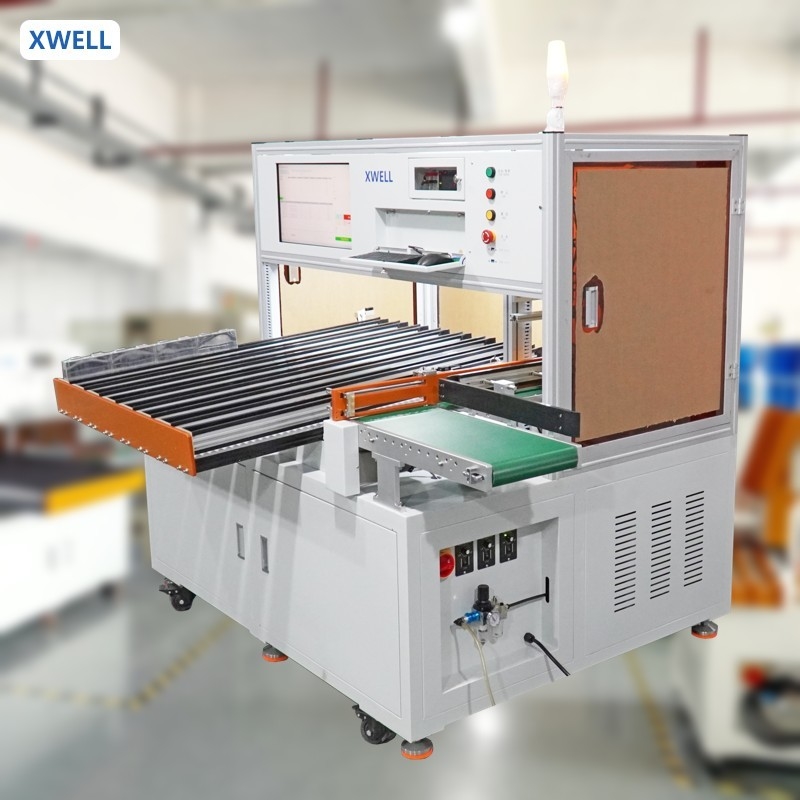

8 Channels Battery Sorting Machine For Prismatic

Description

This prismatic battery cell sorting machine adopts stepping belt transmission structure, professional voltage internal resistance tester discrimination, single channel test, horizontal moving module mobile sorting, horizontal moving module mobile safety interlock induction, so as to ensure the normal operation of the manipulator safely and reliably.

Specifiction

1. Configuration requirements
Power supply: 220V ± 10%~50Hz; Power: 6.0KW (provided by the user)
Compressed air source: ≥ 0.6Mpa 30L/s (utilization rate 50%)
Environmental temperature: 20-50 ℃
2. Equipment production capacity: 500~600 units/hour

Prismatic Battery Cell Sorting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Prismatic cells
Receiving Channel	8 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	600 pcs/h
Weight	<300KG
Dimension	2250mm(L)1200mm(W)1630mm(H)
Tester	HK3561, BT3562
Productivity	600 pcs/h

Prismatic Battery Cell Sorting Machine Details

8 Channels Battery Sorting Machine For Prismatic 0

8 Channels Battery Sorting Machine For Prismatic 1
