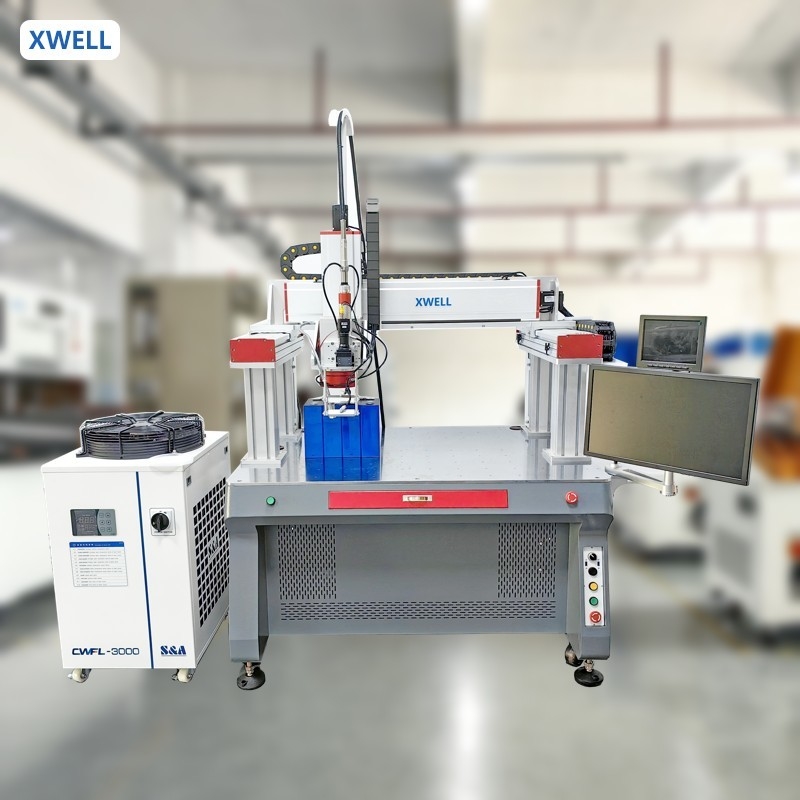

1000W Laser Welding Machine For Battery Pack Welding
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-1000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 22000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Origin: | China | Compliance: | CE Certified |
|---|---|---|---|
| Controlystem Brand: | PASSION LASER | Model: | XW-1000W |
| Advantage: | Welding Precision | Axis Number: | 4 Axis |
| Laser Power: | 1000W 1500W 2000W 3000W | Maximum Depth Of Weld: | 2 - 3 Mm |
| Electricity Demand: | 220V/380V±5V50Hz/40A | ||
| Highlight: | Battery Pack Laser Welding Machine,1000W Laser Welding Machine,1000W Battery Laser Welding Machine |
||
Product Description
1000W Laser Welding Machine For Battery Pack Welding
Main feature:
1. The photoelectric conversion efficiency can reach 40%, and the power consumption is low;
2. Continuous 3000W pure fiber laser, which can penetrate 3mm materials for direct welding;
3. Precise servo system control to ensure welding accuracy.
Product functional characteristics:
1. Independent research and development design, high precision of machine tool. Having long service life with stability and reliability;
2. Equipped with high-response and high-precision servo motor;
3. International first-class quality fiber laser, many years of industrial application, long service life and maintenance free;
4. High-precision laser welding head, imported optical lens, fine focus, convenient adjustment, perfect welding;
5. The operation of the numerical control system is simple and easy to learn, and the requirements for the operator are low;
6. Welding mode input in various formats, powerful drawing and editing graphics functions;
7. Special welding software, welding process expert, data saving and calling function.
CCD Camera Display
Display on a video display by connecting the device. Claer welding point.
X.Y.Z Axis guide rail
With the function of moving up and down, it can weld irregular products. The Z axis has brake function.
Large-stroke gantry has a larger welding range.
Argon gas blown out of the air pipe doesn't damage to material surface
Water Cooling Machine
Equipped with with 1.5P chiller. it can meet the requirements for a long time. High power welding is more stable.
Standard cabinet, four-axis travel.
With different water machines and different welding heads, the stroke and welding effect will be different.
Desktop welding and handheld welding, multifunctional machine. One machine with multiple functions, customized fixtures, and multiple customized welding stations, work faster and more accurately.
Raycus Laser source
1000W—220V
1500W—380V
2000W—380V
MAX Laser source
1000W—220V
1500W—380V
2000W—380V
JPT Laser source
1000W—220V
1500W—380V
2000W—380V
Laser machine parameters
|
Device name / model
|
XW-1000W
|
XW-1500W
|
XW-2000W
|
|
Maximum laser power
|
1000W
|
1500W
|
2000W
|
|
Laser type
|
fiber-optic laser
|
||
|
Laser wavelength
|
1080±5
|
||
|
Sport mode
|
continuous
|
||
|
Adjust frequency
|
1000HZ
|
||
|
Thickness of welding material(dependingonthematerial)
|
≤4.0 mm
|
≤6.0mm
|
≤8.0mm
|
|
Fiber core diameter
|
5-7(50μm)
|
||
|
Fiber length
|
10m-20m
|
||
|
Spectroscopy
|
Precision energy splitting or high-speed time splitting
|
||
|
Light mode
|
Red light
|
||
|
Welding gun head
|
Youmir/WSX
|
||
|
Total power
|
8KW
|
6KW
|
12KW
|
|
Chiller cooling power
|
1.5P
|
|
|
|
Cooling method Water-cooled ambient temperature
|
20℃-40℃
|
|
|
|
electricity demand
|
220V/380V±5V50Hz/40A
|
|
|
|
Dimensions / net weight
|
Host computer:
|
139*139*186CM
|
407kg
|
|
cooling-water machine:
|
79*56*108CM
|
93.5kg
|
|
|
Comparison project
|
Argon arc welding
|
YAG laser welding
|
Continuous laser welding
|
|
Heat input
|
Very high
|
Low
|
General
|
|
Deformation, undercut
|
Big
|
Small
|
Small
|
|
firmness
|
It is good
|
General
|
It is good
|
|
Follow-up
|
Polishing
|
Slightly polished or not polished
|
Slightly polished or not polished
|
|
Welding speed
|
General
|
More than 2 times argon arc welding
|
More than 2 times argon arc welding
|
|
Applicable material
|
Stainless steel, carbon steel, galvanized sheet, aluminum, copper
|
Stainless steel, carbon steel, galvanized sheet, aluminum, copper, nie, gold, silver
|
Stainless steel, carbon steel, galvanized sheet, aluminum, copper, Nie
|
|
Consumables
|
More consumables
|
General supplies
|
Less consumables
|
|
operating
|
Complex
|
General
|
Simple
|
|
safety
|
Unsafe
|
Safety
|
Safety
|
|
surroundings
|
Not environmentally friendly
|
Environmental protection
|
Environmental protection
|
|
Fault tolerance
|
It is good
|
It is good
|
It is good
|
|
Swing welding
|
No
|
No
|
Have
|
|
Spot width
|
No
|
0.1-3MM
|
0.1-5MM
|
|
Welding quality
|
Difference
|
General
|
Well
|
|
Argon consumption
|
15PSI
|
30PSI
|
40PSI
|
|
Melting depth
|
High
|
low
|
High
|
|
Applicable thickness
|
2-10MM
|
0.2-3MM
|
0.2-5MM
|
|
Radiation
|
High
|
No
|
No
|
