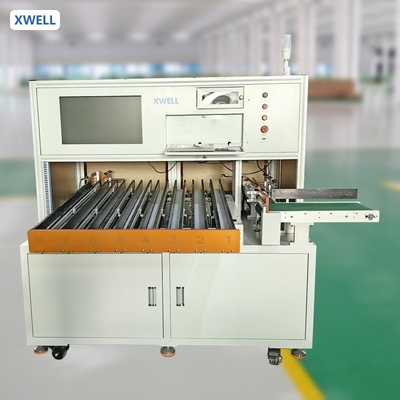

Accurate 8 Channels Prismatic Cell Battery Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Origin: | China | Brand: | XWELL |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 Pcs/h |
| Test Parameter: | AC Internal Resistance, Open DC Voltage | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Prismatic Battery Cell Sorting Machine,8 Channels Battery Cell Sorting Machine,Prismatic Cell Sorting Machine |
||
Product Description
8 Channels Prismatic Cell Battery Sorting Machine
Description
XW-BPS08 Prismatic battery cell sorting machine is a 8 channels automatic sorting machine with the function of automatic code scanning, automatic testing, automatic sorting of internal resistance and voltage. With high-precision internal resistance and voltage automatic testing system, the equipment according to the internal resistance, voltage value set in the software to accurately send the battery to the specified channel, the system can realize up to 8 levels of sorting. This equipment can test about 600 pieces of battery cells per hour, and the structure design is simple and generous, stable performance, simple operation, cost-effective sorting equipment.
Parameter
1)Power supply: 220V±10%/50Hz±10%
2)Power:2000W
3)Air source:0.5～0.6Mpa
4)Weight:350 KG；
5)Dimension:L1800mm*W1200mm*H1600mm；
6)Use of the environment: Please avoid the use of this equipment in high temperature, high humidity, vibration or shock, metal powder, welding spatter more places, pay attention to the control of the ambient temperature around the equipment; equipment must be grounded and separate from the personnel
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |
Prismatic Battery Cell Sorting Machine Details
