Mainly used for a variety of square shell battery voltage, internal resistance detection, discrimination gear, upload data to the database, and other main functions;Manual loading and unloading.

Specifiction

*Power source: 220V±10% ~ 50Hz; Power: 6.0kW (user provided)

*Compressed air source: ≥ 0.6mpa 30L/s (utilization rate 50%)

*Ambient temperature: 20-50℃

*Equipment capacity: 500 / hour ~600 / hour

Prismatic Battery Cell Sorting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Prismatic cells
Receiving Channel	8 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	600 pcs/h
Weight	<300KG
Dimension	2250mm(L)1200mm(W)1630mm(H)
Tester	HK3561, BT3562
Productivity	600 pcs/h

Prismatic Battery Cell Sorting Machine Details

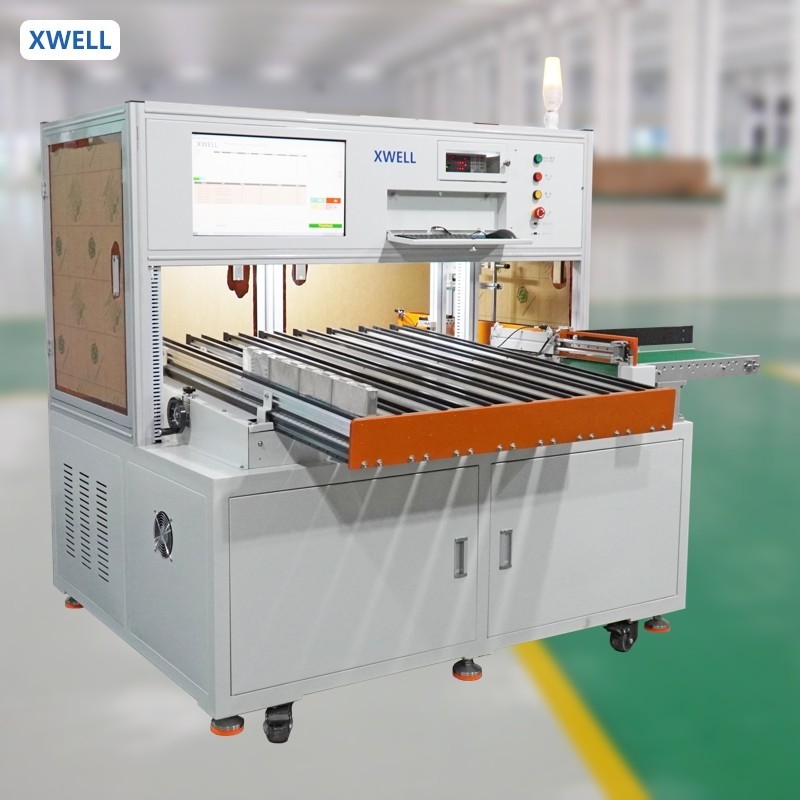

Lithium Battery Prismatic Cell 8 Channels Automatic Sorting Machine 0

Lithium Battery Prismatic Cell 8 Channels Automatic Sorting Machine 1
