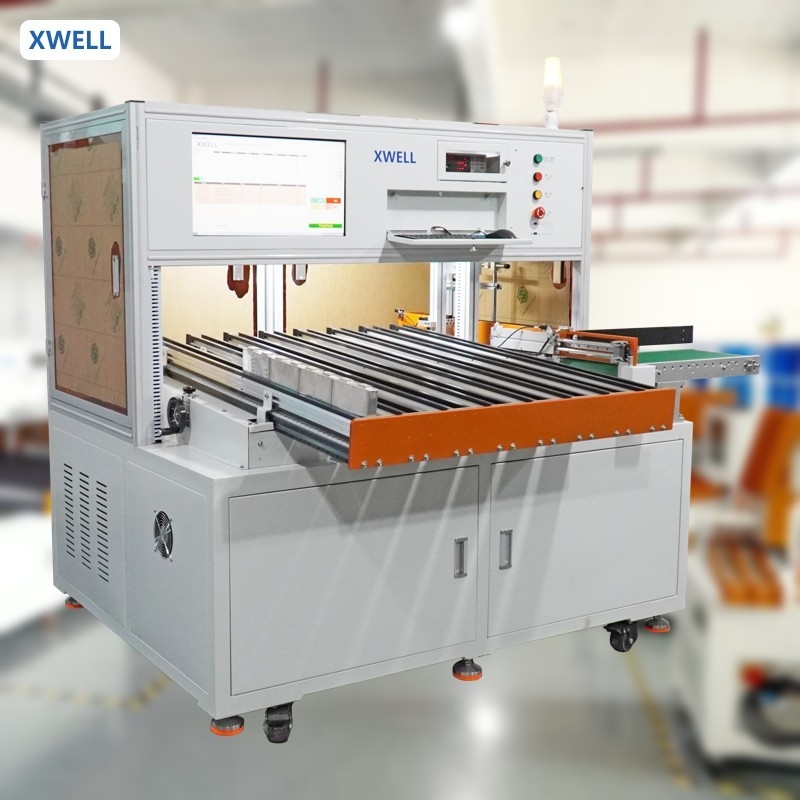

8 Channel Prismatic Cell Sorting Machine IR Tester With 0.01 Milliohm Display Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Compliance: | CE Certified | Warranty: | 1 Year |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 Pcs/h |
| Test Parameter: | AC Internal Resistance, Open DC Voltage | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | IR Tester Cell Sorting Machine,8 Channel Cell Sorting Machine,Prismatic Cell Sorting Machine |
||
Product Description
8 Channel Prismatic Cell Sorting Machine IR Tester
I. Equipment functional characteristics:
*The equipment includes brand computer, software system, precision voltage internal resistance measuring instrument, code scanning mechanism, batch loading device, automatic grading of manipulator, automatic blanking and other devices.
*According to the AC internal resistance, open circuit voltage and other parameters of lithium batteries, the batteries are accurately graded and grouped according to various performance parameters. The maximum number of graded pairs at one time is 8, which improves the consistency of pack battery quality and paired cell performance.
III. Description of equipment technical parameters:
*Power supply: 220V, 0.5KW.
*Air source: 0.5 ～ 0.6 Mpa (dry air).
*Separation efficiency: ≥ 10PPM.
*Product qualification rate: ≥ 99%.
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |
Prismatic Battery Cell Sorting Machine Details
