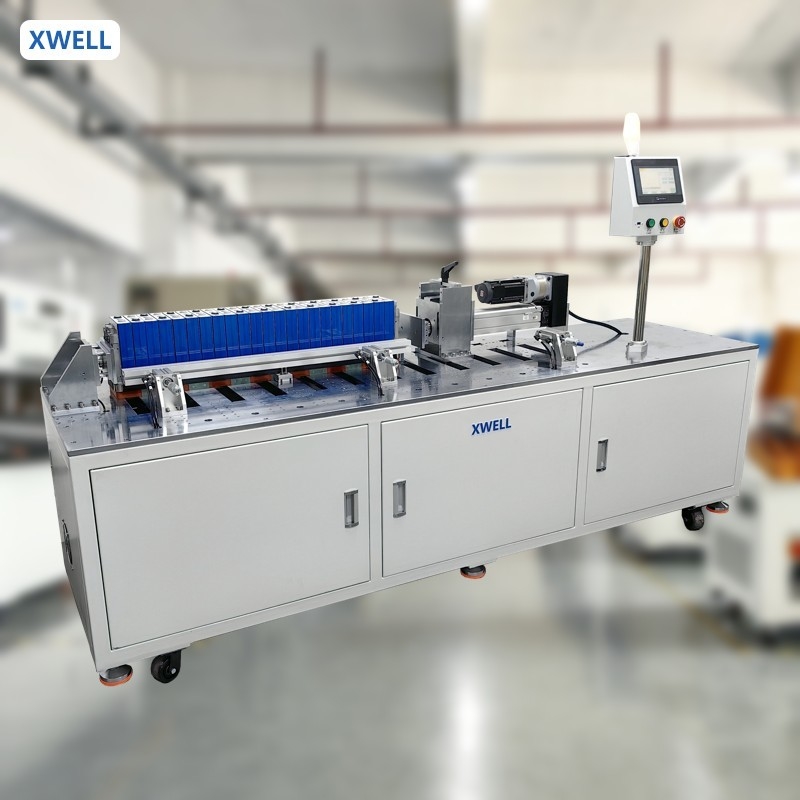

Prismatic Lithium Battery Cell Stacking And Pressing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-PC10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability: | 100 pcs/month |
|
Detail Information |
|||
| Warranty: | One Year | One Year: | T/T |
|---|---|---|---|
| Control System: | PLC | User Interface: | Touch Screen Software |
| Driver: | Servo Motor | Transmission: | Bearings And Screw |
| Presssure Measure: | High Prcession Pressure Sensor | Position Accuracy: | 0.01mm |
| Highlight: | Prismatic Lithium Battery Cell Pressing Machine,Prismatic Lithium Battery Cell Stacking Machine |
||
Product Description
Prismatic Lithium Battery Cell Stacking And Pressing Machine
Description
XW-PC10 is for prismatic battery cell stacking extruder is suitable for prismatic lithium batteries to be stacked and extruded into shape and bundling machine. It adopts servo motor+screw module+planetary reducer for stacking and extruding, controlled by pressure controller, the extrusion stacking thrust reaches more than 100KG, easy to operate, it can control the stacking and extruding stroke and stacking pressure in time, with the triple protection function of software limitation, hardware limitation, and pressure limitation, which won't be over-extruding the batteries and has high controllability in the precision of extruding.
Features
- 7-inch touch screen with PLC for control, easy to operate.
- Adapt to various size of batteries, can be edited and set different parameters, simple and easy to change the type.
- Built-in high-precision pressure sensor, pressure accuracy control within 0.1KG.
- Adopting screw module + servo motor + reducer for control, with large extrusion output force and high positioning accuracy.
Stacking machine specification
| Item | Name | Parameter |
| 1 | Model | XW-PC10 |
| 2 | Max travel | 1000mm |
| 3 | Control system | PLC |
| 4 | User interface | Touch screen software |
| 5 | Driver | Servo motor |
| 6 | Transmission | Bearings and screw |
| 7 | Pressure measure | High precession pressure sensor |
| 8 | Position accuracy | 0.01mm |
| 9 | Pressure accuracy | 0.1kg |
| 10 | Power supply | AC220V/50Hz |
| 11 | Power | 2KW |
| 12 | Size | 1500*500*1500mm |
| 13 | Weight | 200kg |
Stacking machine details
